Blackmagic Design 2110 IP MINI IP to HDMI SFP

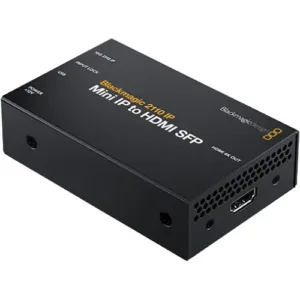

Blackmagic 2110 IP MINI IP to HDMI SFP facilitates the connection of large-screen televisions, video projectors, and computer monitors to optical fiber-based SMPTE-2110 IP systems. Its compact design allows for discreet mounting behind the display unit. It is compatible with all SD, HD, and Ultra HD video standards up to 2160p60. Equipped with a standard SFP socket, it accommodates a 10G optical fiber Ethernet module, enabling connectivity over long distances. Additionally, it supports 3G, 6G, and 12G optical fiber SDI models for seamless integration with standard SDI video formats. Power is supplied via the included 12V DC power adapter.

Blackmagic Design offers a diverse array of SMPTE-2110 IP video solutions, ranging from converters and video monitors to audio monitors and cameras. These products are compatible with Ultra HD via affordable 10G Ethernet connectivity. Most converter models are bi-directional, making them ideal for providing an additional program return when needed, particularly for cameras. The rack-mount variants feature a sleek design equipped with a color LCD for monitoring, menus, and diagnostics. All models adhere to the SMPTE ST-2110 standard for IP video, incorporating PTP clocks and NMOS support to facilitate connections using a video router panel.

The Blackmagic 2110 IP Converters are purposefully designed to seamlessly integrate SDI equipment into 2110 IP broadcast systems. The rack-mount models can be conveniently installed in equipment racks alongside the devices being converted. By incorporating these converters, users gain a cost-effective method to transition all their video equipment to SMPTE-2110. Simply integrate a Blackmagic 2110 IP Converter into live production switchers, disk recorders, streaming processors, cameras, televisions, and more.

Blackmagic 2110 IP products adhere to the SMPTE ST-2110 standard for IP video, governing the transmission, synchronization, and description of 10-bit video, audio, and ancillary data across managed IP networks for broadcast purposes. These devices can synchronize SDI inputs to a common PTP clock, or external equipment can synchronize with the reference output also derived from the PTP clock.

Blackmagic 2110 IP Converters come in models equipped with RJ-45 connectors for straightforward Cat6 copper cables or SFP sockets for optical fiber modules and cables. By utilizing basic Cat6 copper cables, users can establish SMPTE-2110 systems at a significantly reduced cost. These cables are uncomplicated, and 10G Ethernet-compatible Ethernet switches are widely available.

A major challenge with SMPTE-2110 is the necessity of having an IT technician available to ensure the smooth operation of video systems. Blackmagic 2110 IP converters address this issue by enabling point-to-point connections, eliminating the need for complex Ethernet switches if users prefer simplicity. This approach enables users to leverage the benefits of SMPTE-2110 IP video using standard Ethernet cables, while also providing features such as remote power and bidirectional video transmission.
