Blackmagic Cloud Store Max 48TB

Tailored for film and television productions requiring seamless collaboration among multiple users, the Blackmagic Cloud Store Max 48TB by Blackmagic Design excels in post-production environments. With a 48TB capacity comprised of NVMe M.2 SSD preconfigured into 12 RAID 0 flash memory cards, it effortlessly handles 12K Blackmagic RAW digital cinema files. Boasting a single 100GbE Ethernet port, four 10GbE Ethernet ports, and a USB-C port with a built-in network adapter, connectivity options abound. Real-time monitoring via HDMI and SDI outputs ensures efficient management of the Cloud Store Max’s status.

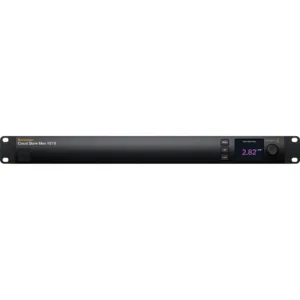

Portable and Quiet Construction of Blackmagic Cloud Store Max 48TB

Crafted with a rackmount design, the Max unit remains portable and discreetly quiet. Occupying a full rack width and housing 12 flash memory cards, alongside 100GbE and 10GbE Ethernet connections, it offers versatility. For swift file access, utilize the USB-C port for direct computer connection. The HDMI and SDI monitoring outputs provide live graphical insights into storage status.

Connectivity Options on Blackmagic Cloud Store Max 48TB

An IEC power socket facilitates AC power connection, complemented by a 4-pin XLR 12V DC power input for redundancy. The USB-C port supports Ethernet for convenient direct computer access. The 100GbE Ethernet port links to high-speed Ethernet switches, boasting a flexible QSFP socket for copper or optical fiber cables.

Four 10GbE RJ45 Ethernet ports enable connectivity with high-speed computers, accommodating four separate edit workstations. HDMI and SDI output connectors facilitate real-time monitoring of Cloud Store status or integration into broadcast trucks, offering insights into storage mapping, speed metrics, sync, active users, and power status.

Flash Memory for Collaborative Work

Equipped with expansive parallel flash memory cores, the Cloud Store Max supports collaborative workflows with multiple users. Featuring 12 M.2 cards organized in a RAID 0 setup, it offers high-capacity performance, accommodating numerous users concurrently. This robust setup ensures seamless operation of HyperDeck recorders and editing workstations with optimal speed.

Sync with Blackmagic Cloud
