Blackmagic Videohub 80×80 12G Zero Latency Video Router VHUBSMAS12G8080

Enable diverse video format compatibility with Blackmagic Design’s Videohub 80×80 12G Zero-Latency Video Router VHUBSMAS12G8080. This sophisticated router offers 80 inputs and 80 outputs, all supporting 12G-SDI, allowing seamless routing of various video formats, including SD, HD, UHD 4K, and DCI 4K. By consolidating all your SDI connections into one hub, the Blackmagic Videohub 80×80 12G  VHUBSMAS12G8080 simplifies the process of connecting any video source to any display, even distributing a single input to multiple outputs, eliminating cable clutter and intricate diagrams. This versatile unit is suitable for numerous applications, from redundant mastering with multiple HyperDeck recorders to routing video to multiple streaming processors for various broadcasting platforms or expanding inputs for an ATEM switcher.

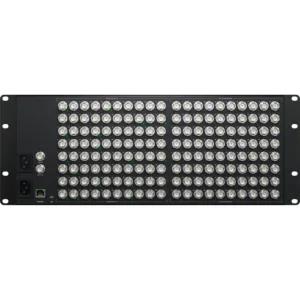

12G-SDI Multi-Rate Connections of Blackmagic Videohub 80×80 VHUBSMAS12G8080

• You can utilize multi-rate 12G-SDI connections to route 80 various video standards concurrently with VHUBSMAS12G8080.
• It accommodates DCI 4K60 video resolutions.
• It offers 4:2:2 color routing in 8 or 10-bit across all standards.
• It is compatible with 4:4:4 12-bit SDI at DCI 4K30, suitable for feature films.

SDI Reclocking

VHUBSMAS12G8080 has a Signal Reclocking occurs on each 12G-SDI input, ensuring optimal video quality, minimizing signal degradation, and mitigating issues like jitter in extended cable runs.

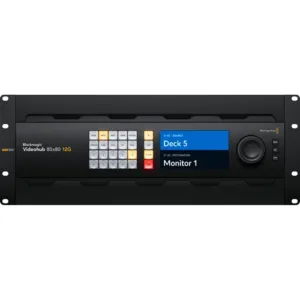

Front Panel Functionalities

The streamlined front panel of VHUBSMAS12G8080 provides numerous control possibilities, featuring buttons for customizable shortcuts, as well as In, Out, Clear, and Take functions. Additionally, the precision of the machined metal spin knob is enhanced by an electronic clutch for accuracy in control.

Functional Control Panel of Blackmagic Videohub 80×80

It can be employed alongside optional hardware panels to simplify control in extensive facilities where components are spread out. It works seamlessly with both the VHUBSMAS12G8080 Videohub Master Control Pro and the Videohub Smart Control Pro.

Versatile Software Control

The Videohub Software Control, compatible with both Mac and Windows, offers user-friendly touchscreen router management.

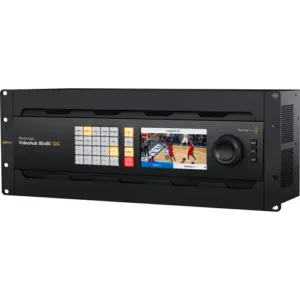

Builtin LCD Screen

• VHUBSMAS12G8080 has Preview your live input on the integrated 5-inch LCD display before directing the signal.
• Utilize bottom labels to navigate through your sources alphabetically.
• This eliminates the necessity for an external SDI monitor in your configuration.

Setup Utility and SDK

You can commence by utilizing the VHUBSMAS12G8080 Videohub Setup software, or opt for the SDK to incorporate protocol compatibility for broadcast automation systems.

Multiple Language Support

Customized support is available in:

• English, Chinese, Japanese, Korean
• Spanish, German, French, Russian
• Italian, Portuguese, Turkish, Polish, Ukrainian
