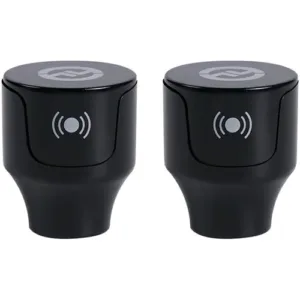

The built-in wireless transmitter and receiver inside Hollyland Mars M1 enable seamless video exchange between M1 units and Mars 400S Pro, Mars 300 Pro, and Mars 4K wireless transmitters/receivers, covering distances of up to 450′. Monitoring via smartphones and tablets is possible using the HollyView app.
- Transmit and receive wirelessly
- 5.5″ touchscreen display
- Supports DCI/UHD 4K30 video input
- HDMI loop output and SDI input
- HollyOS firmware with imaging tools
- L-series battery plate and DC input for power
- DC power output for camera or gear

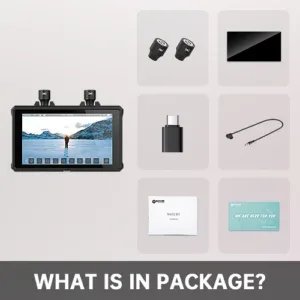

Enhance your video monitoring and transmission with the Mars M1 Enhanced kit.
Professional Color Calibration Display

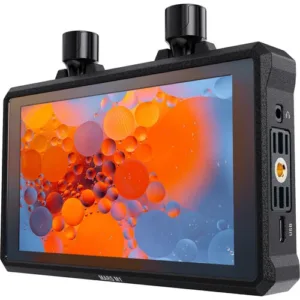

The Mars M1 Enhanced incorporates a 5.5″ touch LCD screen with a 1920 x 1080 resolution and an impressive brightness of 1000 cd/m². It undergoes professional color calibration during production and offers multi-level color temperature adjustments. The screen adheres to the Rec. 709 color gamut for exceptional color accuracy, features a 16:9 aspect ratio, and can display 16.7 million natural colors.
Compatibility of Hollyland Mars M1
The Mars M1 Enhanced is a versatile all-in-one device, serving as both a transmitter and receiver. It facilitates transmission between two M1 units and is compatible with Mars 300 Pro, Mars 400S Pro, and Mars 4K models, in addition to smartphones and tablets via the HollyView app.
Input and Outputs of Hollyland Mars M1

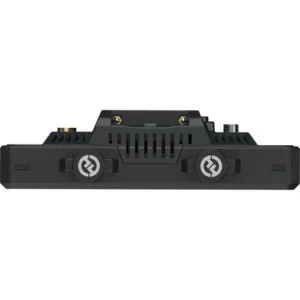

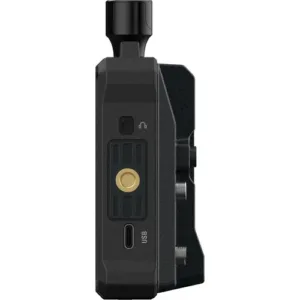

The Mars M1 Enhanced is equipped with an HDMI input, HDMI loop output, a 3G-SDI input, and a 3.5mm headphone output.
Transmit and Receive Videos Wirelessly through Hollyland Mars M1
The Mars M1 Enhanced offers versatile connectivity by accommodating DCI/UHD 4K30 HDMI input and output, expanding its compatibility range. Its SDI capability enhances frame rate flexibility, aligning with various broadcast and production standards throughout the production and post-production processes.
Recording and Playback Controls on Hollyland Mars M1
The Mars M1 Enhanced is designed for automatic triggered recording and convenient video playback. You can review your videos anytime and anywhere to ensure they are of the highest quality. The video recording feature allows for a maximum of two minutes of recording. Please note that the recorded video cannot be exported and will be erased when the device is powered off or when a new recording begins.
3D LUT File Import
You have the option to choose from a range of 3D LUT presets to calibrate the Mars M1 colors for a consistent, top-tier result. Additionally, you can upload your personalized LUTs.
Smart Channel Scan
Smart Channel Scan enables you to find the interference-free option for a stable connection experience. The optimum channel is selected automatically upon startup.
Transmission distance of Hollyland Mars M1 is up to 450.
Fueled by Hollyland’s HollyOS operating system, the Mars M1 Enhanced introduces an extensive range of advanced monitoring features. These include waveform, vectorscope, zebra pattern, aspect mark, anamorphic de-squeeze, crosshatch, and numerous others. Each of these tools empowers you with precise image control, enabling you to customize every frame to your exact specifications.
Power Options of Hollyland Mars M1

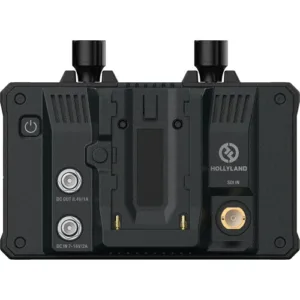

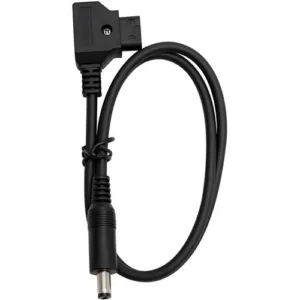

The Mars M1 Enhanced accommodates three different power sources: it can be powered with 7 to 16 VDC, L-series (NP-F970/750/550) batteries (which are sold separately), or through a D-Tap connection using an additional power supply.
Monitoring through Application
With the Hollyview app on Android and iOS, monitor transmissions on your mobile device. It enables transmission to apps and receivers and reception from transmitters like Mars 400S Pro or Mars 4K with the following options:
- One Mars M1 Enhanced TX can send signals to two other Mars M1 Enhanced RX sets.
- One Mars M1 Enhanced TX can send signals to one other Mars M1 Enhanced RX set and up to two devices with the HollyView app.
- One Mars M1 Enhanced TX can send signals to four devices using the HollyView app.
- One Mars M1 Enhanced TX can send signals to two other Hollyland Mars 400S Pro/Mars 300 Pro/Mars 4K RX units.
- One Hollyland Mars 400S Pro/Mars 300 Pro/Mars 4K TX unit can send signals to one Mars M1 Enhanced RX set and up to two devices with the HollyView app.

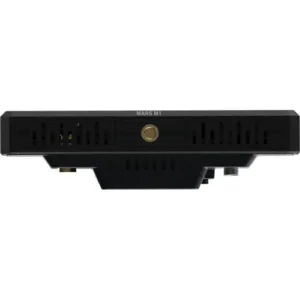

The Mars M1 features a built-in fan with the choice to select Auto or Mute in the menu. Mute mode keeps the monitor working with lower fan noise without affecting video recording.
