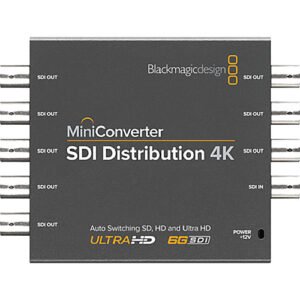

Blackmagic Design SDI Distribution Converter 4K
The Blackmagic Design Converter SDI Distribution 4K from Systec International allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously.
It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format.
With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals.
It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
The Mini Converter’s settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers.
The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
You can also click here.
Additional Features
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards
Find out more here.
