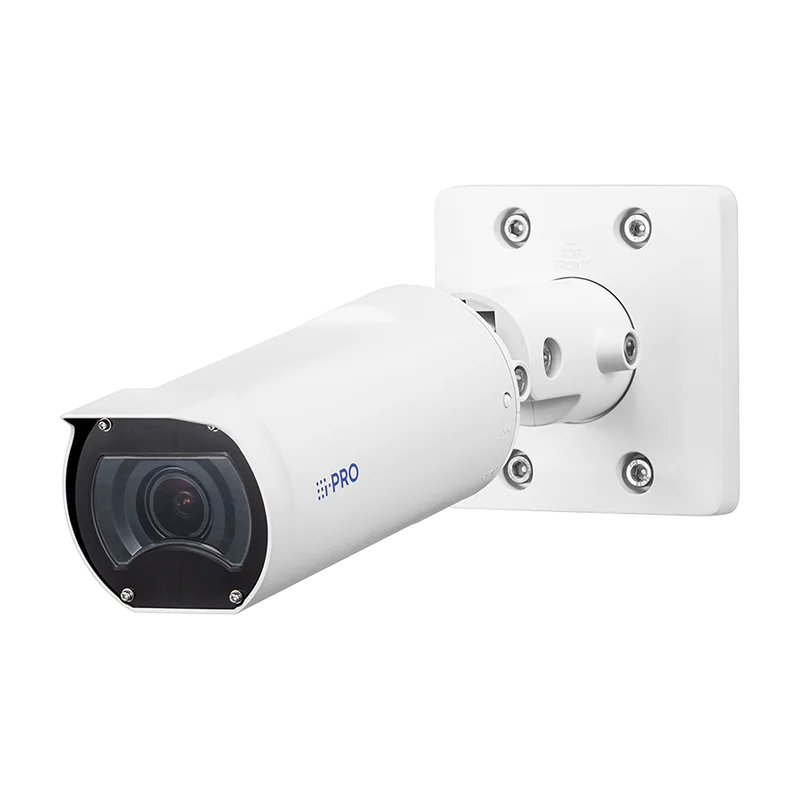

WV-U15350-V3L i-PRO U-series bullet camera with edge AI image analytics

WV-U15350-V3L i-PRO U-series bullet camera with edge AI image analytics

This advanced camera boasts an approximate 1/2.8 type CMOS image sensor with a scanning area of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, providing exceptional performance even in challenging lighting conditions. It delivers a minimum illumination of 0.05 lx in color (30IRE, F1.6, 1/30 s, AGC: 11) and can achieve 0 lx in black and white when the IR LED is active (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On). The powerful IR LED Light offers a substantial maximum irradiation distance of 42 m {Approx. 138 ft} (30IRE) or 30 m {Approx. 98 ft} (50IRE). The camera supports flexible white balance settings including ATW1, ATW2, and AWC.

For precise image capture, the camera offers shutter speeds ranging from 1/30 Fix to 1/10000 Fix for 30 fps mode, and 1/25 Fix to 1/10000 Fix for 25 fps mode. Its maximum shutter speeds are up to 16/30 s for 30 fps mode and up to 16/25 s for 25 fps mode. It is equipped with Intelligent Auto (On/Off) and Super Dynamic (On/Off, range 0 to 31) functions, providing a maximum dynamic range of 120 dB. Further image optimization features include Adaptive Black Stretch (level 0 to 255), Back Light Compensation (BLC) / High Light Compensation (HLC) (On/Off, range 0 to 31, active when Super Dynamic/Intelligent Auto are off), and Fog Compensation (On/Off, range 0 to 8, active when Intelligent Auto/Auto contrast adjust are off). The Maximum Gain (AGC) can be set from 0 to 11. Color/BW (ICR) offers Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), and Auto3 (SCC) modes, while Digital Noise Reduction is adjustable from 0 to 255.

Beyond its imaging capabilities, the camera integrates advanced analytics such as Video Motion Detection (VMD) with 4 available areas, Scene Change Detection (SCD) with 1 area, and Audio Detection with AI Sound Classification for gunshot, yell, vehicle horn, and glass break recognition. It supports a maximum of one AI analytics application, with detailed information available on i-PRO’s website, and is compatible with third-party applications. For privacy, Privacy Zone (up to 8 zones) and VIQS (up to 8 zones) are available. Image Rotation options include 0° (Off), 90°, 180° (Upside-down), and 270°. A customizable Camera Title (OSD) allows for up to 40 characters across 2 lines.

The camera’s lens features a 3.2x motorized optical zoom with motorized focus, and a maximum 9.6x digital (electronic) zoom. Its focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular field of view in 16:9 mode ranges from Horizontal: 31° (TELE) – 114° (WIDE) and Vertical: 17° (TELE) – 58° (WIDE). In 4:3 mode, it covers Horizontal: 23° (TELE) – 80° (WIDE) and Vertical: 17° (TELE) – 58° (WIDE). The maximum aperture ratio varies from 1:1.6 (WIDE) to 1:3.2 (TELE), with a focus range of 2.0m {78-3/4 inches} to infinity and an aperture range of F1.6 to close. The DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 138.5m {454.3ft} (TELE) / 24.9m {81.8ft} (WIDE), Observe at 55.4m {181.7ft} (TELE) / 10.0m {32.7ft} (WIDE), Recognize at 27.7m {90.9ft} (TELE) / 5.0m {16.4ft} (WIDE), and Identify at 13.8m {45.4ft} (TELE) / 2.5m {8.2ft} (WIDE). The adjusting angles allow for Horizontal (PAN) rotation of -180° to +180°, Vertical (TILT) of 0° to +100°, and Azimuth (YAW) of -190° to +100°.

At its core, the camera operates on an Ambarella CV25M System on Chip (SoC). Its browser GUI supports English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, and Japanese, and is accessible via Microsoft Edge, Firefox, and Google Chrome.

For network connectivity, the camera utilizes a 10BASE-T/100BASE-TX RJ45 connector. It supports H.265/H.264 resolution options for 16:9 mode (30fps/25fps) including 1920×1080, 1280×720, 640×360, and 320×180. For 4:3 mode (30fps/25fps), resolutions include 1280×960, 640×480, and 320×240. Transmission priority settings include Constant bit rate, VBR, Frame rate, and Best effort, with Unicast port (AUTO/MANUAL) and Multicast types. It supports 4 simultaneous streams. JPEG (MJPEG) Image Quality is adjustable in 10 steps from 0 (SUPER FINE) to 9 (LOW). Smart Coding features GOP control (Off, Low, Mid, Advanced, Frame rate control, with Advanced and Frame rate control exclusive to H.265), Smart VIQS (On High/Low, Off), and Smart P-picture control (On/Off). Audio compression methods include G.726 (ADPCM) at 16 kbps/32 kbps, G.711 at 64 kbps, and AAC-LC at 64 kbps/96 kbps/128 kbps, with audio transmission modes including Off, Mic (Line) input, Audio output, Interactive (Half duplex), and Interactive (Full duplex).

The camera supports a comprehensive array of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) and IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous users (depending on network conditions) and provides robust security features, including FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, user and digest authentication, Host authentication, IEEE802.1X, system and image transmission logs, brute-force protection, alteration detection, secure boot, and signed firmware. Optional SDXC/SDHC/SD Memory Card support is available for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) and Android™ terminals, and the camera is ONVIF® Profile G, M, S, and T compliant.

Alarm sources include VMD, SCD, Command, and Audio detection, triggering actions such as SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification (with browser indication), and TCP alarm notification output. For audio input, a ø3.5 mm stereo mini jack supports plug-in power type microphones (sensitivity –51 dB to –38 dB, input impedance approx. 2 kΩ, supply voltage 2.5 V ±0.5 V) or line input (approx. -10 dBV). A ø3.5 mm stereo mini jack provides monaural audio output (output impedance approx. 600 Ω, output level -20 dBV).

In terms of general specifications, the camera adheres to high safety standards (UL, c-UL, IEC62368-1 3Ed) and EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). It is powered by PoE (IEEE802.3af Compliant), consuming approximately 9.6 W (Class 0 device) at DC 48 V 200 mA. The camera operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (Power On range: -20 °C to +50 °C {-4 °F to +122 °F}) and ambient humidity from 10% to 100% (no condensation). Its robust design provides IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliance for water and dust resistance, IK10 (IEC 62262) shock resistance, and wind resistance up to 40 m/s {approx. 89 mph}. Sized at 112.5 mm (W) x 112.5 mm (H) x 298.5 mm (D) {4-7/16 inches(W) x 4-7/16 inches(H) x 11-3/4 inches(D)}, it weighs approximately 1.0 kg {2.21 lbs}. The finish includes a main body of aluminum die cast / PC resin in i-PRO white, corrosion-resistant stainless steel outer fixing screws, and a clear PC resin front panel. Easy Kitting is supported for convenient installation.
