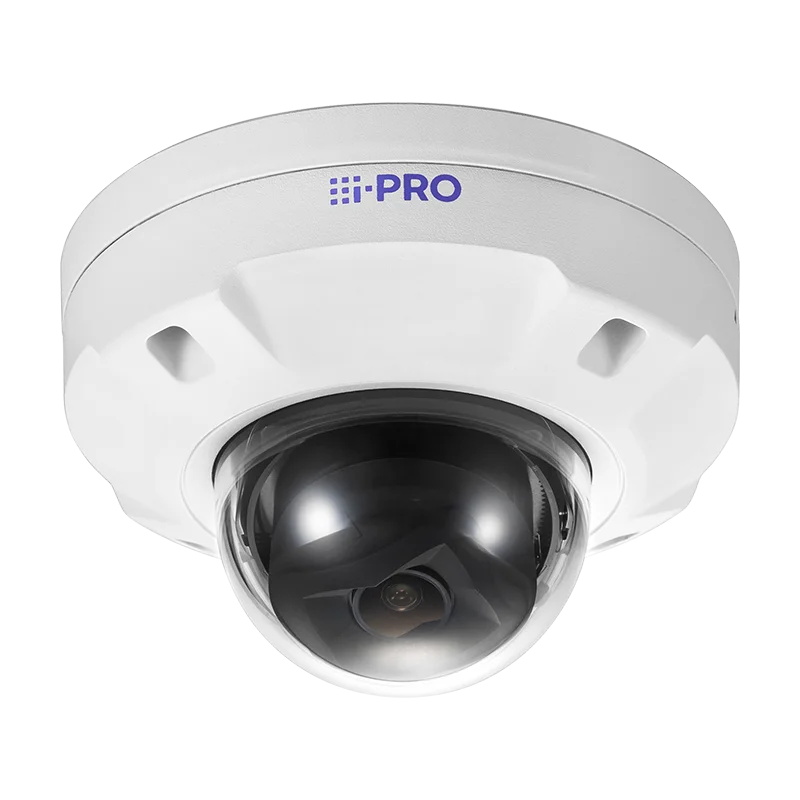

WV-U25551-V3L i-PRO U-series dome camera

WV-U25551-V3L i-PRO U-series dome camera

This advanced camera system, featuring an approximately 1/2.8 type CMOS image sensor with a scanning area of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}, is designed for superior surveillance in diverse lighting conditions. Its impressive minimum illumination reaches as low as 0.07 lx in color (30IRE, F1.6, 1/30 s, AGC: 11) and achieves 0 lx in BW with IR LED on (50IRE, F1.6, 1/30 s, AGC: 11), benefiting from a maximum IR LED irradiation distance of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The camera offers flexible white balance options (ATW1/ ATW2/ AWC) and versatile shutter speeds, ranging from 1/30 Fix to 1/10000 Fix for 30/15 fps modes and 1/25 Fix to 1/10000 Fix for 25/12.5 fps modes, with maximum shutter speeds reaching 16/30 s or 16/25 s respectively.

Equipped with Intelligent Auto, Super Dynamic (with a range of 0 to 31 for a maximum 120 dB dynamic range), Adaptive Black Stretch (level 0 to 255), Back Light Compensation (BLC)/High Light Compensation (HLC) (range 0 to 31), and Fog Compensation (range 0 to 8), this camera meticulously optimizes image quality. It provides granular control over Maximum Gain (AGC) from 0 to 11 and offers multiple Color/BW (ICR) modes including Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), and Auto3 (SCC). Digital Noise Reduction is configurable from 0 to 255.

For intelligent monitoring, the camera incorporates Video Motion Detection (VMD) with 4 available areas, Scene Change Detection (SCD) with 1 area, and Audio Detection featuring AI Sound Classification for gunshots, yells, vehicle horns, and glass breaks. It supports one analytics application at a time from i-PRO’s extensive suite, with details available on their website, and allows for integration of third-party applications via its Edge AI platform. Privacy Zone and VIQS can each be configured with up to 8 zones, and image rotation is available in 0°, 90°, 180° (Upside-down), and 270° increments. An on-screen Camera Title can display up to 40 characters over 2 lines.

The lens boasts a 3.2x motorized optical zoom with motorized focus, complemented by a maximum 12.8x digital (electronic) zoom. Its focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular field of view for 16:9 mode ranges from 28° (TELE) to 99° (WIDE) horizontally and 15° (TELE) to 52° (WIDE) vertically, while for 4:3 mode, it’s 28° (TELE) to 100° (WIDE) horizontally and 21° (TELE) to 72° (WIDE) vertically. The adjusting angles are a horizontal (PAN) angle of -105° to +255°, a vertical (TILT) angle of -30° to +85°, and an Azimuth (YAW) angle of -100° to +100°. The maximum aperture ratio is 1:1.6 (WIDE) – 1:3.2 (TELE), with a focus range from 2.0m {78-3/4 inches} to infinity and an aperture range of F1.6 to close. DORI distances are specified as: Detect at 205.4m {673.7ft} (TELE) / 43.7m {143.5ft} (WIDE), Observe at 82.1m {269.5ft} (TELE) / 17.5m {57.4ft} (WIDE), Recognize at 41.1m {134.7ft} (TELE) / 8.7m {28.7ft} (WIDE), and Identify at 20.5m {67.4ft} (TELE) / 4.4m {14.3ft} (WIDE).

At its core, the camera operates on an Ambarella CV25M System on Chip. Its browser GUI supports English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, and Japanese, accessible via Microsoft Edge, Firefox, and Google Chrome. Connectivity is provided through a 10BASE-T/100BASE-TX RJ45 network interface.

The camera offers a wide range of resolutions depending on the aspect ratio and frame rate mode, including 2560×1440, 1920×1080, 1280×720, 640×360, and 320×180 for 16:9 modes (30fps/25fps), and 2592×1944, 2560×1920, 1280×960, 640×480, 320×240 for 4:3 modes (30fps/25fps), with additional options for 15fps/12.5fps 4:3 modes. It supports H.265/H.264 transmission with priority options (Constant bit rate, VBR, Frame rate, Best effort) and transmission types (Unicast port AUTO/MANUAL, Multicast). It provides 4 streams and 10 steps of JPEG (MJPEG) image quality (0 to 9). Smart Coding features GOP control (Off, Low, Mid, Advanced, Frame rate control) and Smart VIQS (On High/Low, Off), along with Smart P-picture control (On/Off). Audio compression methods include G.726 (16/32 kbps), G.711 (64 kbps), and AAC-LC (64/96/128 kbps), with audio transmission modes such as Off, Mic (Line) input, Audio output, Interactive (Half/Full duplex).

Extensive protocol support includes IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) and IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). The camera accommodates up to 14 simultaneous users and boasts robust security features, including FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, user and digest authentication, Host authentication, IEEE802.1X, system and image transmission logs, brute-force protection, alteration detection, secure boot, and signed firmware. Optional microSDXC/SDHC/SD memory card support is available for storage (2GB to 512GB), and it is compatible with iPad/iPhone (iOS 8.0 or later) and Android™ terminals. It is ONVIF® Profile G, M, S, and T compliant.

Alarm sources include VMD, SCD, Command, and Audio detection alarms, triggering actions such as SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, browser indication, and TCP alarm notification output. For input/output, it features a ø3.5 mm stereo mini jack for audio input (microphone or line input at approx. -10 dBV) and a ø3.5 mm stereo mini jack for monaural audio output (approx. 600 Ω, -20 dBV).

General specifications highlight its compliance with UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. for safety and FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for EMC. Power is supplied via PoE (IEEE802.3af Compliant) at DC 48 V, consuming approximately 9.6 W (Class 0 device). It operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (power on range: -20 °C to +50 °C {-4 °F to +122 °F}) and ambient humidity from 10 % to 100 % (no condensation). The camera is highly durable with IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X water and dust resistance, IK10 (IEC 62262) shock resistance, and can withstand wind speeds up to 40 m/s {approx. 89 mph}. Its compact dimensions are ø154 mm × 105 mm (H) {ø6-1/16 inches × 4-1/8 inches (H)} with a dome radius of 42 mm {1-21/32 inches}, and it weighs approximately 1.0 kg {2.21 lbs} (excluding attachments). The main body is constructed from aluminum die cast in i-PRO white, with corrosion-resistant stainless steel outer fixing screws and a clear PC resin dome cover. Easy Kitting is supported, and it includes a tamper-resistant enclosure.
