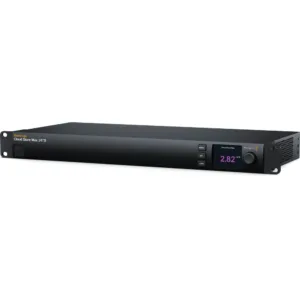

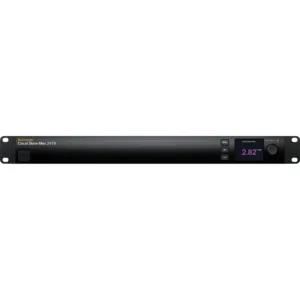

Blackmagic Cloud Store Max 24TB

Tailored for the demands of film and television production workflows, the Blackmagic Design Cloud Store Max 24TB serves as an ideal solution for post-production tasks. Boasting a capacious 24TB capacity, this device employs a NVMe M.2 SSD configuration, organized into 12 RAID 0 flash memory cards, perfectly equipped to manage the hefty 12K Blackmagic RAW digital cinema files. Connectivity options include a single 100GbE Ethernet port and four 10GbE Ethernet ports, alongside a USB-C port featuring a built-in network adapter. Real-time monitoring of the Cloud Store Max’s status is facilitated through HDMI and SDI outputs.

Portable and Quiet Construction of Blackmagic Cloud Store Max 24TB

Crafted with a rackmount design, the Max unit remains both portable and discreetly quiet. Its full rack width accommodates the 12 flash memory cards, complemented by 100 and 10GbE Ethernet connections. For swift file access, utilize the USB-C port as an alternate network connection with your personal computer. Additionally, HDMI and SDI monitoring outputs furnish a live graphic depiction of the storage status.

Connectivity Options on Blackmagic Cloud Store Max 24TB

An IEC power socket facilitates AC power connection, with an additional 4-pin XLR 12V DC power input offered for added redundancy. The USB-C port supports Ethernet for direct computer connectivity, enabling expedited file retrieval. For high-speed networking, the 100GbE Ethernet port connects to Ethernet switches via its flexible QSFP socket, compatible with both copper cables and longer optical fiber cables.

Moreover, four 10GbE RJ45 Ethernet ports link high-speed computers to the Max unit, allowing the creation of four distinct edit workstations. The SDI and HDMI output connectors enable seamless integration with compatible displays, affording real-time monitoring of the Cloud Store’s status or incorporation into broadcast trucks. The HDMI port provides insight into storage mapping, speed metrics, synchronization, active users, and power status.

Flash Memory for Collaborative Work

Equipped with expansive parallel flash memory cores, the Cloud Store Max unit offers abundant storage capacity, catering to multiple users simultaneously. Featuring a configuration of 12 M.2 cards organized in a RAID 0 setup, this unit ensures high-capacity performance, capable of accommodating numerous users concurrently. This robust setup enables seamless operation of HyperDeck recorders and editing workstations with optimal speed.

Sync with Blackmagic Cloud

Effortlessly synchronize your media files with the Blackmagic Cloud, Dropbox, or Google Drive by establishing a local cache on your system. This synchronization ensures global distribution of files, with the Cloud Store Max unit staying synchronized to conserve space on editing workstations and enable convenient access across your production network.
