Blackmagic Design UltraStudio HD Mini

Blackmagic Design UltraStudio HD Mini

Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini from systec international .

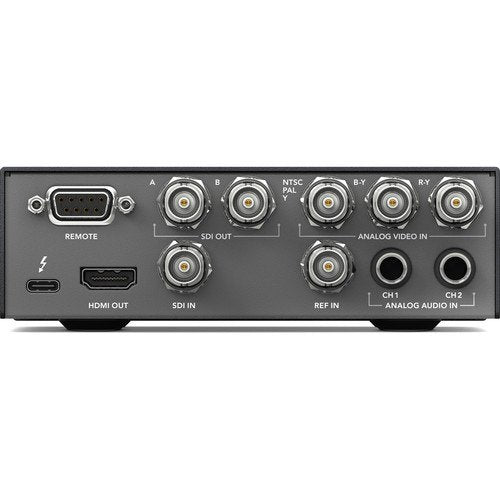

SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays. With the built-in RS-422 connection, the UltraStudio HD Mini can also interface with professional broadcast decks.

Control

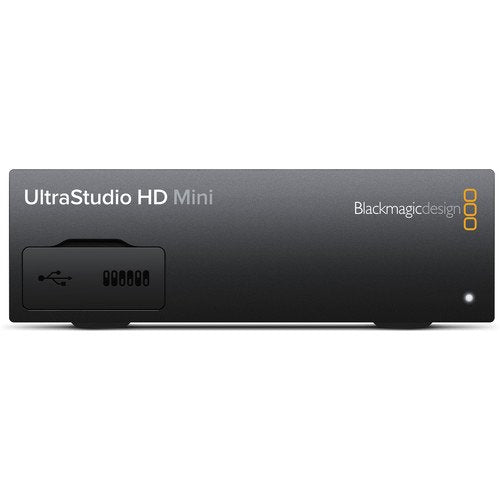

Use the DIP switches on the front panel or the RS-422 deck control port on the rear for software control. The separately available Teranex Mini Smart Panel can be purchased separately and can be used to control the UltraStudio Mini as well as for confidence monitoring.

Processing

 UltraStudio HD Mini  Color Space Conversion:

Hardware based real time.

HD Down Conversion:

Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.

Real-Time Effects Support

Final Cut Pro X internal effects
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects
DaVinci Resolve

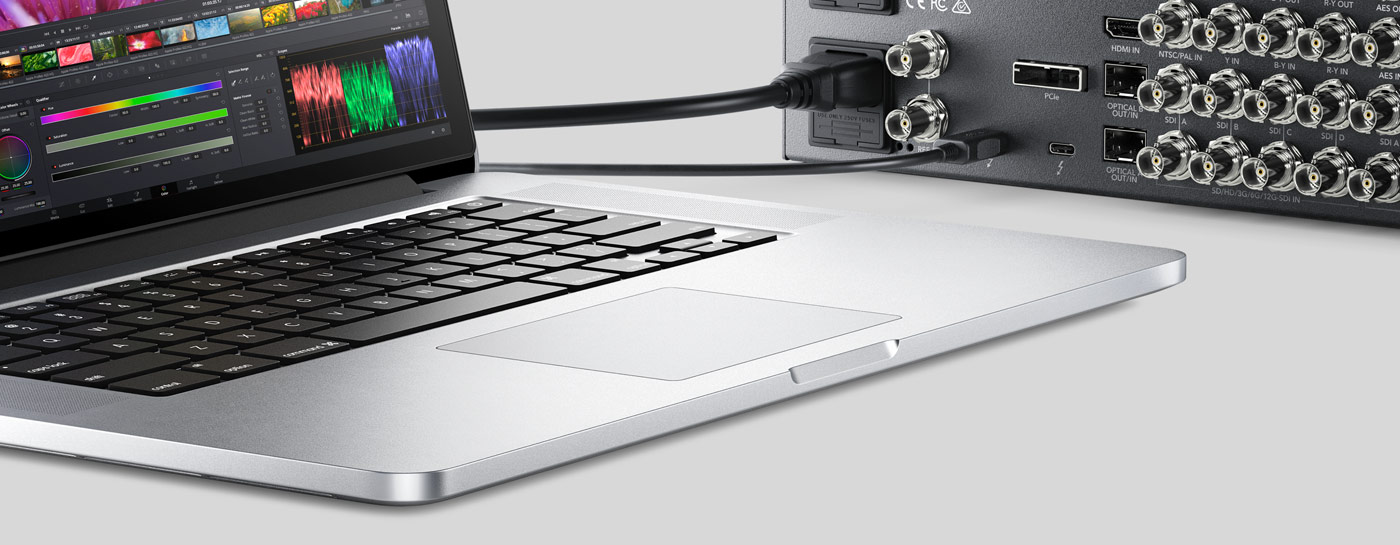

Thunderbolt 3 Connectivity

Connects via Thunderbolt 3 to stream video. Bus-power over Thunderbolt 3 is sufficient to power the UltraStudio Mini, no separate power supply is required.

Software Application Support

 UltraStudio HD Mini  Advanced Workflow:

UltraStudio is perfect for high performance work that demands the highest quality. Using a single Thunderbolt cable, you can easily connect any Thunderbolt computer or laptop for amazing on set color correction, editing, visual effects and video streaming. Lightweight and compact, UltraStudio HD Mini is extremely portable, easily moving from one computer to another. UltraStudio Mini Recorder and UltraStudio Mini Monitor include SDI and HDMI connections and are great when you require either capture or playback in SD or HD. UltraStudio HD Mini and UltraStudio Mini models are Thunderbolt powered so you just plug in and go.

for more information please visit our showroom in Dubai or just visit here to place an order.

Blackmagic Design: DaVinci Resolve, Fusion
Apple: Final Cut Pro X
Adobe: Premiere Pro CC, After Effects CC, Photoshop
Avid: Media Composer, Pro Tools
Autodesk: Smoke
Steinberg: Cubase, Nuendo

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Note: Check the Blackmagic Design website for updated application support lists.
