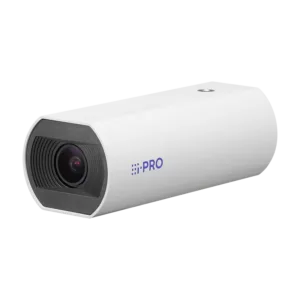

WV-U11300-V2 i-PRO New U-series compact network camera

WV-U11300-V2 i-PRO New U-series compact network camera

This high-performance camera features an approximate 1/2.8 type CMOS image sensor, providing exceptional clarity even in challenging lighting conditions. It offers impressive minimum illumination capabilities, achieving 0.07 lx in color (30IRE, F2.0, 1/30s, AGC:11) and a remarkable 0.04 lx in black and white (50IRE, F2.0, 1/30s, AGC:11). The camera boasts versatile white balance settings including ATW1, ATW2, and AWC.

For precise image capture, the camera offers a maximum shutter speed ranging from 1/10000 s to 16/30 s for 30fps mode and 1/10000 s to 16/25 s for 25fps mode. It is equipped with Intelligent Auto (On/Off) and Super Dynamic (On/Off, adjustable from 0 to 31) functions, providing a maximum dynamic range of 120 dB. Additional image optimization features include Back Light Compensation (BLC) / High Light Compensation (HLC) (On/Off, active when Super Dynamic/Intelligent Auto are off) and Fog Compensation (On/Off, adjustable from 0 to 8, active when Intelligent Auto/Auto contrast adjust are off). The Maximum Gain (AGC) can be set from 0 to 11. Color/BW (ICR) offers Off, On, Auto1 (Normal), Auto2 (IR Light), and Auto3 (SCC) modes, while Digital Noise Reduction is adjustable from 0 to 255.

Beyond its core imaging, the camera integrates advanced analytics such as Video Motion Detection (VMD) with 4 available areas, and Scene Change Detection (SCD) with 1 area. For privacy, Privacy Zone allows for up to 8 configurable zones. Image Rotation options include 0° (Off), 90°, 180° (Upside-down), and 270°. A customizable Camera Title (OSD) allows for up to 20 alphanumeric characters and marks.

The camera’s lens features a 2.5x motorized optical zoom with motorized focus, and an extra optical zoom of 2.5x – 3.8x when the resolution is 1280×720. Its focal length spans 2.9 mm – 7.3 mm {1/8 inches – 9/32 inches}. The angular field of view in 16:9 mode ranges from Horizontal: 43° (TELE) – 100° (WIDE) and Vertical: 24° (TELE) – 56° (WIDE). In 4:3 mode, it covers Horizontal: 32° (TELE) – 74° (WIDE) and Vertical: 24° (TELE) – 56° (WIDE). The maximum aperture ratio varies from 1:2.0 (WIDE) to 1:3.0 (TELE), with a focus range of 1 m {39-3/8 inches} to infinity. The DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at Wide: 32.2 m / 105.7 ft, Tele: 97.5 m / 319.8 ft; Observe at Wide: 12.9 m / 42.3 ft, Tele: 39.0 m / 127.9 ft; Recognize at Wide: 6.4 m / 21.1 ft, Tele: 19.5 m / 64.0 ft; and Identify at Wide: 3.2 m / 10.6 ft, Tele: 9.7 m / 32.0 ft.

Its browser GUI supports English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, and Japanese, and is accessible via Microsoft Edge, Firefox, and Google Chrome.

For network connectivity, the camera utilizes a 10Base-T / 100Base-TX RJ45 connector. It supports H.265/H.264 resolution options for 16:9 mode including 1920×1080, 1280×720, 640×360, and 320×180. For 4:3 mode, resolutions include 1600×1200, 1280×960, VGA, and QVGA. Transmission modes include Constant bit rate, VBR, Frame rate, and Best effort, with Unicast and Multicast types. It supports multiple streams with maximum frame rates for Stream (1) at 30fps (1920×1080/1280×720/1600×1200), Stream (2) at 30fps (640×360/1280×720/640×480), and Stream (3) being Off. JPEG (MJPEG) Image Quality is adjustable in 10 steps. Smart Coding features GOP control (On with Frame rate control, Advanced, Mid., Low, or Off, with Frame rate control and Advanced exclusive to H.265), and AUTO VIQS (On/Off, automatically Off when Audio is On). Audio compression methods include G.726 (ADPCM) at 32 kbps/16 kbps, G.711 at 64 kbps, and AAC-LC at 64 kbps/96 kbps/128 kbps. Supported protocols include IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP) and IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP). It accommodates up to 14 simultaneous users (depending on network conditions) and provides robust security features, including a pre-installed GlobalSign® Device Certificate, HTTPS, user and digest authentication, Host authentication, IEEE802.1X, system and image transmission logs, and brute-force protection. Optional SDXC/SDHC/SD Memory Card support is available for H.265/H.264 recording (Manual REC / Alarm REC (Pre/Post) / Schedule REC), compatible with microSDXC (64 GB, 128 GB, 256 GB, 512 GB), microSDHC (4 GB, 8 GB, 16 GB, 32 GB), and microSD (2 GB) memory cards. Compatibility extends to iPad, iPhone, and Android™ terminals, and the camera is ONVIF® Profile G, S, and T compliant.

Alarm sources include VMD, SCD, and Command alarms, triggering actions such as SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification (with browser indication), and TCP alarm notification output.

In terms of general specifications, the camera adheres to high safety standards (UL, c-UL, CE, IEC62368-1) and EMC compliance (FCC Part15 ClassA, ICES003 ClassA, EN55032 ClassB, EN55035). It is powered by PoE (IEEE802.3af compliant), consuming approximately 4.3 W (Class 2 device) at DC48 V 90 mA. The camera operates in ambient temperatures from -10 °C to +50 °C {+14 °F to +122 °F} (Power On range: 0 °C to +50 °C {+32°F to +122 °F}) and ambient humidity from 10% to 90% (no condensation). Its compact dimensions (excluding side cover and when installed using the base bracket) are 59 mm (W) x 49 mm (H) x 116 mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 4-9/16 inches (D)}, and it weighs approximately 165 g {0.36 lbs.}. The finish consists of a durable PC / ABS resin main body in i-PRO white.
