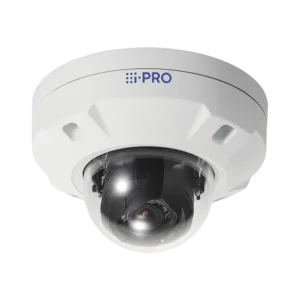

WV-U25550-F3L i-PRO U-series dome camera

This sophisticated camera, equipped with an approximately 1/2.8 type CMOS image sensor, offers a scanning area of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}. It excels in low-light environments, boasting a minimum illumination of 0.11 lx in color (30IRE, F2.0, 1/30 s, AGC: 11) and achieving 0 lx in black and white when the IR LED is activated (50IRE, F2.0, 1/30 s, AGC: 11, IR LED: On), thanks to its powerful IR LED with a maximum irradiation distance of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The camera supports ATW1, ATW2, and AWC white balance settings, and offers flexible maximum shutter speeds from 1/10000 s up to 16/30 s for 30/15 fps modes, and up to 16/25 s for 25/12.5 fps modes.

For optimal image quality, the camera features Intelligent Auto, Super Dynamic with a range of 0 to 31 for a maximum 120 dB dynamic range, Adaptive Black Stretch with a level range of 0 to 255, and Back Light Compensation (BLC)/High Light Compensation (HLC) adjustable from 0 to 31 (active only when Super Dynamic/Intelligent Auto are off). It also includes Fog Compensation (0 to 8, active only when Intelligent Auto/Auto contrast adjust are off), and adjustable Maximum Gain (AGC) from 0 to 11. Color/BW (ICR) functionality offers multiple modes: Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), and Auto3 (SCC). Digital Noise Reduction can be set from 0 to 255.

Beyond imaging, the camera integrates advanced analytics including Video Motion Detection (VMD) with 4 available areas, Scene Change Detection (SCD) with 1 area, and Audio Detection featuring AI Sound Classification for events such as gunshots, yells, vehicle horns, and glass breaks. It supports a maximum of one AI analytics application, with details available on the i-PRO website for both their own and third-party applications. Privacy Zone and VIQS can each be configured with up to 8 zones, and image rotation options include 0° (Off), 90°, 180° (Upside-down), and 270°. A Camera Title (OSD) can be displayed, supporting up to 40 characters over 2 lines.

The fixed focal length lens of 3.2 mm {1/8 inches} provides a wide angular field of view: 96° horizontal and 52° vertical in 16:9 mode, and 97° horizontal and 71° vertical in 4:3 mode. It features a maximum 4.0x digital (electronic) zoom. The camera’s adjusting angles allow for a horizontal (PAN) range of -175° to +175°, a vertical (TILT) range of -30° to +80°, and an Azimuth (YAW) range of -100° to +100°. The maximum aperture ratio is 1:2.0, with a focus range from 1.0m {39-3/8 inches} to infinity and a fixed aperture of F2.0. DORI specifications are: Detect at 46.1m {151.2ft}, Observe at 18.4m {60.5ft}, Recognize at 9.2m {30.2ft}, and Identify at 4.6m {15.1ft}.

The camera is powered by an Ambarella CV25M System on Chip. Its browser GUI supports English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, and Japanese, and is accessible via Microsoft Edge, Firefox, and Google Chrome. Network connectivity is established through a 10BASE-T/100BASE-TX RJ45 connector.

In terms of resolution, the camera supports various configurations for 16:9 mode (30fps/25fps) including 2560×1440, 1920×1080, 1280×720, 640×360, and 320×180. For 4:3 mode (30fps/25fps), resolutions include 2592×1944, 2560×1920, 1280×960, 640×480, and 320×240, with additional options for 15fps/12.5fps 4:3 modes. It offers H.265/H.264 transmission with selectable priorities (Constant bit rate, VBR, Frame rate, Best effort) and types (Unicast port AUTO/MANUAL, Multicast), providing 4 simultaneous streams. JPEG (MJPEG) image quality is adjustable in 10 steps from 0 (SUPER FINE) to 9 (LOW). Smart Coding includes GOP control (Off, Low, Mid, Advanced, Frame rate control, with Advanced and Frame rate control exclusive to H.265), Smart VIQS (On High/Low, Off), and Smart P-picture control (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), and AAC-LC (64 kbps/96 kbps/128 kbps), with audio transmission modes including Off, Mic (Line) input, Audio output, and Interactive (Half duplex/Full duplex).

The camera supports a comprehensive set of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) and IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous users and provides robust security features, including FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), pre-installed GlobalSign® device certificates, HTTPS, user and digest authentication, Host authentication, IEEE802.1X, system and image transmission logs, brute-force protection, alteration detection, and signed firmware. Optional microSDXC/SDHC/SD memory card support is available for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) and Android™ terminals, and the camera is ONVIF® Profile G, M, S, and T compliant.

Alarm sources include VMD, SCD, Command, and Audio detection, triggering actions such as SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, browser indication, and TCP alarm notification output. For audio input, a ø3.5 mm stereo mini jack supports microphone input (plug-in power type, sensitivity –51 dB to –38 dB, input impedance approx. 2 kΩ, supply voltage 2.5 V ±0.5 V) or line input (approx. -10 dBV). A ø3.5 mm stereo mini jack provides monaural audio output (output impedance approx. 600 Ω, output level -20 dBV).

General specifications include safety certifications (UL62368-1 3Ed, CAN/CSA C22.2 NO.62368-1-19, IEC62368-1 3Ed) and EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). Power is supplied via PoE (IEEE802.3af Compliant) at DC 48 V, with an approximate consumption of 9.6 W (Class 0 device). The camera operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (power on range: -20 °C to +50 °C {-4 °F to +122 °F}) and ambient humidity from 10 % to 100 % (no condensation). Its robust design provides IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X water and dust resistance, IK10 (IEC 62262) shock resistance, and wind resistance up to 40 m/s {approx. 89 mph}. Compactly sized at ø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}, with a dome radius of 30.5 mm {1-3/16 inches} and 42 mm {1-21/32 inches}, it weighs approximately 270 g {0.60 lbs}. The main body is made of aluminum die cast in i-PRO white, featuring corrosion-resistant stainless steel outer fixing screws, a clear PC resin dome cover with ClearSight coating, and a clear PC resin front panel with ClearSight coating. Easy Kitting is supported.
