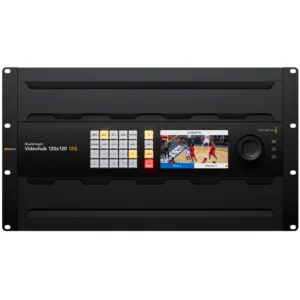

Blackmagic Design Videohub 120×120 12G Zero-Latency Video Router

Manage diverse video formats effortlessly with the Blackmagic Videohub 120×120 12G Zero-Latency Video Router. This cutting-edge router boasts 120 x 12G-SDI inputs and 120 x 12G-SDI outputs, enabling seamless routing of SD, HD, UHD 4K, and DCI 4K video in any combination. By consolidating all SDI cables into one hub, it simplifies connectivity, allowing flexible routing from any video input to any output, or from one input to multiple outputs, eliminating cable clutter and the need for intricate diagrams. Its versatility extends to pairing with multiple HyperDeck recorders for redundant mastering, routing video to various streaming processors across broadcast platforms, or expanding inputs for an ATEM switcher.

12G-SDI Multi-Rate Connections of Blackmagic VideoHub 120×120 12G

• Utilize multi-rate 12G-SDI connections to route up to 120 different video standards concurrently.
• Supports resolutions up to DCI 4K60 video.
• Enables 4:2:2 8 or 10-bit color routing in any standard.
• Works with 4:4:4 12-bit SDI up to DCI 4K30 for cinematic productions.

SDI Reclocking

• Reclocking on each 12G-SDI input restores the signal, ensuring optimal video quality.
• Minimizes or eradicates signal loss and jitter, particularly over longer cables prone to signal degradation.

Front-Panel Controls of Blackmagic VideoHub 120×120 12G

• The sleek front panel offers various control options.
• Features assignable shortcuts and buttons for In, Out, Clear, and Take functions.
• Equipped with a precision machined metal spin knob with electronic clutch for accurate control.

Optional Hardware Control Panels on Blackmagic VideoHub 120×120 12G

• Compatible with optional hardware panels for simplified control, especially in expansive facilities.
• Works seamlessly with the Videohub Master Control Pro and Videohub Smart Control Pro.
• The Videohub Master Control Pro resembles the front panel, featuring a spin knob, LCD, and shortcut buttons.
• The Videohub Smart Control Pro boasts an all-button design, typically programmed to control a single router output per button, facilitating instant router output changes with button presses.

Effortless Router Management

Videohub Software Control, compatible with macOS, iPad, and Windows, offers intuitive touchscreen router control. With large, easily accessible buttons, this software operates seamlessly on your existing computers used for creative tasks. Customize each button to correspond with a router input or output, complete with visually identifiable icons.

Configuration Tool and SDK Integration

Initiate setup with Videohub Setup software or integrate the SDK for protocol support tailored to broadcast automation systems.

Integrated Display

• Preview your live input directly on the built-in 5″ LCD screen.
• Navigate through your sources conveniently with bottom labels arranged alphabetically.
• The inclusion of an internal SDI monitor negates the necessity for an external setup.
