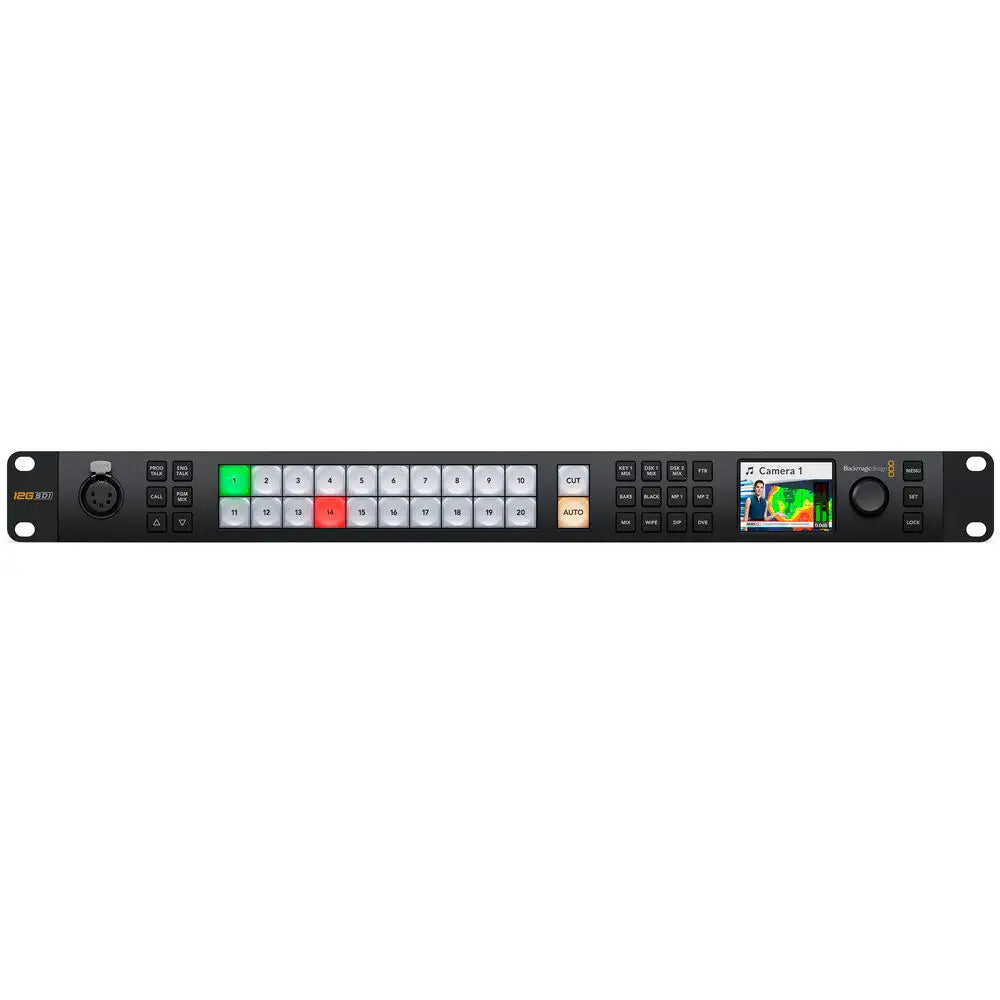

Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher

The ATEM 2 M/E Constellation UHD 4K Live Production Switcher enhances its predecessor’s setup by incorporating UHD 4K capabilities and 12G-SDI ports. Tailored for robust live event UHD 4K switching, this unit offers 20 individual 12G-SDI inputs compatible with 12G/3G/HD-SDI signals, feeding them to 12 12G-SDI outputs or webcam USB-C output. Additionally, the switcher features a multiview output with up to 16 routable windows, showcasing inputs, keyed video, graphics, stills from the media pool, and the program output. Each input is linked to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

The switcher incorporates a reference video input, and every input is equipped with a frame synchronizer, frame rate converter, and format converter. This enables seamless mixing and matching of cameras and formats, even for cameras lacking genlock, and integration of video input from computer sources. Upstream and downstream keyers and effects are available, all executed live and in real time without the need for rendering. Control options include the integrated front panel, optional Blackmagic ATEM panels, or downloadable control software.

Professional-Grade Transitions of ATEM 2 M/E Constellation

The ATEM Constellation UHD 4K boasts an extensive selection of high-quality native transitions, including mix, dip, wipe, and more. All transitions are fully customizable via the system control menus, allowing adjustments for border color, width, position, direction, and numerous other parameters. Additionally, the switcher features a robust digital video effects processor for DVE transitions, enabling the current picture to be seamlessly squeezed offscreen to reveal a new video underneath. The DVE functionality also facilitates the creation of graphic wipe transitions. To ensure accuracy, the ATEM Constellation UHD 4K offers a preview transition feature, enabling users to configure transitions before broadcasting.

Integrated DVE Functionality of ATEM 2 M/E Constellation

Equipped with two independent DVEs, the ATEM Constellation enables users to reposition graphics and generate picture-in-picture compositions with exceptional quality. The DVE supports real-time adjustments for position, resize, and scale, offering versatility in creating professional picture-in-picture effects with customizable 3D borders, shadows, and lighting. Moreover, DVEs can be leveraged to produce dynamic transitions with squeeze and swoosh effects, enhancing program excitement. Users can even combine DVE transitions with custom graphics to craft unique graphic wipe transitions. In the 2 M/E model, SuperSource processors are included for six DVEs.

SuperSource

Incorporated into the ATEM 2 M/E Constellation model alongside the DVEs in the M/E rows, the ATEM Constellation UHD 4K features robust SuperSource multilayer processors. These processors include four additional DVE layers and a background layer, presenting themselves as an extra input source to the switcher. Each SuperSource DVE can utilize any switcher video input, which is then layered over a custom background from the media pool. This feature effectively adds an additional multilayer VFX switcher, ideal for creating picture-in-picture displays for interviews while keeping the main DVEs available for other tasks.

ATEM 2 M/E Constellation Multiview Outputs

Offering configurable options ranging from 16 to 4 up views, the multiview function provides monitoring capabilities for program, preview, inputs, media players, DSK, and clean feed. Optional labels and audio meters enhance usability. The ATEM 2 M/E Constellation model is equipped with two multiview outputs.

Professional Broadcast Talkback

The ATEM Constellation incorporates built-in talkback functionality to facilitate seamless communication among crews. Supporting a 5-pin XLR headset connector and a rear-mounted RJ12 connector, talkback interfaces with industry-standard systems like ClearCom or RTS. Users have comprehensive talkback control, including program and engineering loops, sidetone control, and program mix. Additionally, SDI talkback using channels 15 and 16 enables two-way communication with Blackmagic Design cameras, while channels 13 and 14 can be utilized for engineering talkback. Moreover, the talkback mic can be mixed into the program audio for voiceovers.

Internal Media Pool

Featuring a built-in media pool, the switcher stores high-quality RGBA graphics and animations for instant playback by two or four media players. These media players function as additional input sources on the ATEM Constellation UHD 4K, eliminating the need for extra SDI inputs for graphics. The media pool holds graphics intended for use with the media players. In the 2 M/E model, the media pool can accommodate 40 stills and 400 frame animations. Media management is facilitated through the included ATEM Software Control or direct downloads from Photoshop using the ATEM Photoshop plug-in.

Chroma Keyers in ATEM 2 M/E Constellation

The ATEM chroma keyer incorporates a color picker for automatic key parameter generation by sampling background colors. Utilize precise controls for edge and flare adjustments, with an added foreground color corrector to ensure seamless compositions matching the background layer. The keyer is versatile for pattern and DVE keying applications. The 2 M/E model offers eight Advanced Keyers.

Multi-Rate 12G-SDI Connection on ATEM 2 M/E Constellation

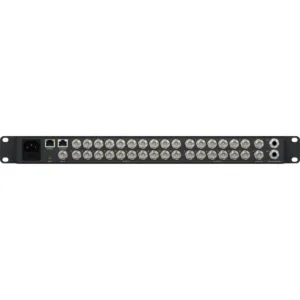

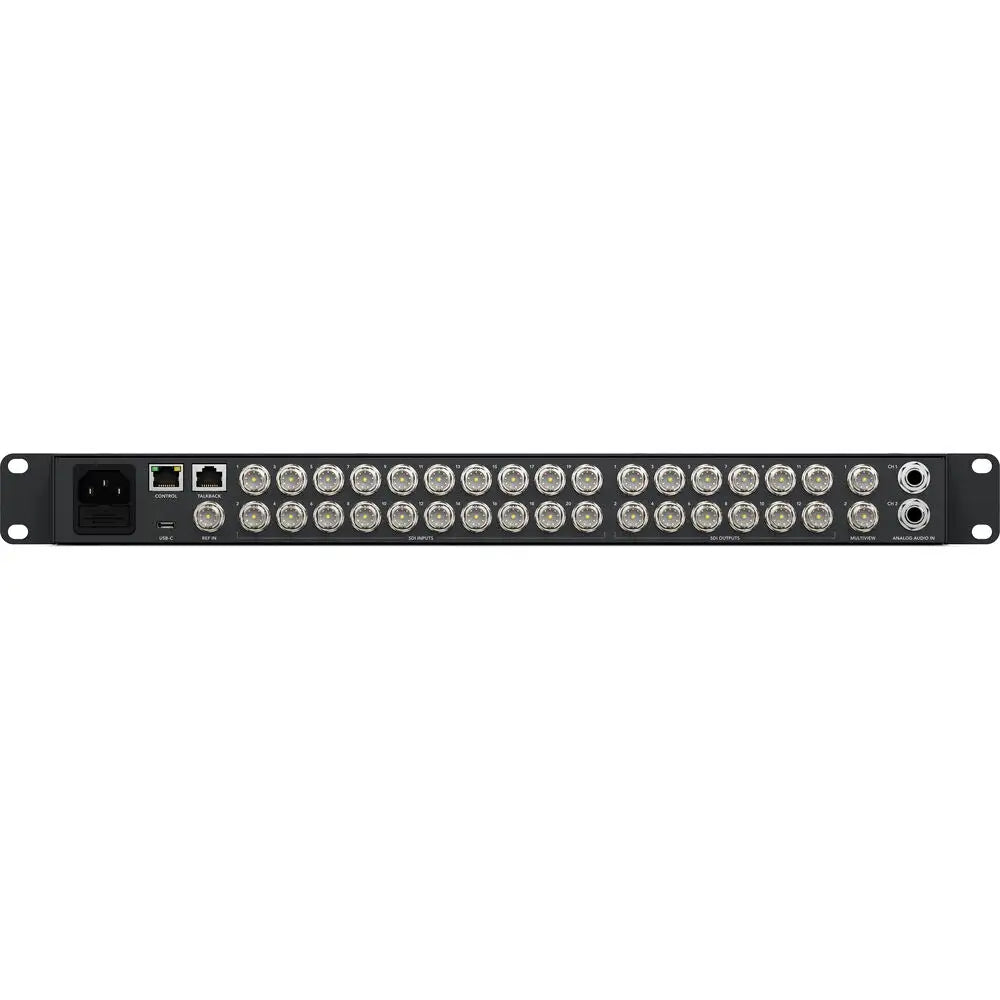

Featuring up to 20 multi-rate 12G-SDI connections, the ATEM 2 M/E Constellation UHD 4K accommodates various video sources, supporting UHD and HD video standards including 720p, 1080i, 1080p, and 2160p formats. Easily switch between formats to suit production needs. The inputs support embedded audio, allowing for audio mixing from the inputs. Program outputs include talkback, tally, and camera control information for seamless integration with cameras.

Fairlight Audio Mixer

All SDI inputs on the Constellation UHD 4K connect to a built-in Fairlight audio mixer equipped with a 6-band parametric EQ, compressor, limiter, noise gate, and expander. Audio is extracted from the SDI sources and routed to the internal mixer, supporting up to 156 input channels. Additional inputs are available for integrated analog sources or talkback microphones for voiceover capabilities. Audio control is managed through the ATEM Software Control or compatible Mackie panel.

ATEM Software Control Panel

Employ the ATEM Software Control Panel to manage your Constellation unit through your personal computer. The software offers a visual switcher interface and parameter palettes for swift adjustments. Multiple users can connect to the switcher via Ethernet, allowing concurrent work on different aspects of your event. It grants access to camera control, audio mixing, media, macro programming, and HyperDeck disk recorder control. Save the switcher’s full state as XML files and back up media from the media pool. The software is compatible with macOS and Windows operating systems.

Optional Control Panels

The Constellation UHD 4K is compatible with three ATEM Advanced Panel models, featuring industry-standard M/E-style layouts with built-in LCD screens. High-quality buttons with customizable illumination color, a DVE joystick, and a T-bar fader streamline unit control. Macros can be set up and triggered effortlessly. All M/E button rows include integrated LCDs for dynamic input button labeling. The 1 M/E model comprises a single M/E row with 10 input buttons, the 2 M/E model includes 2 M/E rows with 20 input buttons, and the 4 M/E model boasts four M/E rows with 40 input buttons per row and four independent system control LCD screens.
