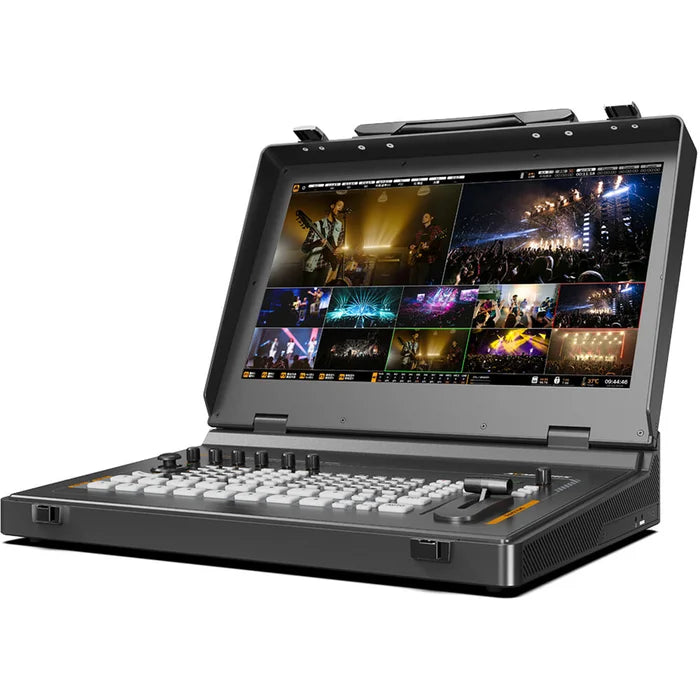

AVMATRIX SHARK S8X PLUS-N 8-Channel SDI/HDMI/NDI Portable Video Switcher

AVMATRIX SHARK S8X PLUS-N Overview

Pairing functionality with portability, the NDI-enabled AVMATRIX SHARK S8X PLUS-N is a powerful, 8-channel video switcher designed for professionals who need real-time control in live production environments. Featuring eight 3G-SDI and two 4K HDMI inputs, it accommodates a wide range of broadcast and camera sources, while four 3G-SDI, one HDMI multi-view, and two HDMI PGM outputs provide flexible signal routing and convenient monitoring on the built-in 17.3″ FHD IPS display.

Ideal for hybrid workflows, the SHARK S8X PLUS-N supports direct recording to USB drives, SD cards, or SATA SSDs, making it easy to archive or edit footage post-event. Built-in RTMP, SRT, RTSP, and NDI streaming ensures reliable live broadcasts to online platforms without external encoders. The switcher features up to six adjustable key layers for complex compositions, including Chroma and LUMA keying, three customizable picture-in-picture windows, and logo overlays. With 10-channel audio mixing and two XLR-1/4″ combo inputs with phantom power, the switcher ensures professional-grade sound. PTZ control over Visca, Onvif, Pelco P/D, and NDI protocols further streamlines single-operator setups, making the SHARK S8X PLUS-N a complete solution for events, churches, sports, or streaming studios.

Video Streaming and Recording

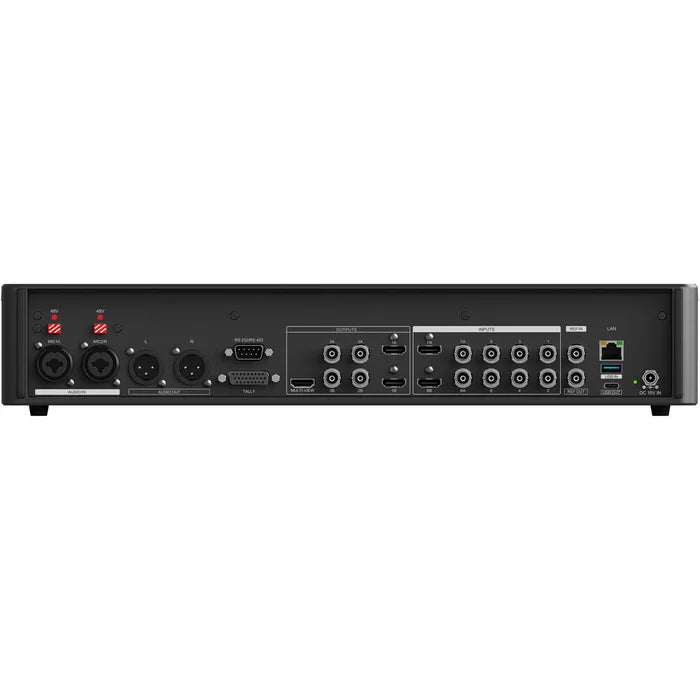

• Eight 3G-SDI and two 4K HDMI AV input ports
• Four SDI, one HDMI multi-view, and two HDMI PGM output ports
• RTMP, SRT, RTSP, and NDI streaming support
• USB, SD, and SATA recording options
• USB-C connectivity for UVC capture devices

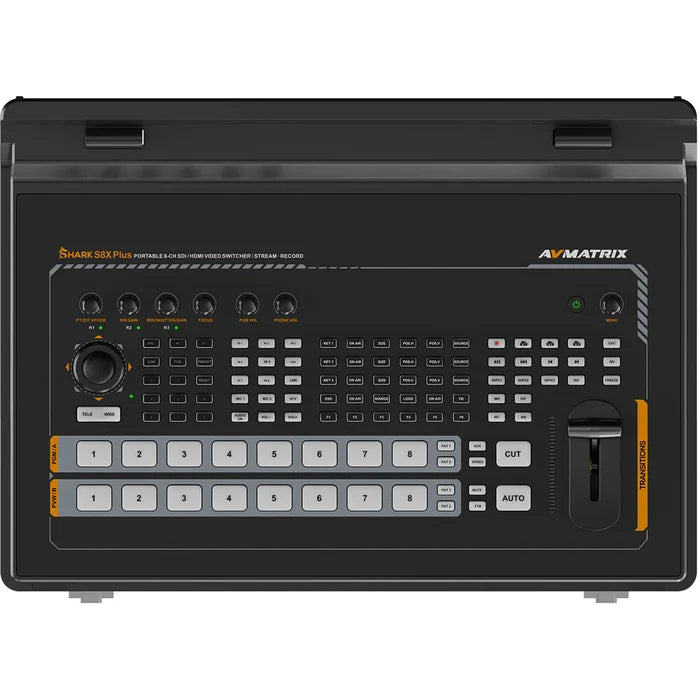

Advanced Functionality

• Up to six key layers with adjustable size and positioning
• Chroma key, LUMA key, and logo overlay effects
• Three customizable PIP windows
• T-bar, auto, and cut transition modes
• Audio mix up to 10 channels

Compatibility

• PTZ camera control via Visca, Onvif, Pelco P/D, and NDI
• Tally and RS422/RS232 control output ports
• Phantom power via XLR-1/4″ combo inputs for condenser mics
• Headphone and balanced audio output
