Key Features
- Stereo and Mono Recording Modes
- 40 Hz to 20 kHz Frequency Response
- -10, 0, and +20 dB Level Adjustment
- 120 Hz Low-Cut Filter
- Integrated Shockmount
- 3.5mm TRS Output
- Operates on Two AA Batteries
- Includes Foam Windscreen & Carry Pouch
SKU:
SMX-30II
Availability:
In stock
- 1,028.00 AED
1,082.00 AED- 1,028.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 20 x 14 x 9 cm
Weight: 0.4 kg
Description
xAzden SMX-30II

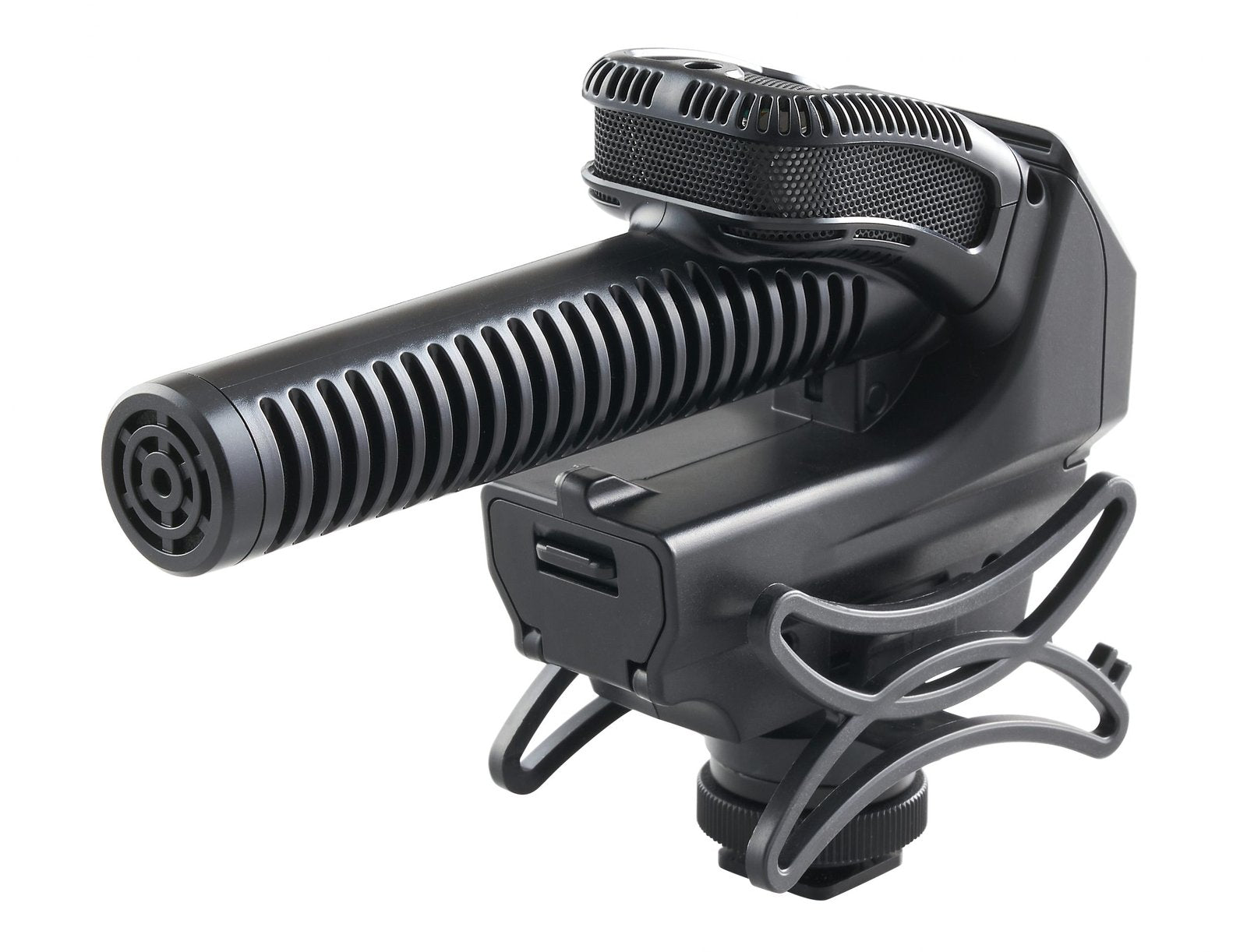

Azden SMX-30II Stereo/Mono Switchable Video Microphone is a battery-powered microphone with separate stereo and shotgun-style microphone units that can be switched between mono and stereo recording modes. It can be used to produce pro-quality sound for DSLRs and other compact cameras in applications for interviews, weddings, presentations, and more.
Azden SMX-30II Housed inside an innovative casing,is two microphones packaged into one. The stereo microphone is positioned at the top and consists of two cardioid polar patterns spaced apart at a 120° angle. The mono microphone uses a supercardioid polar pattern to focus on sound in front of the camera. It has the same high-quality element as Azden's SGM-250 shotgun microphone.
Using the built-in +20 dB gain booster to get a strong clean audio signal into your camera, the Azden SMX-30II minimizes the need to turn up noisy preamps usually associated with DSLRs, and also includes a -10 dB pad to protect against distortion when recording in loud environments such as live concerts and motorsport events.
Furthermore, the microphone has a wide frequency response of 40 Hz to 20 kHz and has a full, natural sound. There is a low-cut filter switch for reducing low frequencies below 120 Hz, which is useful for mitigating noise caused by air conditioners, wind, and traffic.
Powered by two AA batteries, you can operate the SMX-30 microphone for approximately 24 hours with no degradation of sound quality. The battery-indicator LED light lets you know when it's time to change batteries with up to a 1-hour warning beforehand.
Finally, an integrated shock-absorbing shoe mount isolates the Azden SMX-30II microphone from camera-motor/handling noise. The mount is designed to fit the standard camera shoe and comes with 1/4"-20 threads at the bottom for mounting to boom poles and other camera accessories. A foam windscreen and a carry pouch are also included.

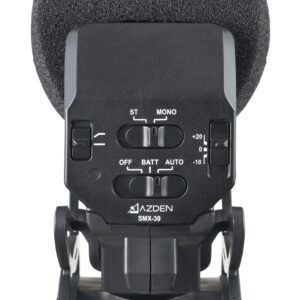

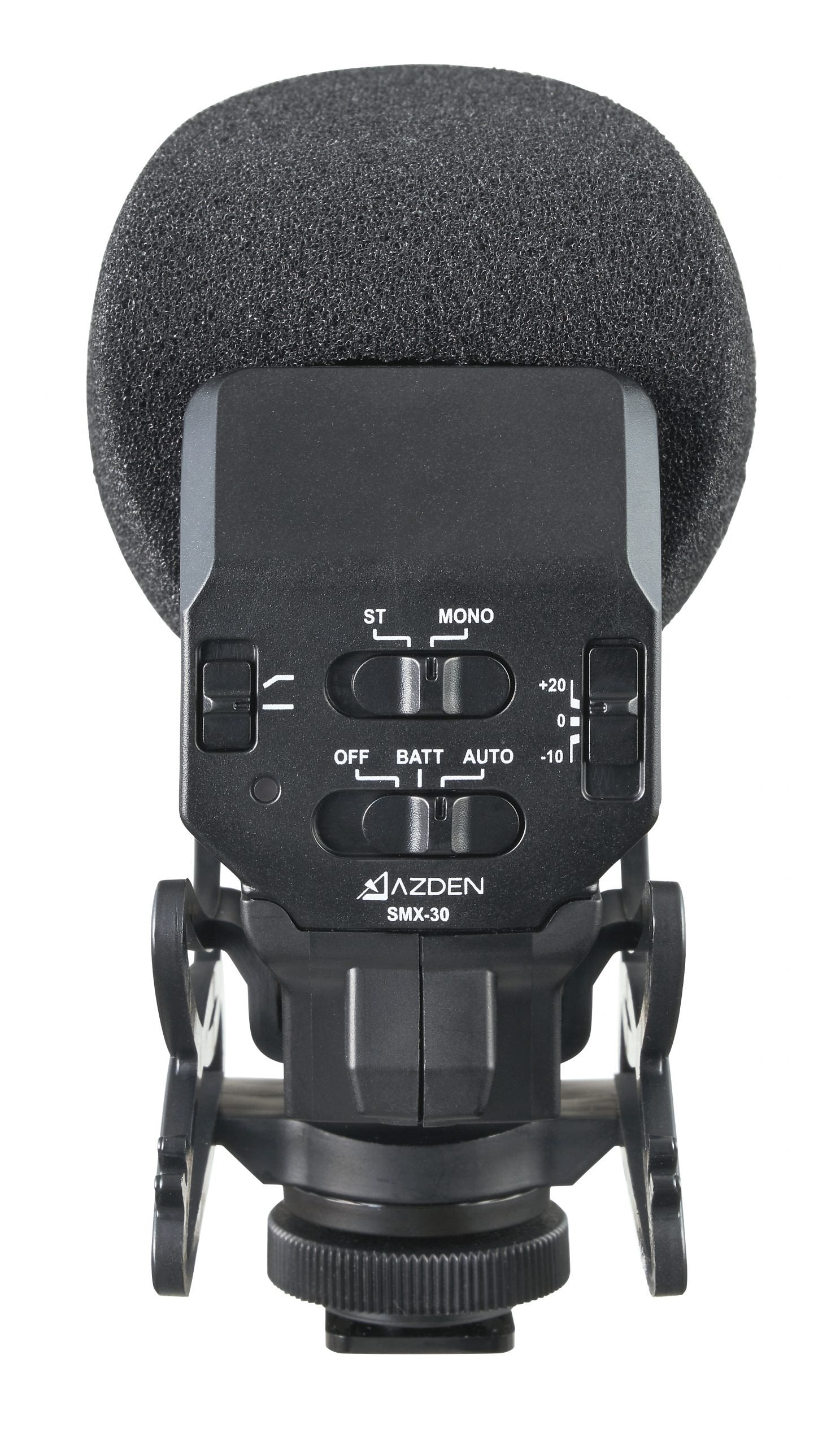

Azden SMX-30II Features
Stereo or Mono? Why Choose?
If you only have the budget to buy one microphone for your camera, why should you have to choose between mono and stereo? The Azden SMX-30II is stereo/mono switchable.
Gain Control
The audio controls on DSLR cameras are limited, if they exist at all. And DSLRs are notoriously known to have low-quality microphone preamps that add noise to the video soundtrack when the gain is turned up. Azden's SMX-30 has a +20 dB gain booster so you can get a strong, clean audio signal into your camera, minimizing the need to turn up the noisy preamp.
Frequency Response
The SMX-30 has a wide frequency response ranging from 40 Hz to 20 kHz, so the audio you capture will sound full and natural.
Power
Powered by two AA batteries, which is a lower-cost option than the 9V battery used in some competitor microphones, the SMX-30 can achieve 24 hours of operation with a single set of batteries with absolutely no degradation of sound quality.
Maximize Battery Life
Maximize battery life by using the unique "Auto" power setting. When set to Auto, the SMX-30 can detect when a camera is on and will automatically power on and off with the camera (requires a mic input that provides plug-in power). Ever leave your microphone on by accident to discover that the batteries are dead the next time you try to use it? Eliminate that possibility by always leaving the SMX-30 in "Auto" mode.
Integrated Shock-Absorbing Shoe Mount
Integrated into the design of the SMX-30 is a custom-made, shock-absorbing shoe mount to isolate the microphone from camera-motor/handling noise.
buy SMX-30II today from Systec international
Specs
xAzden SMX-30II Specs
| Form Factor | Camera-Mount |
| Sound Field | Mono, Stereo |
| Capsule | Electret Condenser |
| Polar Pattern | Cardioid, Supercardioid |
| Pattern Selection | Switched (Adjustable on Mic) |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | -10 dB |
| High-Pass Filter | 120 Hz, 3 dB/Octave |
| Gain Adjustment | +20 dB |
| Indicators | 1 x Red Single LED |
| On-Board Controls | Polar Pattern, High-Pass Filter, Pad, On/Off |
| Windscreen | Foam (Included) |
| Frequency Range | 40 Hz to 20 kHz |
| Maximum SPL | 130 dB SPL |
| Impedance | 50 Ohms |
| Sensitivity | -36 dB at 1 kHz |
| Output Level | 6.2 dBu |
| Dynamic Range | 118 dB |
| Signal-to-Noise Ratio | 82 dB (1 kHz) |
| Output Connectors (Analog) | 1 x 1/8" / 3.5 mm TRS (on Mic) |
| Operating Voltage | 3 V (Battery Power) |
| Battery Type | 2 x AA |
| Approximate Battery Life | 24 Hours |
Physical
| Color | Black |
| Mounting | Camera/Shoe-Mount (via Integrated Hardware) |
| Mounting Thread Size | 1/4"-20 Female |
| Dimensions | ø: 1.85 x H: 4.21L: 5.71" / ø: 47 x H: 107L: 145 mm |
| Weight | 5.11 oz / 145 g |
