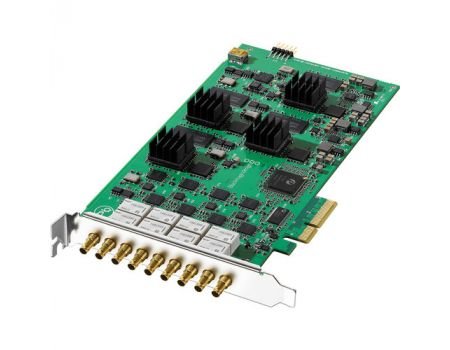

Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card
Key Features
- 8 x Bidirectional SD/HD/3G-SDI
- 8-Lane PCIe Interface
- Resolutions up to 1080p60
- Inputs/Outputs Independently Switchable
- Supports Uncompressed RGB 4:4:4 Signals
- Supports 16 Channels of Embedded Audio
- Reference Input
- Up/Down/Cross Conversions
- Media Express Application Included
- macOS, Windows, and Linux Compatible
3,956.00AED VAT Excl.
Available on backorder
Your Payment is 100% Secure
The Blackmagic Design DeckLink Quad 2 is an 8-lane PCIe card that features eight bidirectional 12-bit SD/HD/3G-SDI connectors that are independently configurable to provide any combination of eight capture or playback channels at up to 1080p60. The card supports compressed video formats such as ProRes and DNxHD, as well as uncompressed 10-bit 4:2:2 and 4:4:4 video, making it ideal for use in both live broadcast and post-production. It is compatible with Mac, Windows, and Linux computers, and supported by a wide range of software applications. For use with applications that don’t capture video on their own, Blackmagic’s Media Express software is included, allowing you to capture, organize, and manage your media.
Key Features
- Eight bidirectional 12-bit SD/HD/3G-SDI connectors
- 8-lane PCIe interface compatible with Mac-, Windows-, and Linux-based workstations and servers
- Each SDI input and output can be a different video standard, as they’re all independent
- Single black burst/tri-sync reference input
- Supports uncompressed 10-bit 4:2:2 and 4:4:4 signals
- Cross-conversion between 720p and 1080p on video capture
- SD upconversion to 720p or 1080p on video capture
- HD to SD downconversion on video capture or playback
- Supports 16 channels of embedded audio per input/output
Included Software
Media Express
Disk Speed Test
LiveKey
Blackmagic Desktop Video Utility
Drivers for macOS, Windows 8/10, and Linux
Disk Speed Test
LiveKey
Blackmagic Desktop Video Utility
Drivers for macOS, Windows 8/10, and Linux
Supported Software Applications
Supported applications include:
DaVinci Resolve
Fusion
Apple Final Cut Pro X
Adobe Premiere Pro CC
Adobe After Effects CC
Adobe Photoshop CC
Avid Media Composer
Avid Pro Tools
Avid Symphony
Avid News Cutter
Steinberg Cubase
Steinberg Nuendo
Nuke
Tools On Air just:in, live:cut, just:play, and just:live
Softron OnTheAir
MovieRecorder and OnTheAir CG
Flash Media Live Encoder
Wirecast
Livestream Procaster
Resolume Avenue 4
Sony Vegas Pro
Corel VideoStudio Pro X4
CyberLink Power Director
MAGIX Video Pro X4
Vidblaster Pro & Studio and Broadcast
Uniplay
Playbox AirBox
CasparCG
Magicsoft CG
Xsplit Broadcaster
Imagine Communications Velocity and InfoCaster
DaVinci Resolve
Fusion
Apple Final Cut Pro X
Adobe Premiere Pro CC
Adobe After Effects CC
Adobe Photoshop CC
Avid Media Composer
Avid Pro Tools
Avid Symphony
Avid News Cutter
Steinberg Cubase
Steinberg Nuendo
Nuke
Tools On Air just:in, live:cut, just:play, and just:live
Softron OnTheAir
MovieRecorder and OnTheAir CG
Flash Media Live Encoder
Wirecast
Livestream Procaster
Resolume Avenue 4
Sony Vegas Pro
Corel VideoStudio Pro X4
CyberLink Power Director
MAGIX Video Pro X4
Vidblaster Pro & Studio and Broadcast
Uniplay
Playbox AirBox
CasparCG
Magicsoft CG
Xsplit Broadcaster
Imagine Communications Velocity and InfoCaster
| Weight | 0.3 kg |
|---|---|
| Dimensions | 18 × 14 × 3 cm |
| Host Connection | PCIe x8 (PCIe 2.0) |
| Shared Input/Output Connectors | 8 x BNC (3G-SDI) Male |
| Input Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps NTSC 60 fps PAL 50 fps |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio Input | SDI: 16-Channel |
| Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps NTSC 60 fps PAL (768 x 576) 50 fps |
| Embedded Audio Output | SDI: 16-Channel |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656 |
| Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input |
| OS Compatibility | Windows 8.1.10 or Later macOS 10.14.15 or Later Linux |
| Power Consumption | 22 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Certifications | C-Tick, CE, FCC, as per Manufacturer |
| Dimensions | 6.3" / 16 cm |
| Weight | 4.59 oz / 130 g |
