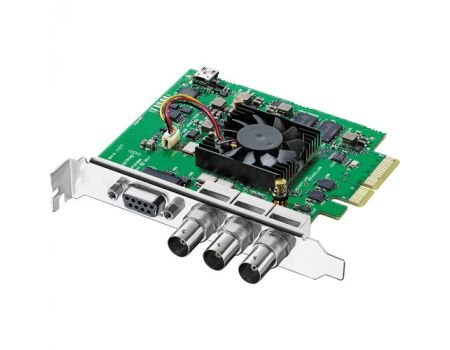

Blackmagic Design Decklink SDI 4K Capture & Playback Card
SKU: BDLKSDI4K
Key Features
- SD/HD/3G/6G-SDI Input/Output
- PCIe Interface
- UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
- 1080p 4:4:4 by Single-Link 3G-SDI
- 10-Bit Processing
- RS-422 Deck Control
- Internal Keying
- Reference Input
- Down/Up/Cross Conversions
- Mac OS X, Windows, and Linux Compatible
SKU:
BDLKSDI4K
Availability:
Out Of Stock
- 1,196.00 AED
- 1,196.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 14 x 14 x 3 cm
Weight: 0.2 kg
Description
xThe Decklink SDI 4K Capture & Playback Card from Blackmagic Design features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the Decklink SDI 4K includes RS-422 deck control, internal keying, and a reference input.
Decklink SDI 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. Decklink SDI 4K is compatible with Mac, Windows, and Linux based workstations.
Decklink SDI 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. Decklink SDI 4K is compatible with Mac, Windows, and Linux based workstations.
Specs
x| Host Connection | PCIe x1 (PCIe 1.0) |
| Video Input Connectors | 1 x BNC (6G-SDI) |
| Input Video Format | SDI (10-Bit 4:4:4/4:2:2) PAL at 50 fps NTSC 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
| Video Output Connectors | 1 x BNC (6G-SDI) |
| Output Video Format | SDI (10-Bit 4:4:4/4:2:2) PAL (768 x 576) at 50 fps NTSC 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
| HDCP Support | None |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Certifications | C-Tick, CE, FCC, as per Manufacturer |
| Dimensions | 3.75" / 9.53 cm |
| Weight | 4.5 oz / 128 g |
