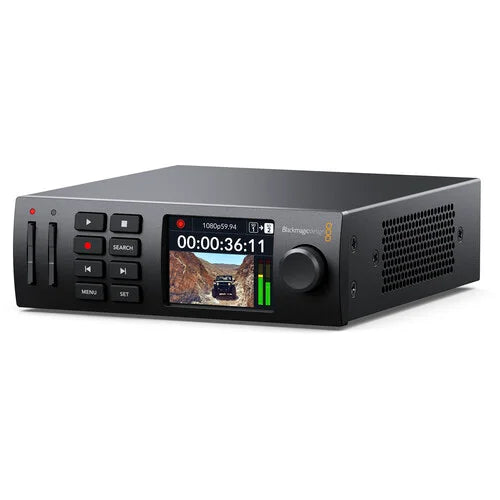

Blackmagic Design HyperDeck Studio HD Mini
SKU: HYPERD/ST/DAHM
Key Features
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
SKU:
HYPERD/ST/DAHM
Availability:
Out Of Stock
- 2,006.00 AED
- 2,006.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 30 x 18 x 7 cm
Weight: 1.5 kg
Description
xTake a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Mini. The 1 RU tall recorder is 1/3 of a rack wide and powers from 100 to 240 VAC, or via an optional 12 VDC power supply for portability. Featuring one 3G-SDI input, one each HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible, enabling you to input, record, and output/stream simultaneously. Supporting both reference and timecode in/out, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording of each camera with perfect sync for live and post-production work.
Two SD card slots allow you to capture with virtually unlimited recording time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Mini features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
We, Systec International FZE & LLC transform concepts into systems in the field of CCTV Surveillance, security, broadcasting & professional Audio-Video.
Past 2.5 decades we have executed variety of projects in different countries for Public & Private Institutions for CCTV systems. Turnkey studios, control room, OB Van projects, Professional A/V & communication systems.
Now setting up showroom in Dubai to make use of our expertise & serve UAE society directly & through system integrators, resellers & international visitors.We are currently hiring.
Contact us here or visit here for more.
Two SD card slots allow you to capture with virtually unlimited recording time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Mini features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
Video Inputs
It supports SD, HD, and select 3G signals over SDI
Supported Codecs
- ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
- DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
- H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
VTR-Style Controls
Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or play back video
Included Software
The HyperDeck Studio HD Mini includes Blackmagic OS and Blackmagic HyperDeck Setup
We, Systec International FZE & LLC transform concepts into systems in the field of CCTV Surveillance, security, broadcasting & professional Audio-Video.
Past 2.5 decades we have executed variety of projects in different countries for Public & Private Institutions for CCTV systems. Turnkey studios, control room, OB Van projects, Professional A/V & communication systems.
Now setting up showroom in Dubai to make use of our expertise & serve UAE society directly & through system integrators, resellers & international visitors.We are currently hiring.
Contact us here or visit here for more.
Specs
x| Video Input | 1 x BNC, 3G-SDI |
| Video Output | 1 x BNC, 3G-SDI 1 x HDMI Type A 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K) |
| Timecode | In: 1 x BNC out: 1 x BNC |
| Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) |
| Device Control | 1 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
| Supported Resolutions | 2K 2048 x 1080p: 30/29.97/25/24/23.98HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50SD NTSC PAL |
| SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108?1 |
| SDI Metadata Support | HD RP188 and Closed Captioning CEA?708 HDR Metadata Supported on SDI |
| Video Sampling | 4:2:2 YUV |
| Color Depth | 10-Bit |
| Color Space | REC 601 REC 709 REC 2020 |
| HDR Support | Hybrid Log?Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Autodetection of SD and HD |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs | ProRes
|
| Operating System | macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
| Rack Height | 1 RU |
| Power Supply | AC 100 to 240 VAC, 50/60 HzDC 12 VDC; 1 x Locking 5.5 mm Barrel |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm |
| Weight | 1.8 lb / 0.82 kg |
