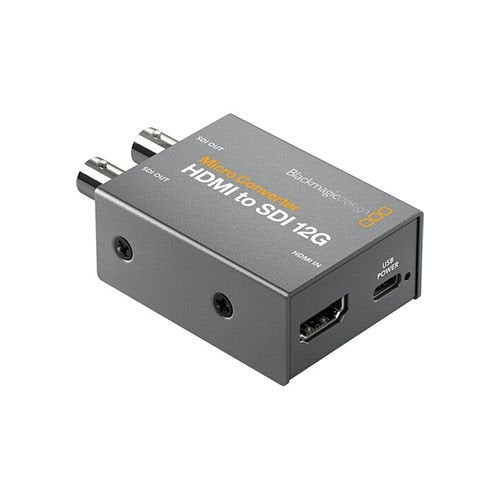

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
The pocket-sized Micro Converter HDMI to SDI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, HDMI copy protection, and support for a wide range of pro broadcast resolutions, including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the HDMI to SDI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A 5V power supply and an international plug adapter set is included with the converter.
Features
Dual SDI Outputs
- One HDMI input
- Two 12G-SDI outputs
- Selectable A and B level formats
Compact, Rugged Design
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
SDI & HDMI Timecode
- HD and SD timecode support
- Converts HDMI timecode to SDI
SDI Re-Clocking
- Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio
- Supports embedded HDMI input and embedded SDI output
LED Indicators
- LED indicators for video and power signals
Versatile Power Options
- Power from a monitor, laptop, or other component using the USB Type-C port

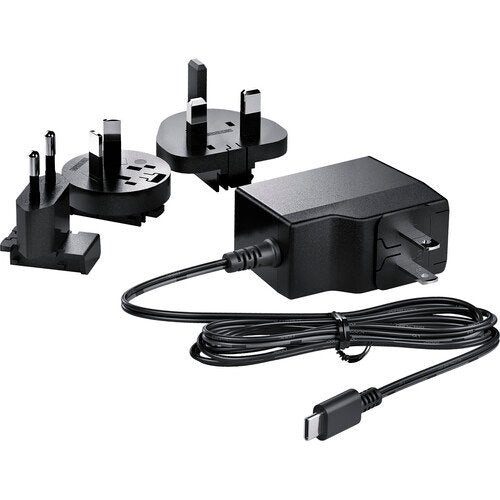

- A 5V power supply and an international plug adapter set is included
Operating System Support
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
548.00AED VAT Excl.
| Weight | 0.4 kg |
|---|---|
| Dimensions | 15 × 11 × 8 cm |
| In the Box | Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply 5V Power Supply International Plug Adapter Set |
