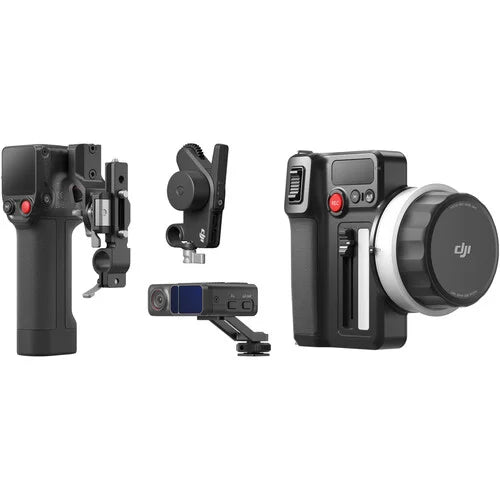

DJI Focus Pro All-In-One Combo

The DJI Focus Pro All-In-One Combo is a comprehensive solution designed to provide precise FIZ (Focus, Iris, Zoom) control for manual camera lenses. This combo package comprises essential components such as the LiDAR unit, Focus Pro Motor, Focus Pro Grip, and a hand unit, enhancing autofocus accuracy and enabling control over greater distances. All these components are conveniently housed in a carrying case, ensuring easy transportation to your next filming location.

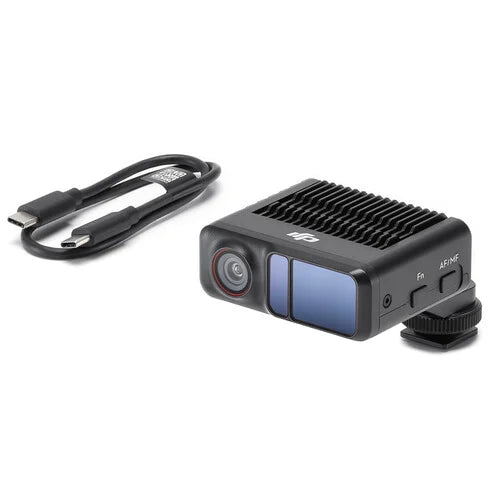

DJI Focus Pro LiDAR

Tailored for compatibility with both the RS 3 Pro and RS 4 Pro gimbal stabilizers, the DJI Focus Pro LiDAR unit simplifies intelligent autofocus operations, particularly beneficial for solo cinematographers. Featuring an expanded range of 76,800 ranging points, a swift 30 Hz refresh rate, and a maximum detection area of 65.6′, this LiDAR unit excels in focusing on moving subjects. Its versatility extends to accommodating various lens configurations, from wide-angle to telephoto.

Equipped with a built-in camera boasting a 30mm focal length equivalent and a 70° field of view, the unit ensures precise focus accuracy. Users can seamlessly switch between wide-angle, telephoto, and focus spot modes to suit diverse shooting requirements. Enhanced tracking capabilities, such as ActiveTrack Pro, are unleashed when paired with the RS 4 Pro gimbal, optimizing recognition and tracking performance, especially for distant or multiple subjects. The LiDAR unit can be easily mounted onto RS 3 or 4 Pro series gimbals or cameras via cold shoe or 1/4″-20 thread, drawing power through a USB-C cable.

Autofocus Functionality

When combined with the Focus Pro Motor, the LiDAR unit enables autofocus functionality with compatible lenses. Leveraging its extensive range of 76,800 ranging points within a 1.6 to 65.6′ area, users can achieve precise autofocus control. Additionally, the built-in camera with a 30mm equivalent focal length and a wide 70° field of view caters to a broad range of focusing scenarios.

Enhanced AutoTrack Pro

The upgraded ActiveTrack Pro, featured in the Focus Pro LiDAR Autofocus, now directly accesses images from the camera embedded within, eliminating the need for the Ronin Image Transmitter. With ActiveTrack Pro, monitoring or framing the subject becomes seamless on the OLED touchscreen of the RS 4 Pro. Even if the subject momentarily disappears from view, the LiDAR unit swiftly reacquires focus.

User-Friendly Modes

• Tracking: Identify and track up to five subjects simultaneously, selecting one for continuous monitoring.
• Smart Object Identification: Distinguishes between humans and vehicles.
• Flex Spot: Engage focus lock by framing the subject and pressing the gimbal trigger; autofocus is supported.
• Wide: Automatically detects subjects and maintains focus; compatible with both autofocus and ActiveTrack functionalities.

Compatibility with Focus Pro Motor

Utilize the USB-C data port to connect the LiDAR unit with the Focus Pro Motor for cinematic autofocus capabilities post-calibration. Effortlessly toggle between manual and autofocus modes by pressing the M button on the gimbal.

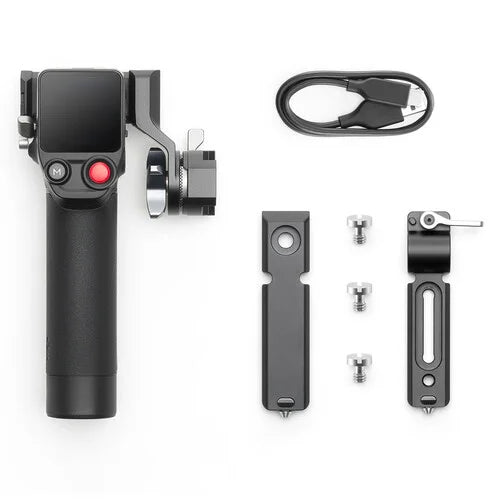

DJI Focus Pro All-In-One Combo also includes DJI Focus Pro Grip

Mount the DJI Focus Pro Grip onto either side of your DJI R3 Pro or RS 4 Pro gimbal to take charge of your Focus Pro Motor setup for precise FIZ (Focus, Iris, Zoom) control. Featuring an integrated 1.8″ touchscreen display, front dial, mode button, and record buttons, the grip offers intuitive handling of camera and lens operations. Activating the Autofocus (AMF) mode toggles autofocus, synchronizing the front dial’s rotation to visually monitor focus status on the monitor and feel tactile feedback. Switching between manual and autofocus modes is straightforward.

The grip incorporates three USB-C ports to enable communication between the Focus Pro LiDAR unit, Focus Pro Motor, and your camera. Wireless connectivity via 2.4 GHz and Bluetooth allows seamless transmission. Utilize the built-in NATO clamp and provided adapters to affix the grip onto either side of your gimbal setup. With a built-in battery, the grip sustains operation for up to 2.5 hours and supports PD fast charging via the USB-C port.

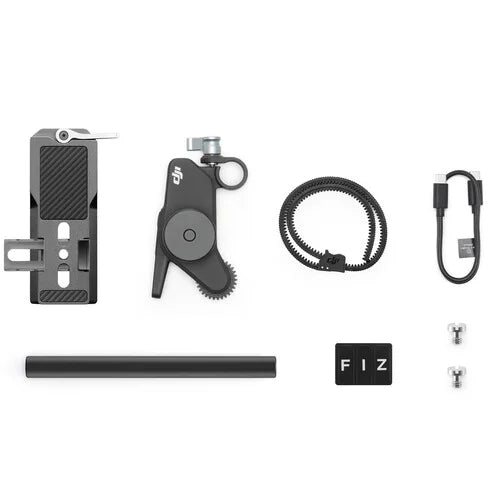

DJI Focus Pro Motor is Included in DJI Focus Pro All-In-One Combo

Enhance your camera setup on compatible RS gimbal stabilizers with the DJI Focus Pro Motor, delivering precise control over focus, iris, or zoom functions. This updated motor boasts a 30% speed boost compared to its predecessor, featuring 300 gear teeth and 10ms low latency. Control the motor wirelessly via 2.4 GHz transmission technology from distances of up to 524.9′.

In zoom control mode, the Focus Pro executes Power Zoom for PZ lenses, Clear Image Zoom, and external focus motor zoom for refined focusing. Its revamped 15mm rod mount ensures broader compatibility with various camera mounting configurations. Pairing two Focus Pro Motors with the DJI RS 4 Pro enables convenient focus adjustment using the gimbal’s onboard dial and zoom control via the onboard joystick, streamlining lens control operations.

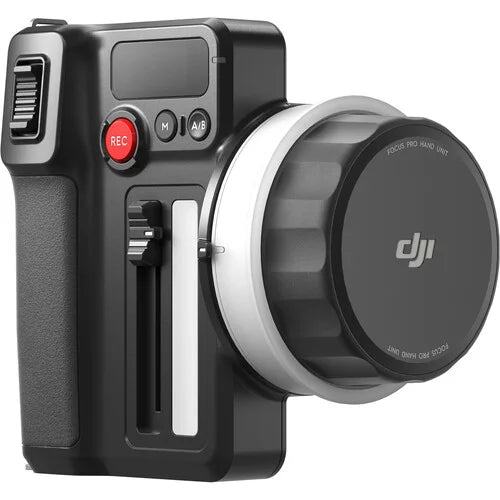

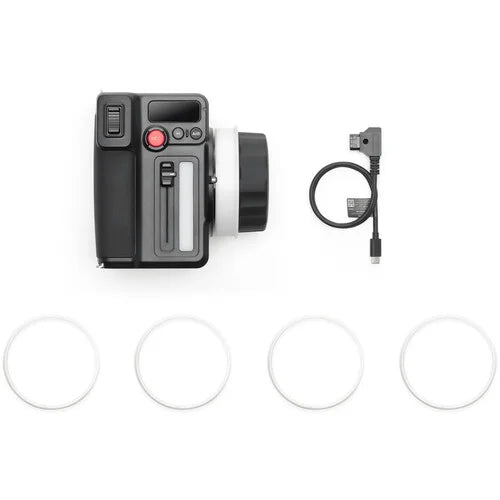

DJI Focus Pro Hand Unit

Employ the DJI Focus Pro Hand Unit to streamline FIZ control over your manual lenses in conjunction with the Focus Pro Motor and RS 3/4 Pro gimbal stabilizer. Utilizing integrated 2.4 GHz technology, you can manage the Focus Pro Motor from distances of up to 524.9′. Activating AMF mode triggers autofocus, prompting the focus knob to rotate synchronously, enabling cinematographers to visually monitor focus status on the screen and via tactile cues. Seamless toggling between manual and automatic modes enhances operational fluidity.

The A-B electronic marking points offer tactile feedback for endpoints and facilitate step-less damping adjustment, ensuring precise focusing. Additionally, the unit enables camera recording toggling via Bluetooth connectivity. A 1.09″ touchscreen display conveniently showcases current settings. Power is supplied to the hand unit via an NP-F550 battery.
