Hollyland Pyro H 4K HDMI Wireless Video Transmission System

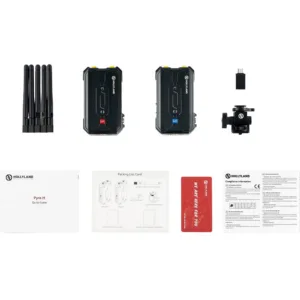

Add 4K 30fps wireless video transmission to your production with the versatile Pyro H 4K HDMI Wireless Video Transmission System from Hollyland. This system includes a wireless transmitter, a wireless receiver, five antennas, a USB-A to USB-C adapter, and an adjustable shoe adapter mount. The transmitter, which provides HDMI input, features extremely low 60 ms latency and supports line-of-sight transmission up to 1300′ to the included receiver. In broadcast mode, supporting up to four receivers and two mobile devices, the system maintains a range of up to 650′. The receiver outputs to HDMI, and the transmitter includes an HDMI loop output for local monitoring.

Long Distance, High Quality of Pyro H

The Pyro H’s Wi-Fi broadcast technology allows one transmitter to connect to four receivers with stable signals, offering flexibility for additional monitoring on set. In Broadcast mode, the transmitter can connect to up to four receivers with a line-of-sight range of 650′. Without Broadcast mode, it connects to two receivers and two mobile devices, extending the range up to 1300′.

Strong Signal Strength of Pyro H

With a stable transmission range of up to 1300′, the Pyro H maintains latency as low as 60ms. Unlike the Mars series, which sacrifices image quality and latency for transmission range, the Pyro H excels in maintaining video quality and minimizing latency over greater distances. The transmitter/receiver combo offers two modes: HD mode for superior image quality with a bitrate up to 12 Mb/s and Smooth mode for dynamically adjusted latency.

HDMI Loop Output

The transmitter’s HDMI output port allows video signals to be displayed on a monitor without degrading the transmitted signal’s quality. This feature enables users to easily monitor the transmitted content and make necessary adjustments.

Pyro H offers Crisp and Sharp Images

Capable of up to 4K30 transmission, the Pyro H delivers images with exceptional clarity, detail, and realism, making it an excellent choice for professional applications such as broadcasting and filmmaking.

USB Video Class

UVC ensures seamless compatibility with a variety of devices, including computers, without the need for additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it ideal for scenarios like live streaming and video conferencing.

Smart Channel Scan

When powered on, the Pyro H automatically selects a high-quality frequency channel, optimizing the user experience from the start. Users can also activate the smart channel scan function on the receiver to get real-time feedback on the frequency status, ensuring an uninterrupted and reliable experience.

Easy Setup

The Pyro H supports preset grouping and pairing, which eliminates the need for users to repetitively and manually configure the transmitter and receivers.

Continuous Power, Multiple Options

The Pyro H supports DC input, NP-F batteries, and a USB-C power supply (5-12V). The USB power supply option is particularly convenient when using stabilizers, as it removes the need for larger NP-F batteries, reducing overall weight and enhancing maneuverability.
