IDX DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery
- 14.54V 193Wh V-Mount Battery
- SMBus Data Info Displays in Viewfinder
- Handles up to 14A Loads
- Two 80W D-Tap Accessory Outputs
- D-Tap & USB PD Fast Charging Port
- Battery Circuit Protection
- V-Torch 5-LED Battery Life Indicator
- Compatible with UC-PD1 & VL-DT1 Chargers
Original price was: 1,470.00AED.1,397.00AEDCurrent price is: 1,397.00AED. VAT Excl.

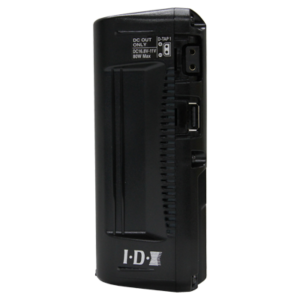

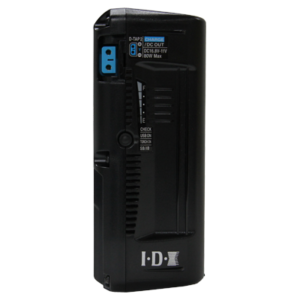

The DUO-C198P is the successor of the popular DUO-C198 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With its ultra-robust 193Wh capacity and compact 2.4lb design, the DUO-C198P can provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C198P also includes two built-in D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.
Power your professional V-mount cameras such as the RED WEAPON or ARRI ALEXA Mini along with other professional devices with this DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery from IDX System Technology. Featuring a V-mount, the compact battery is only 2.3″ thick, but packs a large 193Wh, 9.9Ah capacity, providing 14.54V to your gear with a 14A maximum draw. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required, and its battery data information displays in most cameras’ viewfinders.
buy IDX batteries today from Systec international
DUO-C198P Key Features
- Suitable for cinema camera productions that need a high-capacity battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
- V-Torch light for easy attachment to the plate
- Handles up to 14A loads
- Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
- USB Type-C output port with 60W PD fast charging input
- Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
- Antiviral and antimicrobial body for hygienic peace of mind
find out more DUO-C198P
| Weight | 1.2 kg |
|---|---|
| Dimensions | 19 × 12 × 8 cm |
IDX System Technology Endura DUO-CP Specs
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 9900 mAh / 193 Wh |
| Output Voltage | 14.5 VDC |
| Maximum Load | 154 W, 14 A (Peak) |
| Accessory Port | 1 x D-Tap Input/Output 80 W Regulated 1 x D-Tap Output 80 W Regulated 1 x USB Type-C Input/Output 60 W Regulated |
| Maximum Load (Accessory Port) | 80 W (D-Tap) 60 W (USB Type-C) |
| USB Output | 5 V, 3 A |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Charging Temperature | 32 to 104°F / 0 to 40°C |
| Discharging Temperature | -4 to 113°F / -20 to 45°C |
| Dimensions (W x H x D) | 3.74 x 5.75 x 2.32" / 9.5 x 14.61 x 5.89 cm |
| Weight | 2.42 lb / 1.1 kg |
