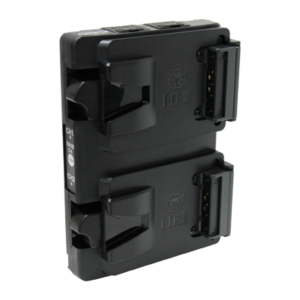

IDX System Technology A-Vmicro2 Dual V-Mount Hot-Swap Plate for Imicro Batteries
Key Features
- Works with IDX Imicro-98 & 150 Batteries
- Dual V-Mount Plate, 154W Maximum
- 1 x USB Type-C and 2 x D-Tap Outputs
- Sequential Charge and Discharge
- Up to 80W D-Tap and 5V USB Output
- Works with IDX V-Mount Charger

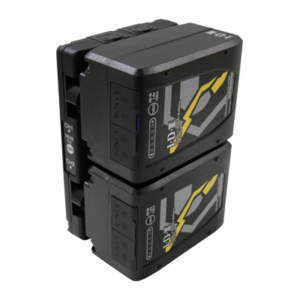

Power your camera and accessories using two Imicro-98 or Imicro-150 batteries with the A-Vmicro2 Dual V-Mount Hot-Swap Plate for Imicro Batteries from IDX. The A-Vmicro2 is designed for two IDX Imicro V-mount batteries that can be hot-swapped. The plate can utilize an IDX V-mount charger to charge the batteries.

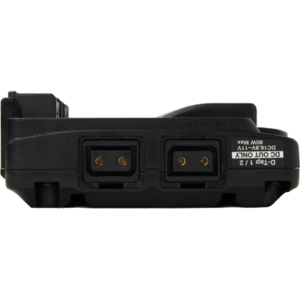

The plate features two D-Tap outputs with a maximum output of 80W to power your camera, lights, or accessories. It also features one 5V, 2.3A USB Type-C output to power smaller accessories such as a smartphone or tablet. The batteries charge and discharge sequentially and will automatically swap to the next battery when the first battery’s charging process is complete.
Compatibility
IDX Imicro-98 and Imicro-150 V-mount batteries
IDX V-mount chargers
IDX V-mount chargers
Your Payment is 100% Secure
| Weight | 0.4 kg |
|---|---|
| Dimensions | 18 × 12 × 5 cm |
| Output Connectors | 2 x D-Tap 80W max 1 x USB-C DC 5V / 2.3A max |
| Compatibility | IDX Imicro Battery |
| Battery Connection Terminal Rating | 154W max(16.8V/9.2A – 11V/14A) |
| Main Connector Rating | 154W max(16.8V/9.2A – 11V/14A) |
| Included Accessories | M3 x 10 Double SEMS Screws (qty. 4) |
You may also like...

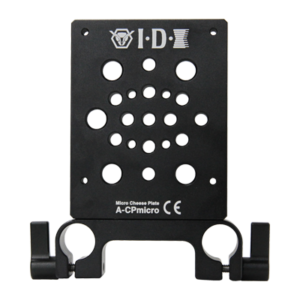

IDX A-CPMICRO Multipurpose Cheese Plate for P-Vmicro V-Mount Plate
SKU: A-CPMICRO 295.00AED VAT Excl. Add to cartSale 5%

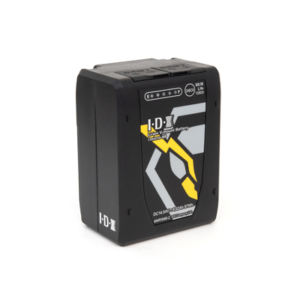

IDX System Technology Imicro 98 14.5V 97Wh Li-Ion V-Mount Battery
SKU: Imicro-98 Original price was: 1,220.00AED.1,159.00AEDCurrent price is: 1,159.00AED. VAT Excl. Add to cartSale 23%

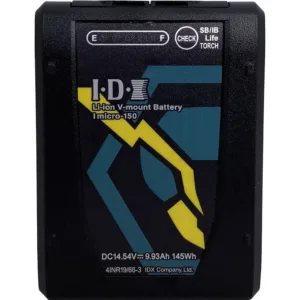

IDX Imicro-150 14.5V 145Wh Li-Ion V-Mount Battery
