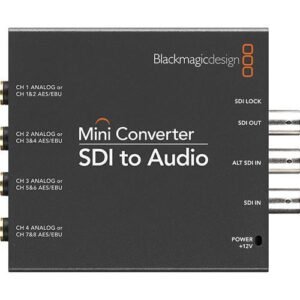

Mini Converter SDI to Audio Blackmagic Design
SKU: CONVMCSAUD
Key Features
- Auto SD/HD Switching
- 3GB/s Technology
- With Power Supply
- 975.00 AED
865.00 AED- 975.00 AED
- Unit price
- per
Dimensions: 14.6 x 14.09 x 6.6 cm
Weight: 0.483 kg
Description
xThe Blackmagic Design Mini Converter SDI to Audio is a professional SDI audio de-embedder designed to extract embedded audio from SDI video signals. It supports SD, HD, and 3G-SDI formats up to 1080p60, making it suitable for broadcast, studio, live production, and professional AV environments.
The converter provides four channels of balanced analog audio output and eight channels of balanced AES/EBU digital audio output through professional 1/4-inch connections. This allows SDI audio to be connected directly to mixers, audio monitors, analog decks, and other professional audio equipment.
For reliable video connectivity, the Mini Converter SDI to Audio includes one SDI input, one redundant SDI input, and one SDI loop output. The redundant input can automatically take over if the primary SDI signal is lost, helping maintain signal continuity in professional production environments.
The unit supports automatic detection of SD, HD, and 3G-SDI signals and provides SDI re-clocking for stable signal output. Configuration and firmware updates can be performed through the USB 2.0 interface using compatible Mac and Windows software.
For more professional video equipment, explore our Production & Studio range and Video products.
Frequently Asked Questions
What is the Blackmagic Design Mini Converter SDI to Audio used for?
The Mini Converter SDI to Audio is used to de-embed audio from SDI video signals and output it as balanced analog or AES/EBU digital audio for use with professional audio equipment.
How many audio channels can the converter output?
The converter provides 4 channels of balanced analog audio or 8 channels of balanced AES/EBU digital audio.
What SDI formats does the Mini Converter SDI to Audio support?
It supports SD-SDI, HD-SDI, and 3G-SDI signals, with automatic detection of the incoming video standard.
Does the Mini Converter SDI to Audio support 1080p60?
Yes. The converter supports SD and HD video formats up to 1080p60.
Does it have a redundant SDI input?
Yes. It includes an ALT SDI input that can automatically switch over if the primary SDI input fails.
Does the converter provide an SDI loop output?
Yes. It includes one SDI loop output, allowing the original SDI video signal to be passed through to another device.
Can I connect the converter to an audio mixer?
Yes. The balanced analog audio outputs can be connected to compatible professional audio equipment such as mixers, audio monitors, and analog decks.
Can the Mini Converter SDI to Audio be updated?
Yes. Firmware updates and configuration can be performed through its USB 2.0 interface using compatible Mac and Windows software.
Specs
x| Component | Specification |
|---|---|
| SDI Video Inputs | 1 x SD, HD or 3G-SDI; 1 x ALT SDI input for automatic switch over if the main input fails |
| SDI Video Output | 1 x SDI loop output |
| Analog Audio Outputs | 4 channels of professional balanced analog audio |
| Digital Audio Outputs | 8 channels of professional balanced AES/EBU audio |
| SDI Redundant Input | Automatically switches over if the main SDI input is lost |
| Multi-Rate Support | Automatic detection of SD, HD or 3G-SDI |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M Level B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates | 270 Mb/s, 1.5G and 3G |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| SDI Auto Switching | Automatically selects between SD, HD and 3G-SDI |
| Reclocking | Yes |

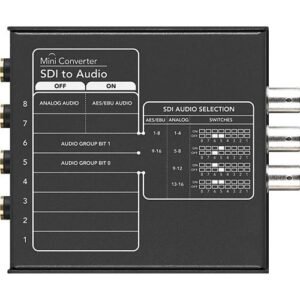

| Settings Control | Mini switches or USB software |
| Software Updates | USB 2.0 high-speed interface, 480 Mb/s |
| Operating Systems | macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 5.52 Watts |
| Operational Voltage Range | 12–15V DC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Mini Converter SDI to Audio and 12V universal power supply with international socket adapters |
| Warranty | 3-year limited manufacturer's warranty |
