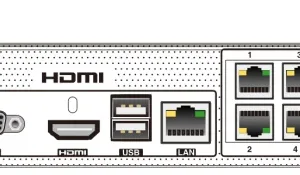

Panansonic PM-EN8CH 8 Channels Network Video Recorder

Panasonic PM-EN8CH 8-Channel Network Video Recorder

The PM-EN8CH is an advanced 8-Channel Network Video Recorder (NVR), designed for high-definition recording and efficient management of IP cameras. With support for 8 PoE ports, this NVR simplifies the installation of surveillance systems by powering connected cameras directly through Ethernet cables. Ideal for small to medium-sized security installations, it provides comprehensive features for playback, backup, and remote access.

Key Features:

• 8 IP Camera Channels: Supports 8 channels of IP camera input with resolutions ranging from 6MP down to CIF, providing flexibility for various camera types.
• H.265/H.265+/H.264 Compression: Efficient video compression standards minimize storage needs while maintaining high-quality video streams.
• Simultaneous Playback: Offers 8-channel simultaneous playback for easy review of recorded footage.
• High-Resolution Display: Outputs 1080P high-definition video via HDMI and VGA outputs.
• Multi-Mode Recording: Supports manual, timed, motion detection, sensor-based, and AI recording for flexible security setup.
• Smart Search: Search through footage using time slice, event, tag, and smart search for quick access to important moments.
• Video Content Analytics (VCA): Supports advanced analytics like region intrusion detection, tripwire, and other smart events.
• Remote Monitoring: Access live footage and playback remotely through mobile apps for iOS and Android or via Web Client.
• PTZ Control: Supports PTZ presets (up to 255) and auto cruise (up to 8 cruises), offering control over pan, tilt, and zoom cameras.

Specifications:

• Operating System: Embedded Linux
• Video Inputs: 8-channel IP input
• Video Compression: H.265S, H.265+, H.265, H.264
• Audio Input/Output: 8-channel IPC audio input, G.711 (U/A) compression
• Recording Resolution: Supports 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF resolutions
• Playback: 1-channel 6MP or 4-channel 1080P live view and playback
• Network Bandwidth: 64Mbps incoming and outgoing bandwidth
• PoE Ports: 8 PoE ports (100Mbps), providing up to 72W total power output
• Storage: 1 SATA port, supporting up to 10TB HDD
• USB Ports: 2 USB 2.0 ports for backup and other functions
• Power Supply: DC48V/1.8A (power adapter included)
• Power Consumption: ≤50W (excluding HDD and PoE)
• Dimensions: 255mm x 222mm x 42mm (W x D x H)

Additional Features:

• Protocols Supported: TCP/IP, HTTP, HTTPS, DHCP, DDNS, RTP, RTSP, IPv4/IPv6, FTP, SNMP, ONVIF, and more.
• Client Connection: Supports up to 64 users accessing the system simultaneously.
• PTZ Support: Preset up to 255 positions and 8 cruise paths for PTZ cameras.
• Alarm Inputs/Outputs: Configurable alarm inputs and outputs for triggering actions like recording or snapshots.
• Mobile App Support: Remote access and control via mobile applications for iOS and Android.

Certifications:

• EMC: CE, EN55032:2015+A11:2020, EN IEC 61000-3-2:2019+A1:2021
• Safety: IEC 62368-1:2020+A11:2020
• RoHS Compliance: 2011/65/EU

Applications:

The PM-EN8CH is ideal for homes, retail shops, offices, and other small-scale installations where reliable, high-quality recording and remote access are essential. With PoE support and smart analytics, this NVR offers a comprehensive security solution for modern surveillance needs.
