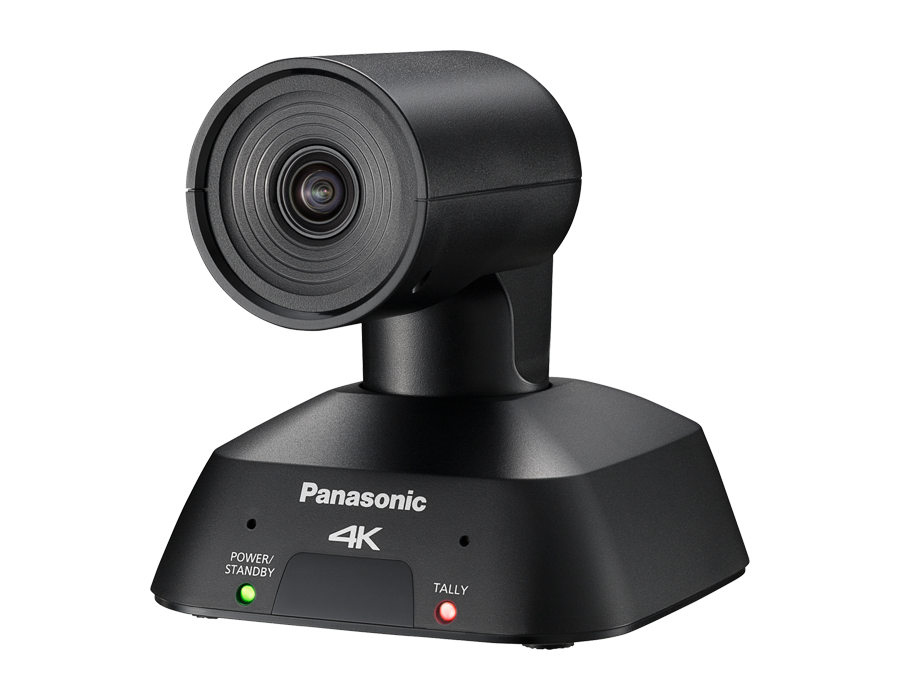

Panasonic AW-UE4KG (Black)
SKU: AW-UE4KG
Key Features
- Single-Cable USB/LAN (PoE) Connectivity
- UHD 4K30 and RTMP/RTMPS Direct Streaming
- 111° FOV for Large Spaces, eSports
- Stereo Mic with Mute and ACL Functions
- LPCM/AAC-LC 48 kHz, 16-Bit Audio Capture
- ePTZ (4x Zoom)
- HDMI Video Output
- AW-RP60GJ & AW-RM50G Controller Support
SKU:
AW-UE4KG
Availability:
Out Of Stock
- 3,190.00 AED
- 3,190.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 31 x 26 x 26 cm
Weight: 3 kg
Description
xIn black, the AW-UE4KG Compact 4K PTZ Camera from Panasonic can be used on a desktop or mounted to capture and stream up to UHD 4K30 video and stereo audio in an ultrawide 111° FOV. It has a built-in stereo mic and mute and ACL functions, and supports LPCM (USB) / AAC-LC (IP) 48 kHz, 16-bit audio capture.
You can connect to a PoE hub or to a computer over USB for power and data transfer in a simple, single-cable solution. Whether you're connected to a hub or not, up to 328' Cat 5e or higher cables are supported for streaming. An HDMI output is also provided.
The Compact 4K PTZ camera can be used for large-auditorium lecture capture, video conferencing, e-Sports live streaming, and many other applications.
Up to 4x magnification is allowed via digital zoom, and digital pan/tilt can be applied once you're zoomed in to let you find the optimal shot.
The camera supports the Panasonic AW-RP60GJ and AW-RM50G controllers (however, without slow shutter, LDC, priority mode, mirroring, and language settings control).
RTMP/RTMPS protocols are supported for direct streaming to services such as YouTube Live or Facebook Live.
contact us
Visit us
Specs
x| Image Sensor | 1-Chip 1/2.5" MOS Sensor |
| Gain | 0 to 42 dB |
| Minimum Illumination | 4 Lux at 1/60 Shutter Speed |
| White Balance | 3200 to 5600K |
| Shutter Speed | 1/1 to 1/160,000 sec |
| Max Digital Zoom | 4x |
| Built-In Microphone Type | Stereo |
| Flip / Mirror Support | Mirror (Vertical) |
| Focal Length | 2.2mm (35mm Equivalent Focal Length: 13.4mm) |
| Field of View | Horizontal: 111° Vertical: 75° |
| Maximum Aperture | f/2.4 |
| Minimum Focus Distance | Wide: 27.6" / 70.0 cm |
| Output Formats | HDMI, RJ45, USB: 3840 x 2160 at 25, 29.97, 30 fps 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming | H.264, H.265, MJPEG: 2160p at 25p, 29.97p, 30p |
| Movement Range | Pan: 220° Tilt: 50° |
| Tally Light | Yes |
Interfaces
| Video Output Connectors | 1 x HDMI Type A 1 x RJ45 1 x USB 3.0 Type-C |
| PoE Support | PoE 802.3af |
| Power Consumption | Power Supply: 1 A PoE: 0.2 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
| Tripod Mounting Thread | 1 x 1/4"-20 Female |
| Dimensions | 54.7 x 51.6 x 48.4" / 139 x 131 x 123 cm |
| Weight | 1.1 lb / 0.5 kg |
