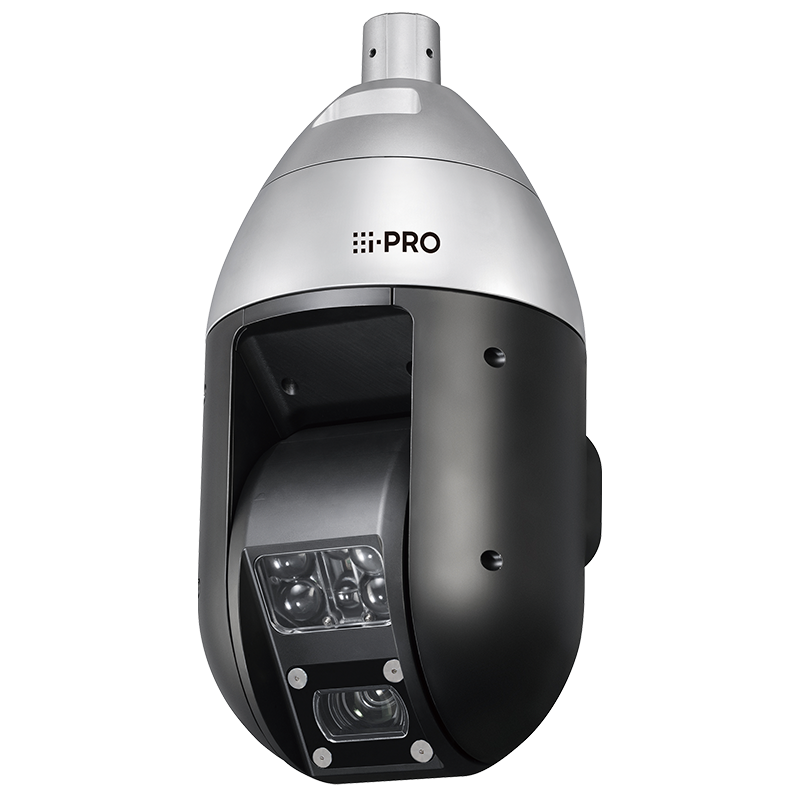

WV-X6533LN i-PRO Extreme H.265 IR-PTZ camera
SKU: WV-X6533LN
Key Features
- Full-HD 1920x1080 up to 60fps
- Long distance IR illumination
- Intelligent Zoom Stabilization with 40x optical zoom
- ClearSight Coating
- Durable Pan/Tilt gear mechanism
- iA (intelligent Auto)
- Color night vision (0.001 to 0.015 lx)
- IP66, IK10 certified, Defroster
- i-VMD License Bundled
- Fiber Optic Media Converter Unit (Optional WV-X65F1)
SKU:
WV-X6533LN
Availability:
In stock
- 15,182.00 AED
- 15,182.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 61 x 38 x 37 cm
Weight: 10.5 kg
Description
xiPro Extreme WV-X6533LN is a 2MP(1080p) / 60 fps PTZ Network Camera is based on the concept of "i-PRO EXTREME".
Capture video evidence in even challenging environments with the iPro Extreme WV-X6533LN 2MP Outdoor PTZ Network Dome Camera with Night Vision from i-PRO. Featuring Intelligent Auto (iA) firmware, the WV-X6533LN monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing image distortion from motion blur. The camera's 144 dB dynamic range delivers balanced exposure in extreme backlit environments and in scenes with sudden changes in lighting.
Extreme image quality for evidence capturing under challenging conditions- Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 350 m (1150 feet) irradiation distance- Long-distance vision with high power 40x zoom lens and Intelligent Zoom Stabilization with gyroscope- Sharp and clear image of fast moving vehicles with Intelligent Auto and ClearSight Coating- Outstanding low light performance in true color with low noise for night time applications- Environmental durability: IP66, IK10, Long life Pan/Tilt gear mechanism
Extreme H.265 compression with new Smart Coding- Longer recording, less storage compared to H.264 based compression techniques- New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in goodpicture quality while lowering your bandwidth*Region of Interest
buy it today from Systec international
Extreme Analyticsi-VMD (Intelligent Video motion detection) notifies the administrator of changes to situations or dangers.Software* licenses can be used free of charge. i-VMD Extension SoftwareLicense requires activation procedure.
Capture video evidence in even challenging environments with the iPro Extreme WV-X6533LN 2MP Outdoor PTZ Network Dome Camera with Night Vision from i-PRO. Featuring Intelligent Auto (iA) firmware, the WV-X6533LN monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing image distortion from motion blur. The camera's 144 dB dynamic range delivers balanced exposure in extreme backlit environments and in scenes with sudden changes in lighting.
Extreme image quality for evidence capturing under challenging conditions- Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 350 m (1150 feet) irradiation distance- Long-distance vision with high power 40x zoom lens and Intelligent Zoom Stabilization with gyroscope- Sharp and clear image of fast moving vehicles with Intelligent Auto and ClearSight Coating- Outstanding low light performance in true color with low noise for night time applications- Environmental durability: IP66, IK10, Long life Pan/Tilt gear mechanism
Extreme H.265 compression with new Smart Coding- Longer recording, less storage compared to H.264 based compression techniques- New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in goodpicture quality while lowering your bandwidth*Region of Interest
buy it today from Systec international
Extreme Analyticsi-VMD (Intelligent Video motion detection) notifies the administrator of changes to situations or dangers.Software* licenses can be used free of charge. i-VMD Extension SoftwareLicense requires activation procedure.
Specs
x| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color : 0.015 lx, BW : 0.006 lx (F1.6, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx (F1.6, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.001 lx, BW : 0.0004 lx (F1.6, Maximum shutter : max. 16/30s, AGC : 11) |
| Intelligent Auto | On / Off |
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 144 dB (Super Dynamic : On) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) |
| IR LED Light | High / Middle / Low / Off Maximum irradiation distance 350 m {approx. 1150 ft}(AC 24 V/ Tested PoE injector) 150 m {approx. 500 ft}(PoE+ device) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type4 Bundled License |
| Stabilizer | On / Off (available only in the 30 fps mode) |
| Privacy Zone | Filling / Pixelate / Off (up to 32 zones available) |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) |
| Zoom Ratio | 40 x Optical zoom (Motorized zoom / Motorized focus) |
| Digital (Electronic) Zoom | 16 x |
| Focal Length | 4.25 mm – 170 mm {5/32 inches – 6-11/16 inches} |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.95 (TELE) |
| Focus Range | 3.0 m {9 ft 10-1/8 inches} – ? |
| Angular Field of View | [16 : 9 mode] Horizontal : 1.9 ° (TELE) – 66 ° (WIDE) Vertical : 1.1 ° (TELE) – 39 ° (WIDE) [4 : 3 mode] Horizontal : 1.4 ° (TELE) – 51 ° (WIDE) Vertical : 1.1 ° (TELE) – 39 ° (WIDE) |
| Panning Range | 360° Endless panning |
| Panning Speed | Manual : Approx. 0.065°/s – 150°/s Preset : Up to approx. 300°/s |
| Tilting Range | Operational range : –30° – +210° Recommended range : 0° – 180° |
| Tilting Speed | Manual : Approx. 0.065°/s – 150°/s Preset : Up to approx. 300°/s |
| Preset Positions | 256 positions |
| Auto Mode | Auto track / Auto pan / Preset sequence / Patrol |
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Camera Control | Pan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX, Rec. on SD, Log, Viewer software |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | [16 : 9] 1920×1080 / 1280×720 / 640×360 / 320×180 [ 4 : 3] 2048×1536* / 1280×960 / 800×600 / VGA / 400×300 / QVGA * Used by super resolution techniques |
| H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | [Smart Facial Coding]* On(Smart Facial Coding)/ On(AUTO VIQS)/ Off *Smart Facial Coding is only available with Stream(1).[GOP(Group of pictures) control] On(Frame rate control)*/ On(Advanced)*/ On(Mid.)/ On(Low)/ Off *On(Frame rate control) and On(Advanced) are only available with H.265. |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| Maximum Concurrent Access Number | 14 (Number of sessions that can connect to cameras at the same time) *Depends on network conditions |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad / iPhone, Android TM mobile terminals |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm, Auto track alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Audio Input | ø3.5 mm stereo mini jack (Audio input is monaural.) Input impedance: Approx. 2 k? (unbalanced) (Applicable microphone : Plug-in power type) Supply voltage : 4.0 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Approx. 600 ? (unbalanced) |
| External I/O Terminals | ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input), ALARM IN2(Alarm input 2/ ALARM OUT), ALARM IN3 (Alarm input 3/ AUX OUT) (x1 for each) |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassA, EN55024 |
| Power Source and Power Consumption | AC24 V 3.4 A, Approx. 55 W PoE+ (IEEE802.3at compliant): DC 54V 470 mA, Approx. 25 W(Class4 device) Tested POE Injector (60 W) : DC 54V 1.0 A, Approx. 50 W |
| Ambient Operating Temperature | –50 °C to +60 °C {–58 °F to +140 °F} (AC 24 V/ Tested PoE injector (60 W))* –30 °C to +60 °C {–22 °F to +140 °F} (PoE+ device)* {Power On range: –30 °C to +60 °C (–22 °F to +140 °F)} * When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +45°C {+113 °F}. |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC62262) |
| Wind Resistance | up to 40 m/s {approx. 89 mph} |
| Dimensions | Maximum ø249 mm × 465 mm (H){ø9-13/16 inches × 18-5/16 inches (H)} |
| Mass (Approx.) | Approx. 8.2 kg {18.10 lbs} (including attachment pipe : Approx. 200 g {0.44 lbs} and cable cover.) |
| Finish | Main body : Aluminum die cast, Fine silver Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Front Panel : Polycarbonate resin (with ClearSight coating (rain wash coating)), Clear |
