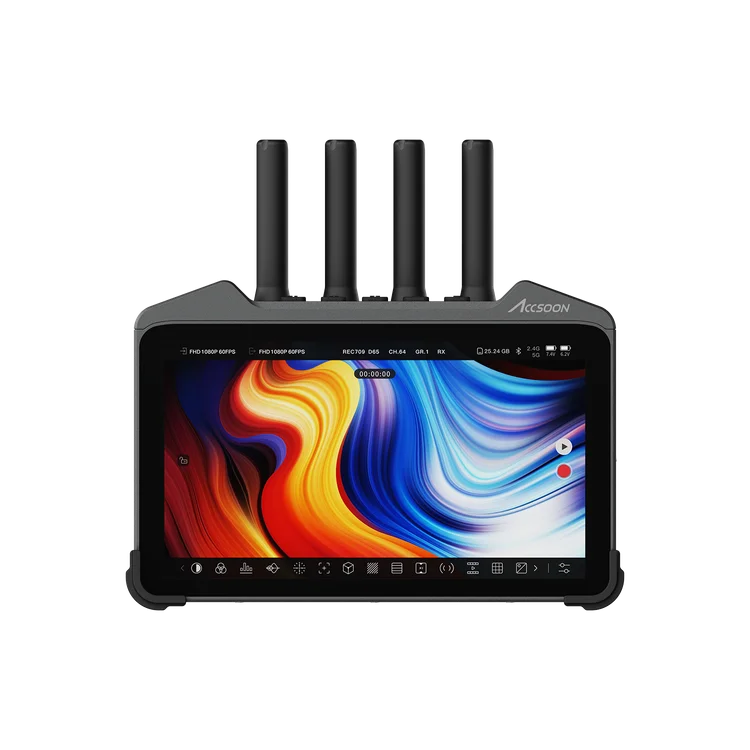

Accsoon CineView M7 4K60 7" smart touchscreen wireless transmission monitor
SKU: MIT01
Key features:
- 7" touch screen SDI/HDMI Monitor
- SDI/HDMI inputs & outputs, with cross conversion
- Dual Band transmission (2.4 Ghz & 5 Ghz)
- Range 1200ft/350m
- LUT application
- Dual NP-F battery slots
- 1/4" screw mount
- PD power input (USB-C)
- 2,970.00 AED
- 2,970.00 AED
- Unit price
- per
Dimensions: 20.7 x 14.6 x 5.5 cm
Weight: 0.8 kg
Description
xThe Accsoon CineView M7 is a professional 7-inch smart touchscreen monitor designed for filmmakers, videographers, and content creators who need accurate monitoring and reliable wireless video transmission. Featuring a bright 1000-nit Full HD display, HDMI 2.0 and 3G-SDI connectivity, and support for video signals up to 4K, it provides a versatile monitoring solution for professional production workflows.
The CineView M7 supports HDMI and SDI cross-conversion, allowing you to connect and convert signals between different interfaces. Its Android operating system, touchscreen interface, and professional monitoring tools make it easy to manage video feeds and camera settings on set.
With support for camera control, live streaming, 1D and 3D LUTs, and multiple video formats, the M7 is suitable for studio productions, live events, filmmaking, interviews, and on-location shoots. It also supports NP-F series batteries and USB-C PD power for flexible operation.
Explore more professional video equipment and Accsoon products at Systec International.
Frequently Asked Questions
What is the display size of the Accsoon CineView M7?
The CineView M7 features a 7-inch LCD touchscreen with a 1920 × 1080 resolution and 1000-nit brightness.
Does the CineView M7 support 4K video?
Yes. The monitor supports video signals up to 4K, including 4K DCI and 4K UHD formats through its HDMI connectivity.
Does the Accsoon CineView M7 support HDMI and SDI?
Yes. It features HDMI 2.0 and 3G-SDI inputs and outputs, with support for HDMI and SDI cross-conversion.
Can the CineView M7 control a camera?
Yes. The monitor supports camera control functions including recording, aperture, shutter speed, white balance, touch focus, and ISO/EI on compatible cameras.
Does the CineView M7 support live streaming?
Yes. The CineView M7 supports live streaming, making it suitable for professional productions, events, and content creation.
Specs
x| Display Screen | 7" LCD |
|---|---|
| Resolution | 1920 × 1080 pixels |
| PPI | 323 |
| Aspect Ratio | 16:9 |
| Brightness | 1000 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 176° / 176° |
| Backlight Type | Edge-Lit Ultra-Transparent LED Backlight |
| Screen Color Calibration | Supported |
| LUT Support | 1D and 3D Cube LUTs; 1D up to 4096 points, 3D up to 127 points |
| Operating System | Android OS |
| Video Input | HDMI 2.0 / 3G-SDI |
| Video Output | HDMI 2.0 / 3G-SDI |
| HDMI Input Formats | 4K DCI, 4K UHD, 1080p, 1080i, 720p up to 60 fps |
| SDI Input Formats | 1080p up to 60 fps, Level A/B; 1080i 50/59.94/60 |
| HDMI Output Formats | 4K DCI, 4K UHD, 1080p, 1080i, 720p up to 60 fps |
| SDI Output Formats | 1080p up to 60 fps, Level A; 1080i 50/59.94/60 |
| Signal Conversion | SDI and HDMI Cross Conversion |
| Resolution Range | 720p to 4K |
| Camera Control | Bi-directional Record, Trigger, Aperture Control, Shutter Speed/Angle, White Balance, Touch Focus, ISO/EI |
| Live Streaming | Supported |
| DC Power Input | 6.0–16.8V, 5.5mm × 2.1mm, Center Positive |
| Compatible Batteries | NP-F550, NP-F750, NP-F970 |
| USB-C Power Input | PD 3.0, 9V/3A, 12V/3A, 15V/3A |
| USB-C Power Output | Maximum 5V/2A |
| Microphone Jack | 3.5mm TRS |
| Headphone Jack | 3.5mm CTIA |
| Microphone Input Sampling | 16-bit, 48 kHz |
| Power Consumption | 12W–28W, depending on usage |
| Housing | Aircraft-Grade Aluminum Alloy |
| Heat Dissipation | Active + Passive Cooling |
| Operating Temperature | -10°C to 40°C |
