AJA Corvid 44 12G PCIe 4-Channel 12G-SDI Full-Size BNC I/O Card (Tall Bracket, Fanless)
SKU: CORVID 44 12G BNC FANLESS (T, NC)
Key Features
- 4 x Bidirectional BNC Connectors
- Supports HFR, 8K, 4K, HD, SD, Deep Color, HDR
- Up to 10-bit 4:2:2 / 4:4:4 and 12-bit color support
- Reference Input and Internal 9-Pin RS-422 control
SKU:
CORVID 44 12G BNC FANLESS (T, NC)
Availability:
Out Of Stock
- 15,584.00 AED
- 15,584.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 39.12 × 15.49 × 7.11 cm
Weight: 0.417 kg
Description
xAJA Corvid 44 12G Overview

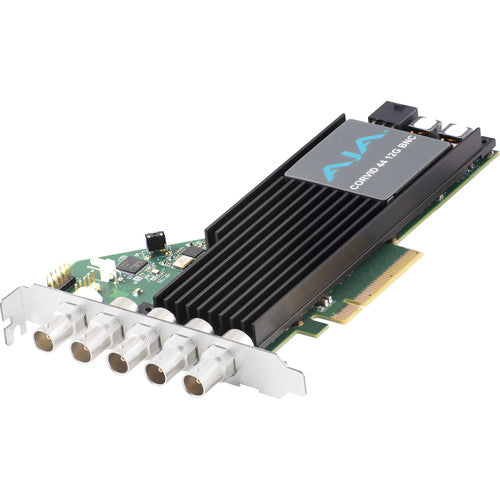

AJA's Corvid 44 12G PCIe 4-Channel 12G-SDI Full-Size BNC I/O Card is an 8-lane PCIe 3.0 card with four bidirectional 12G-SDI BNC connectors. It supports simultaneous capture and pass-through, includes a reference input and internal 9-pin RS-422 port, and uses a fanless passive cooling design.
It is designed for HFR, 8K, 4K, 2K, HD, SD, Deep Color, and HDR workflows with support for 10-bit 4:2:2 and 4:4:4 up to 12-bit color.
Key Features
- 12G-SDI I/O for up to 8K60p and 4:4:4 workflows

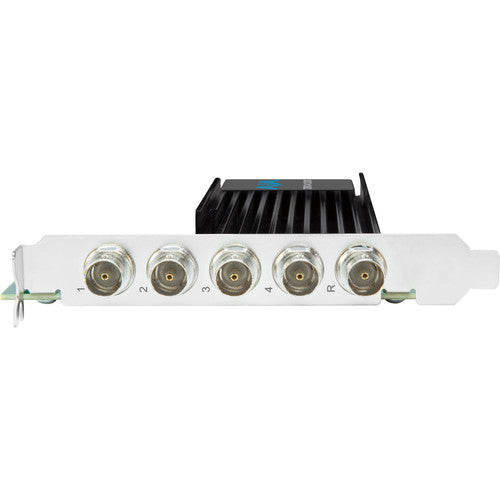

- Four bidirectional 12G-SDI BNC connectors + Reference In
- LTC input via Reference In
- 16-channel embedded SDI audio per port
- Hardware downstream keyer up to 4K
- 8-lane PCIe 3.0 design
- RS-422 control via internal 9-pin port
- Passive cooling (silent operation)
Video Formats
- 8K: up to 8192 x 4320 (23.98–60 fps)
- UHD-2: up to 7680 x 4320 (23.98–60 fps)
- DCI 4K: up to 4096 x 2160 (23.98–60 fps)
- UHD: up to 3840 x 2160 (23.98–60 fps)
- 2K / HD / SD support up to 60 fps
Video I/O
- 12G-SDI, 6G-SDI, 3G-SDI support
- 4 x BNC for UHD/4K 4:4:4
- Dual-link HD support
Audio
- 16-channel embedded SDI audio (24-bit, 48 kHz)
Other
- Reference input (black burst / tri-level sync)
- LTC timecode via header or reference input
- 8-lane PCIe 3.0 interface
- Power: ~25W typical, 32W max
- Fanless passive cooling design
Specs
xAJA Corvid 44 12G Specs
| Inputs / Outputs | |
|---|---|
| Video I/O | 4x BNC (Input) |
| Audio I/O | None |
| Reference | 1x BNC (Input) |
| Format Support | |
| 8K | 8192 x 4320 up to 60 fps |
| UHD-2 | 7680 x 4320 up to 60 fps |
| DCI 4K | 4096 x 2160 up to 60 fps |
| UHD | 3840 x 2160 up to 60 fps |
| 2K | 2048 x 1080 up to 60 fps |
| 2K PsF | 2048 x 1080 up to 25 fps |
| General | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -40 to 60°C |
| Dimensions | 7 x 4.75 x 0.75 in (17.78 x 12.06 x 1.91 cm) |
| Weight | 0.6 lb (272 g) |
| Packaging Info | |
| Package Weight | 0.417 kg |
| Box Dimensions | 39.12 × 15.49 × 7.11 cm |
