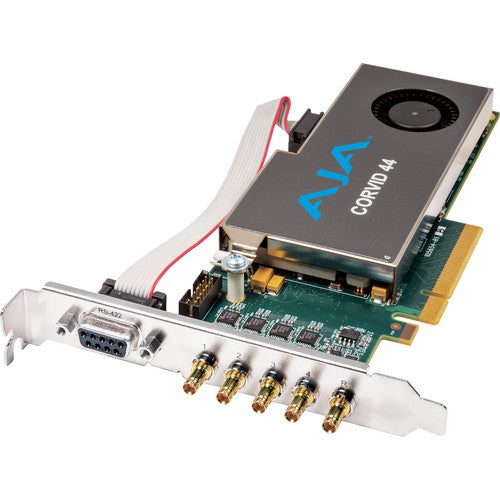

AJA Corvid 44 Standard-Profile 8-Lane PCIe Express Gen 2.0 Card (With Cable)
SKU: CORVID 44-T
Key Features
- Up to 4 simultaneous input/output streams on one PCIe card
- Programmable BNC connections (input/output per port)
- Supports Dual-Link and DCI/UHD 4K formats
- High Frame Rate support: 48p, 50p, 60p
- Supports HD (720p, 1080p) up to 60fps
- External switchable LTC/Reference input
- Internal LTC input header available
- Built-in RS-422 control for external device sync
- 3G SDI support for HFR workflows
- 8/10-bit YCbCr and 12-bit RGB frame buffer
- 2 mixer/keyer widgets
- Analog black or HD Tri-Level Sync support
- 4 bi-directional BNC I/O connections
- 16-channel embedded audio per connection
- Standard-profile (full-height) PCIe card
SKU:
CORVID 44-T
Availability:
Out Of Stock
- 9,034.00 AED
- 9,034.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 24.89 x 16.26 x 8.38 cm
Weight: 0.43 kg
Description
xAJA Corvid 44 Overview
The Corvid 44 Standard-Profile 8-Lane PCIe Express Gen 2.0 Card (With Cable) from AJA Video Systems allows developer applications to access up to four simultaneous input and output streams on a single PCIe card, suitable for medium-density workflows.
Each BNC connection can be configured as input or output and supports different video formats (same clock timing required). Connections can be linked for Dual-Link or DCI/UHD 4K formats. It supports HFR workflows at 48p, 50p, and 60p for smooth motion in 4K/UHD production.
- Up to 4 simultaneous input/output streams on one PCIe card
- Programmable BNC connections (input/output per port)
- Supports Dual-Link and DCI/UHD 4K formats
- High Frame Rate support: 48p, 50p, 60p
- Supports HD (720p, 1080p) up to 60fps
- External switchable LTC/Reference input
- Internal LTC input header available
- Built-in RS-422 control for external device sync
- 3G SDI support for HFR workflows
- 8/10-bit YCbCr and 12-bit RGB frame buffer
- 2 mixer/keyer widgets
- Analog black or HD Tri-Level Sync support
- 4 bi-directional BNC I/O connections
- 16-channel embedded audio per connection
- Standard-profile (full-height) PCIe card
Specs
xAJA Corvid 44 Specs
Technical Specifications
| Category | Specification |
|---|---|
| Video Input/Output | 4 x 3G-SDI BNC; bi-directional |
| Audio Input/Output | 16-channel 24-bit SDI embedded, 48 kHz synchronous |
| Video Formats |
DCI 4K, UHD 4K (23.98 to 60 fps) 2048x1080p / PsF (23.98 to 60 fps) 1080p (23.98 to 60 fps) 1080PsF (23.98 to 30 fps) 720p (50, 59.94, 60 fps) 1080i (25, 29.97, 30 fps) 625i (25 fps) 525i (29.97 fps) |
| Reference | Analog Color Black or HD Tri-Level Sync |
| Processing |
4 Frame Stores (In/Out) 4 Color Space Converters 2 Mixer/Keyer Widgets 4 x 1D LUTs 4 Dual-Link In/Out 4 x 16-channel audio engines |
| Dimensions | 16.76 x 1.83 x 10.67 cm |
| Package Weight | 0.43 kg |
| Box Dimensions | 24.89 x 16.26 x 8.38 cm |
