Dimensions: 1.9 x 18.4 x 7.9 cm
Weight: 135 g

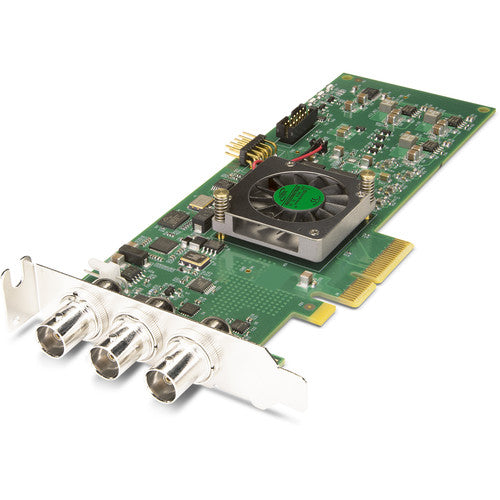

The AJA KONA 1-S is the short, low-profile version of the KONA 1 capture and playback card. It's designed for OEM developers and allows an internal connection for an optional external RS-422 9-pin connector (while the tall version features an integrated 9-pin connector).
The card is Mac/Windows/Linux 2-lane PCIe 2.0 compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output with selectable reference/LTC input. It also supports simultaneous monitoring during capture.
| Video Formats |
2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080PsF at 23.98, 24, 25 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94 |
| Video Inputs |

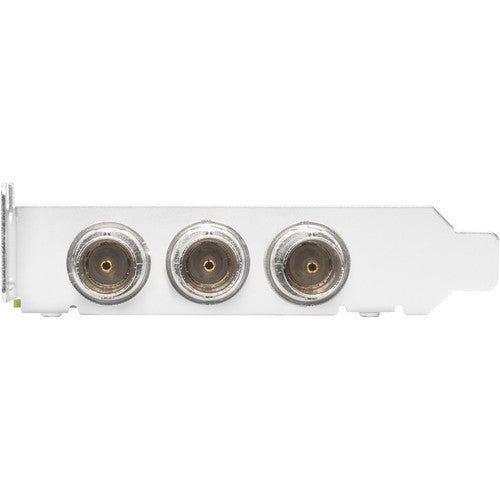

1 x 3G-SDI on BNC, SMPTE-259/292/296/424 Supports 16-channel 24-bit / 48 kHz embedded audio |
| Output |
1 x 3G-SDI on BNC, SMPTE-259/292/296/424 Supports 16-channel 24-bit / 48 kHz embedded audio |
| Reference / LTC Input | 1 x BNC (analog black / HD tri-level sync / LTC) |
| Interface | 2-lane PCIe 2.0 |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Relative Humidity | 10–90% non-condensing |
| Operating Altitude | < 3000 m (< 9850 ft) |
| Dimensions | 1.9 x 18.4 x 7.9 cm |
| Weight | Approx. 0.3 lb / 135 g |
