Output up to 4K video from your Thunderbolt 3-enabled Windows/macOS computer or NLE to HDMI and SDI destinations for live broadcast, monitoring, switching, and recording workflows with the T-TAP Pro from AJA. The T-Tap Pro improves on its predecessor by providing output of up to 10/12-bit 4:4:4 video in up to DCI 4K60 resolution. The ultracompact T-Tap Pro outputs video and embedded audio from a Thunderbolt 3-enabled computer and outputs it in the same broadcast-quality to professional and consumer monitors and recording gear via 12G-SDI and HDMI 2.0 outputs.
Both outputs can be used simultaneously at all times, and the HDMI output can be connected directly into 4K HDMI monitors for monitoring HDR video in PQ, HLG, HDR10, and Dolby Vision formats with third-party support. Audio support includes 16 channels of audio via the 12G-SDI output and up to 8 channels of audio via the HDMI output. Other features include 4K closed caption support, VPID signaling via SDI, HDR metadata, auto playback detection, a headphone jack, front-panel audio levels, and connection status indicators.
The T-TAP Pro connects to the computer's Thunderbolt 3 connector and is powered using the included power supply.

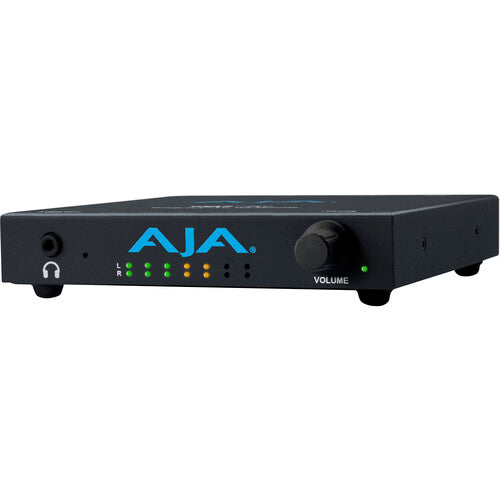

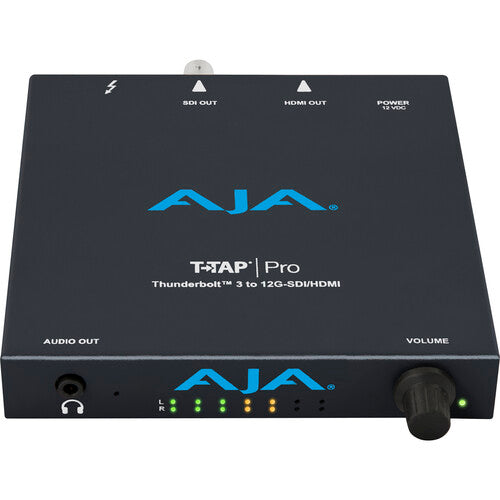

AJA T-TAP Pro Thunderbolt 3-Powered Converter with 12G-SDI and HDMI 2.0 Output
SKU: T-TAP PRO
Key Features
- Compact Unit, Connects via Thunderbolt 3
- 12G-SDI and HDMI 2.0 Output
- DCI 4K/UHD 4K/HD/SD Format Support
- RGB 4:4:4 12-Bit, YCbCr 4:2:2 10-Bit
- HDMI 8-Channel/12G-SDI 16-Channel Audio
- PQ/HLG/HDR10/Dolby Vision

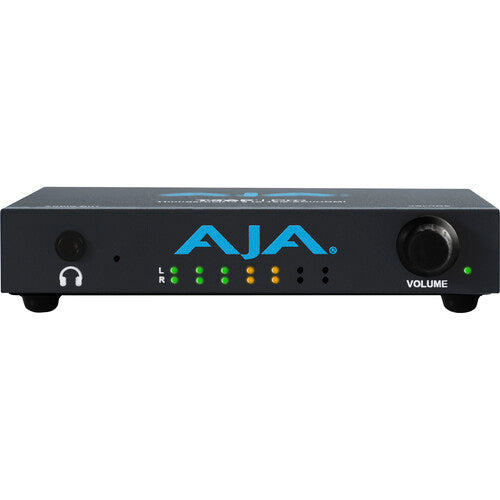

- Headphone Jack with Audio Level Control
- Windows and macOS Support
- 4K Closed Captioning Support
- Power Supply Included
SKU:
T-TAP PRO
Availability:
Out Of Stock
- 4,213.00 AED
- 4,213.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 25.78 × 16.26 × 12.95 cm
Weight: 1.073 kg
Description
xAJA TAP-PRO Overview
Specs
x| Key Specs | |
|---|---|
| Video I/O |

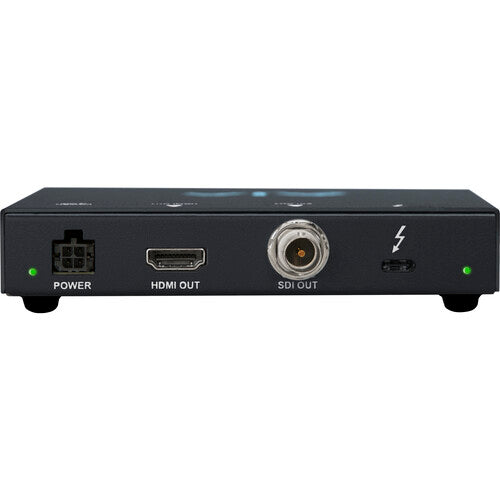

1x BNC (12G-SDI) Female 1x HDMI 2.0 Female |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Audio Format | Analog Output: 48 kHz |
| Broadcast System Compatibility | NTSC |
| Wireless | No |
| OS Compatibility | Windows, macOS |
| Inputs / Outputs | |
| Other I/O | 1x Thunderbolt 3 |
| Expansion Slots | No |
| Latency | No |
| Format Support | |
| HDMI Input Resolution |
4096 x 2160 up to 60 fps 3840 x 2160 up to 60 fps 2048 x 1080p up to 60 fps 1920 x 1080p/i up to 60 fps 1280 x 720 up to 60 fps |
| SDI Input Resolution |
4096 x 2160 up to 60 fps 3840 x 2160 up to 60 fps 2048 x 1080p up to 60 fps 1920 x 1080p/i up to 60 fps 1280 x 720 up to 60 fps |
| HDMI Output | 8/10-Bit 4:4:4 / 4:2:2 RGB, YUV, YCC |
| SDI Output | 8/10-Bit 4:4:4 / 4:2:2 RGB, YUV, YCC |
| Embedded Audio |
HDMI: 8-Channel SDI: 16-Channel |
| Reclocking | No |
| Standards | |
| Video Standard Compliance | SMPTE: 259M-C / 292M / 425M / ST-2081 / ST-2082 |
| HDR Support | HDR10 / Dolby Vision / Hybrid Log Gamma |
| Power | |
| Power I/O | 1x Proprietary Input |
| Power Consumption | 18 W |
| General | |
| Operating Conditions | 32 to 95°F / 0 to 35°C at 10 to 90% Humidity |
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Dimensions | 5 x 5 x 1" / 12.7 x 12.7 x 2.5 cm |
| Weight | 8.1 oz / 230 g |
| Packaging Info | |
| Package Weight | 2.365 lb |
| Box Dimensions (L x W x H) | 10.15 x 6.4 x 5.1" |
