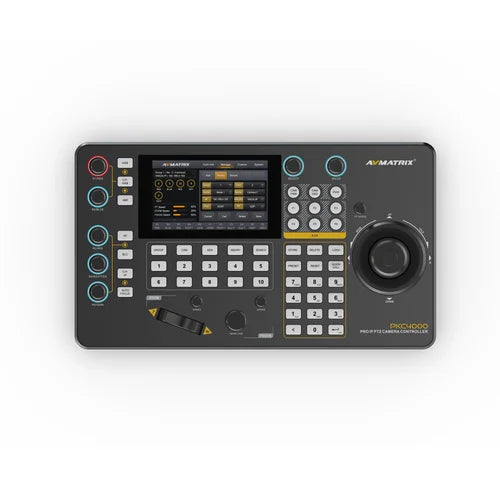

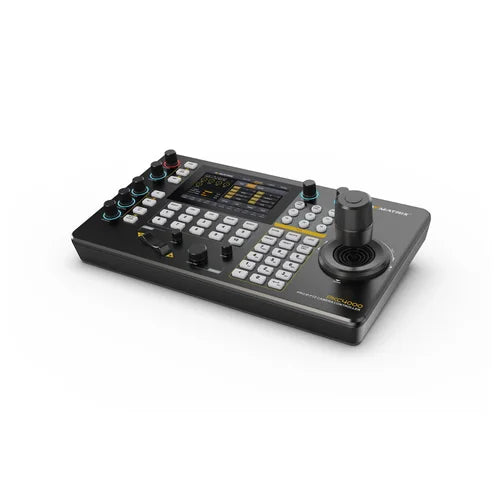

AVMATRIX PKC4000 IP & SERIAL PTZ CAMERA CONTROLLER
SKU: PKC4000
Key Features:
- Easy operation with a 5-inch touch screen and 4D joystick
- Supports video decoding for real-time monitoring
- Supports Visca, Visca Over IP, Pelco P&D & Onvif protocols
- Control via IP, RS-422, RS-485, and RS-232
- Automatic IP address assignment for quick setup
- Manages up to 100 IP cameras on a single network
- 6 user-assignable keys for quick function access
- Quick control of exposure, iris, focus, pan, tilt, etc.
- Supports PoE and 12V DC power supply
- NDI version for optional
SKU:
PKC4000
Availability:
Out Of Stock
- 2,286.00 AED
- 2,286.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Description
xAVMATRIX PKC4000 IP & SERIAL PTZ CAMERA CONTROLLER
AVMATRIX PKC4000 boasts a 5"touch screen that enables direct on-screen configuration of camera menu parameters as well as monitoring camera status in real-time. The AVMATRIX PKC4000 supports decoding under NDI, RTSP and ONVIF protocols which allows simultaneous real-time preview of the camera video streams on the 5-inch screen and adjust your control accordingly.
Camera Control Protocol of AVMATRIX PKC4000
The controller has a variety of control interfaces including IP, RS-422/ RS-485/ RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix-control on one controller operating protocol by ONVIF, VISCA, VISCA-IP and Pelco P&D, as well as NDI ("NDI For Optional).
Track Recording and Playback
The PTZ camera controller supports track loop function which allows you to record camera path (pan, tilt, zoom) and replay it whenever required without having to manually control the camera.
Power-over-Ethernet (PoE)
Control up to total of 100 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but also POE power supply to set up in various locations.
1x RS-232 & 4 x RS-485 /422 Control Interfaces
RS-232, RS-422 and RS-485 communication support protocols such as PELCO-D, PELCO-P and VISCA,. Each serial port can connect up to 7 cameras under the Visca protocol.
Connection Diagram of AVMATRIC PKC4000
Adopt RS-232, RS-422, RS-485 and IP(RJ45) multiple interface control signal, up to 100 cameras can be connected. The following application workflow shows how to control multiple cameras through IP Interface through the PTZ controller.
IP Control Interface of AVMATRIX PKC4000
IP control is a very intelligent and convenient control mode. With IP control, automatically search available IP cameras in the network and assign IP addresses easily. IP control supports NDI, ONVIF and Visca-IP. PKC4000 enables user to easily control up to 100 IP camera (10 groups, 10 cameras/ group).
