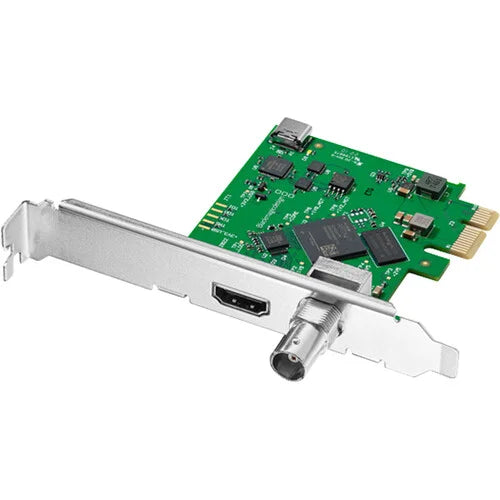

Blackmagic DeckLink Mini Recorder HD
SKU: BDLKMINIREC3G
Key Features
- Broadcast-Quality Recording
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Inputs
- Supports up to 2K DCI over SDI
- Up to 1080p60 Resolution Support in HDMI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
- 548.00 AED
- 548.00 AED
- Unit price
- per
Dimensions: 14.22 x 13.46 x 3.04 cm
Weight: 0.056 kg
Description
xThe Blackmagic Design DeckLink Mini Recorder HD is a professional PCIe capture card designed for recording broadcast-quality video from SDI and HDMI sources. It features 3G-SDI and HDMI 2.0 inputs and supports SD, HD, and DCI 2K video capture for production and post-production workflows.
The card supports up to 1080p60 over HDMI and DCI 2Kp60 over SDI, with 10-bit SDI video and embedded audio. It also provides real-time hardware color space conversion and automatically switches between SD and HD formats.
Compatible with Mac, Windows, and Linux systems, the DeckLink Mini Recorder HD works with popular software including DaVinci Resolve, OBS, vMix, and Wirecast. For more professional video capture solutions, explore Systec International's Capture Cards collection.
FAQs
What video inputs does the DeckLink Mini Recorder HD have?
It has one 3G-SDI input and one HDMI 2.0 input for capturing SD and HD video.
What is the maximum capture resolution?
It supports up to DCI 2Kp60 over SDI and 1080p60 over HDMI.
What PCIe slots are supported?
It uses a PCI Express 1-lane Gen 2 interface and is compatible with 1-, 4-, 8-, and 16-lane PCIe slots.
Which operating systems are supported?
It supports Mac, Windows, and Linux.
Can it work with streaming software?
Yes. It is compatible with software such as OBS, vMix, and Wirecast
Specs
xSpecifications
| Product Type | PCIe Video Capture Card |
|---|---|
| SDI Video Input | 1 x 10-bit SD/HD switchable |
| SDI Standards | 270 Mb/s, 1.5G-SDI, 3G-SDI |
| SDI Audio Input | 16 channels embedded in SD/HD |
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| HDMI Audio Input | 8 channels embedded in SD/HD |
| Maximum SDI Resolution | DCI 2Kp60 |
| Maximum HDMI Resolution | 1080p60 |
| Computer Interface | PCI Express 1-lane Gen 2 |
| PCIe Compatibility | 1-, 4-, 8-, and 16-lane PCIe slots |
| Video Sampling | 4:2:2 / 4:4:4 |
| Color Precision | 8-bit, 10-bit, and 12-bit |
| Color Space | REC 601 / REC 709 |
| Operating Systems | Mac, Windows, Linux |
| Power Consumption | 3W |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Operating Humidity | 0% to 90% non-condensing |
