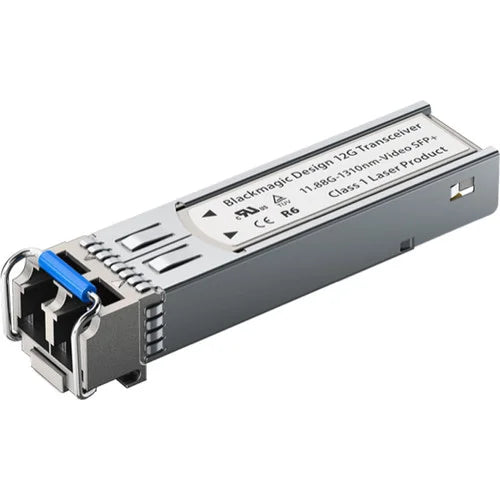

Blackmagic Design 12G SFP Optical Module Adapter
SKU: ADPT-12GBI/OPT
Key Features
- Add Fiber Module to BMD Studio Camera 4K
- Run Optical Fiber up to 28 Miles Away
- Supports 12G-SDI, 10-Bit 4:2:2 Video
- ATEM Camera Converter Not Required
- Control Camera with ATEM Switcher
- ATEM Studio/Talkback Converter Required
- 1,270.00 AED
- 1,270.00 AED
- Unit price
- per
Description
xThe Blackmagic Design 12G SFP Optical Module Adapter is designed to extend 12G-SDI 4K video and camera control over optical fiber for professional live production and broadcast workflows. It allows compatible ATEM Switchers and Blackmagic Studio Cameras to be connected over long distances without requiring a conventional SDI cable run.
By installing the SFP optical module in an ATEM Switcher and/or compatible Studio Camera, users can transmit and control a 12G-SDI 4K video signal over fiber optic cable for distances of up to 28 miles. The solution supports 12G-SDI and 10-bit 4:2:2 video, making it suitable for high-quality professional production environments.
The adapter also allows the camera to be controlled directly from an ATEM Switcher, providing a practical solution for remote camera operation in studios, live events and broadcast productions. An ATEM Studio Converter is required for the setup, while the ATEM Talkback Converter 4K is required when talkback functionality is needed.
The Blackmagic Design 12G SFP Optical Module Adapter is a useful choice for production teams that need to extend camera connectivity over long fiber runs while maintaining reliable 4K video transmission and remote camera control.
For more professional video equipment, explore Systec's Switchers & Controllers and Video Transmission System categories.
Frequently Asked Questions
What is the Blackmagic Design 12G SFP Optical Module Adapter used for?
It is used to extend 12G-SDI 4K video and camera control over optical fiber between compatible ATEM Switchers and Blackmagic Studio Cameras.
How far can the 12G SFP Optical Module Adapter transmit video?
It can extend the 12G-SDI 4K video signal over optical fiber by up to 28 miles, depending on the fiber setup.
Does it support 4K video?
Yes. The adapter supports 12G-SDI 4K video with 10-bit 4:2:2.
Can I control the camera through an ATEM Switcher?
Yes. The adapter allows compatible Blackmagic Studio Cameras to be controlled through an ATEM Switcher over the fiber connection.
Is an ATEM Studio Converter required?
Yes. The ATEM Studio Converter is required for the described setup. The ATEM Talkback Converter 4K is additionally required if talkback functionality is needed.
Specs
xKey Specs
| Product Type | 12G-SDI SFP Optical Module |
|---|---|
| Model | ADPT-12GBI/OPT |
| Form Factor | SFP |
| SDI Support | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI |
| Maximum Video Resolution | Ultra HD 4K up to 2160p60 |
| Maximum Video Format | 12G-SDI, 10-Bit 4:2:2 |
| Fiber Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber |
| Wavelength | 1310 nm |
| Fiber Core | 9 µm |
| Fiber Cladding | 125 µm |
| Maximum Transmission Distance | Up to 28 miles, depending on fiber and system configuration |
Compatibility
| Compatible Equipment | Blackmagic Design ATEM Switchers, Studio Cameras, ATEM Studio Converter and ATEM Talkback Converter 4K |
|---|
Video Standards
| Supported Video Standards | SD, HD, 3G-SDI, 6G-SDI and 12G-SDI |
|---|---|
| Maximum Frame Rate | Up to 2160p60 |
