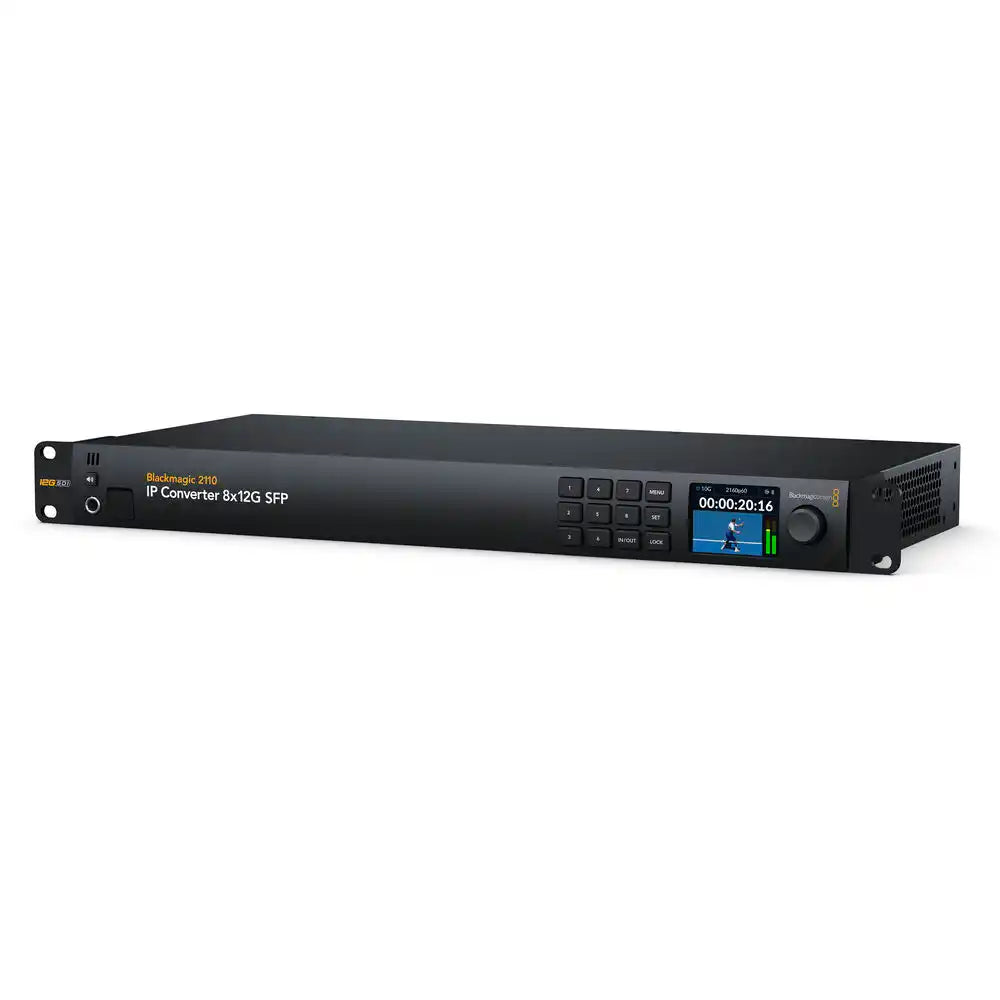

Blackmagic Design 2110 IP Converter 8x12G SFP
SKU: CONVNVIPC8/12GSFP
Key Features
- Convert 8 x 12G-SDI Devices to SFP Fiber
- 8 x SMPTE-2110 IP SFP Fiber Ports
- UHD 4K Resolution Support
- Redundant Power
- 1 RU Rackmount Design
- 10,595.00 AED
- 10,595.00 AED
- Unit price
- per
Dimensions: 49 x 24 x 5 cm
Weight: 4 kg
Description
xThe Blackmagic Design 2110 IP Converter 8x12G SFP lets broadcasters connect 12G-SDI equipment to modern SMPTE-2110 IP video networks. It provides eight independent bidirectional conversion channels, making it suitable for professional broadcast and live production environments.

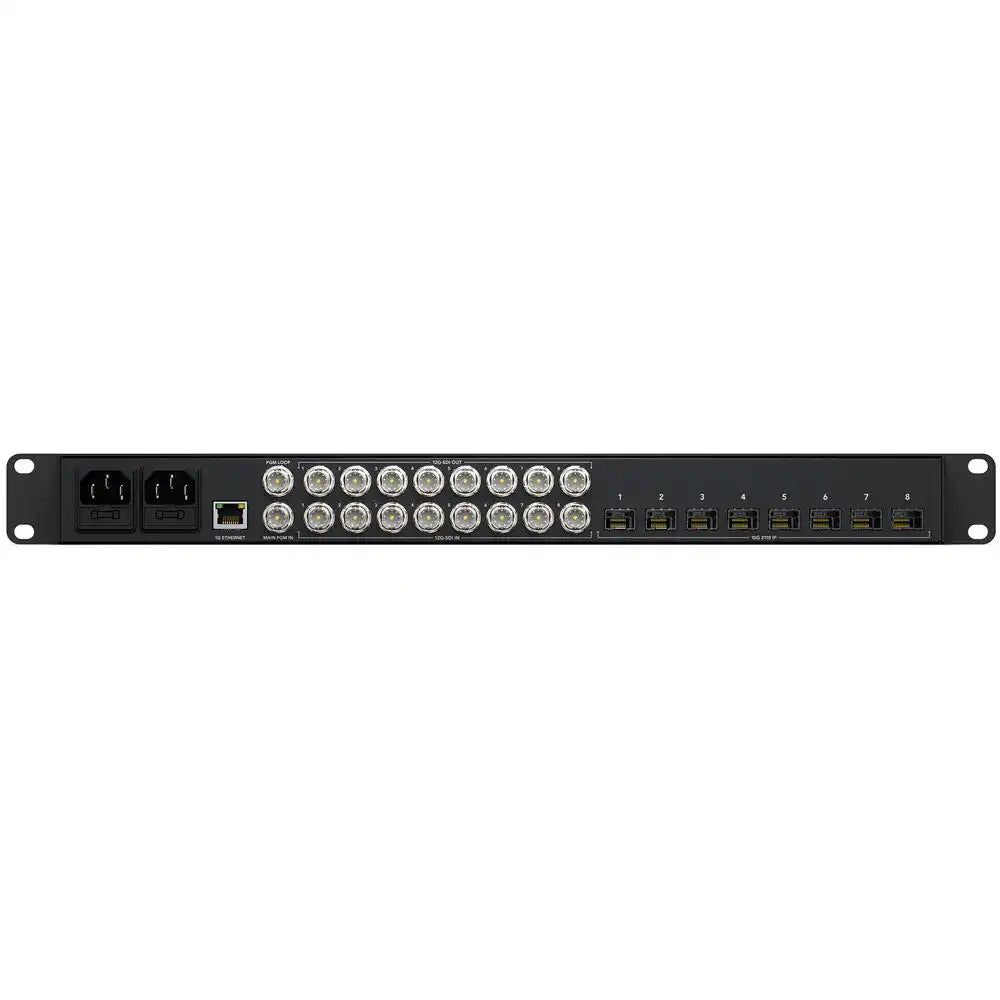

Each channel includes a dedicated 12G-SDI input and output, while the unit also provides a shared 12G-SDI program return. The eight 10G Ethernet SFP ports support SMPTE-2110 IP video and can use optical fiber Ethernet modules for long-distance connections.
The converter supports HD and Ultra HD signals up to 2160p60, with SDI rates from 270Mb/s through 12G. It also supports embedded audio, SMPTE ST 2110-20/21/30/40, PTP v2, and NMOS IS-04 and IS-05 for professional IP broadcast workflows.

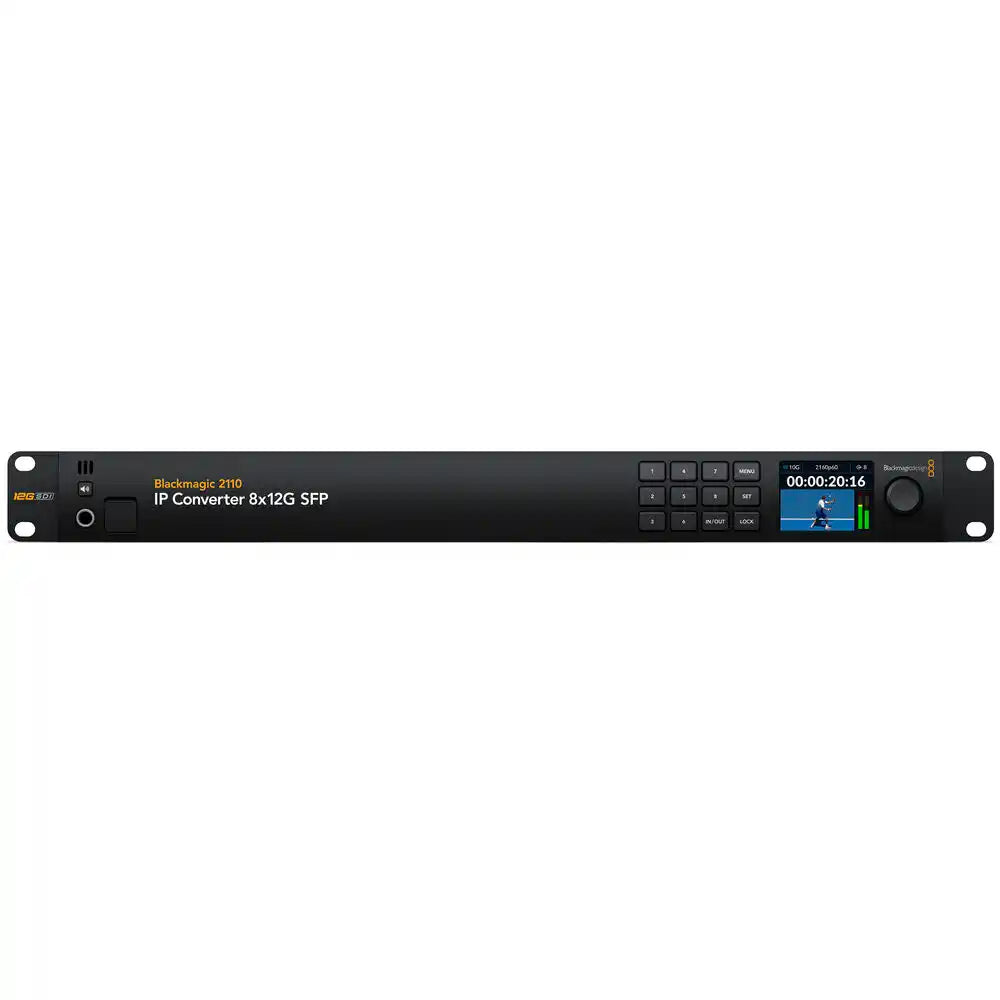

Designed for professional installations, the converter features a 1RU rackmount design, built-in 2.2-inch color display, 12-button control panel, redundant internal power supplies, and USB-C and Ethernet connections for configuration and firmware updates. Explore more professional signal processing, converters and distribution solutions from Systec International.
FAQs
What does the Blackmagic 2110 IP Converter 8x12G SFP do?
It converts between eight independent 12G-SDI video signals and SMPTE-2110 IP video over 10G Ethernet.
How many SMPTE-2110 connections does it have?
It provides 8 x 10G Ethernet SFP connections for SMPTE-2110 IP video.
Does it support 4K video?
Yes. It supports Ultra HD video standards up to 2160p60.
Does it support embedded audio?
Yes. It supports 16 channels of embedded audio on both SDI and SMPTE-2110 IP video connections.
Is it suitable for rack-mounted broadcast systems?
Yes. Its 1RU design, redundant power, SMPTE-2110 support, PTP, and NMOS integration make it suitable for professional broadcast infrastructure.
Specs
xSpecifications
| Product Type | SMPTE-2110 IP Video Converter |
|---|---|
| SDI Video Inputs | 8 |
| SDI Video Outputs | 8 |
| SDI Program Input | 1 |
| SDI Program Output | 1 Loop Out |
| SDI Rates | 270Mb/s, 1.5G, 3G, 6G, 12G |
| SMPTE ST 2110 IP Video | 8 x 10G Ethernet |
| Ethernet | 8 x 10Gb/s SFP sockets; 1 x 1Gb/s RJ-45 |
| Computer Interface | 1 x USB-C 3.0 |
| Multi Rate Support | SD, HD, Ultra HD and 4K |
| Reclocking | Yes |
| SDI Embedded Audio | 16 channels |
| SMPTE ST 2110 IP Audio | 16 channels |
| Analog Audio Output | 1 x 6.35mm headphone socket |
| Video Resolution | Up to 2160p60 |
| Codec | Blackmagic IP10 |
| Precision Time Protocol | IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2 |
| NMOS | IS-04 v1.3.2 and IS-05 v1.1.2 |
| Control Panel | 12 buttons, 2.2-inch color display and spin knob |
| Power Supply | 2 x internal 100–240V AC, 50/60Hz, IEC C14 |
| Power Usage | 70W maximum |
| Rack Installation | 1RU |
| Operating Temperature | 5°C to 40°C / 41°F to 104°F |
| Storage Temperature | -20°C to 45°C / -4°F to 113°F |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
