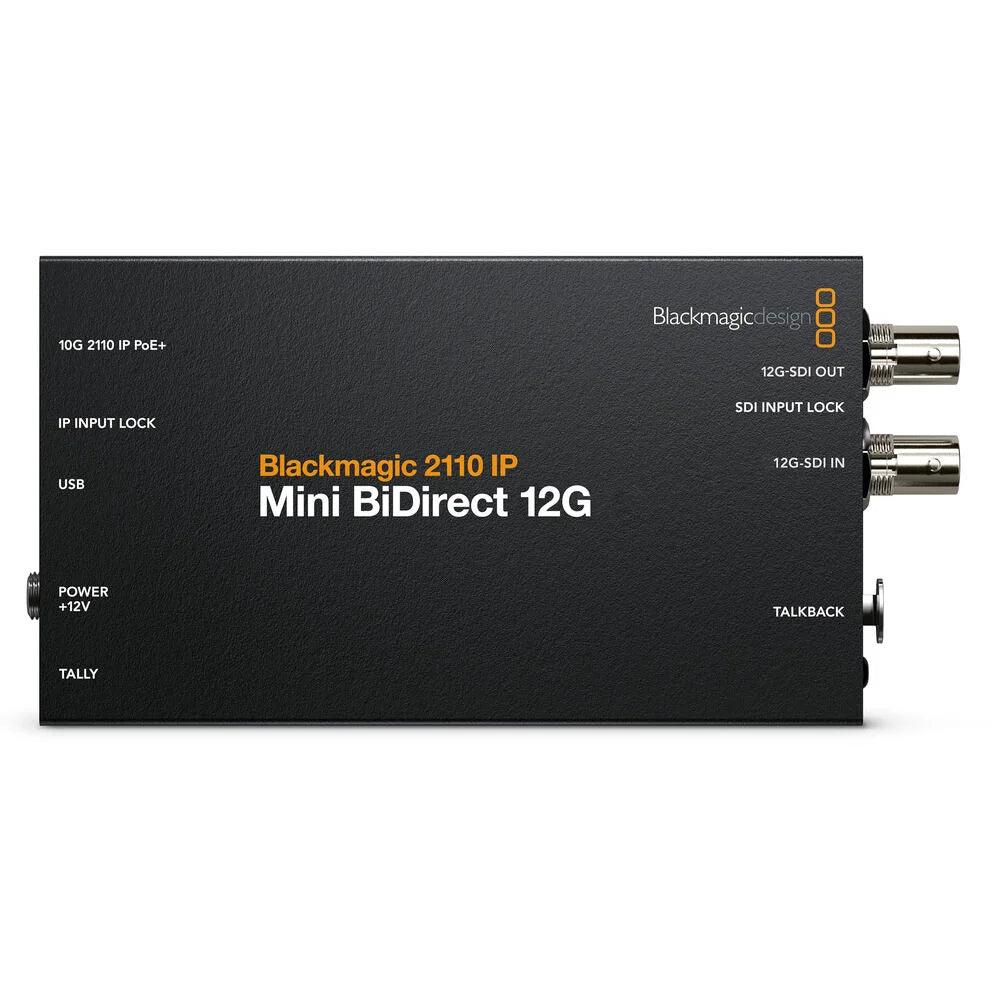

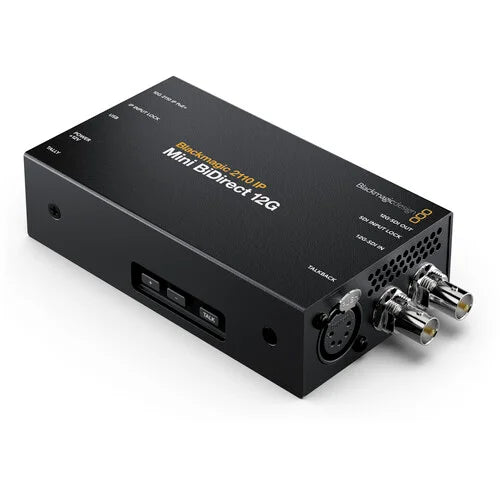

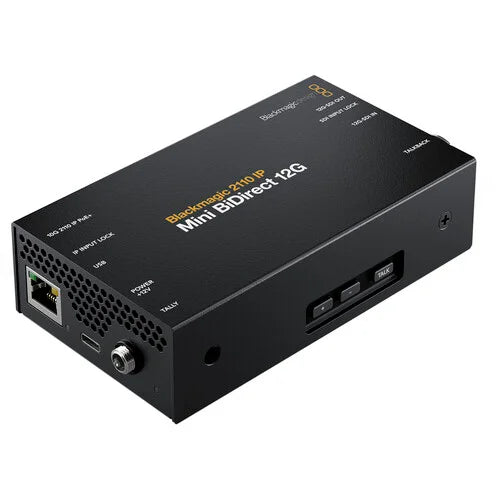

Blackmagic Design 2110 IP Mini BiDirect 12G Converter
SKU: CONVNVIPF/IP/12G
Key Features
- Converts 12G-SDI broadcast cameras to SMPTE-2110 IP systems
- Bidirectional conversion supports camera feed and SDI program return
- Supports SD, HD, Ultra HD and 4K standards up to 2160p60
- 1 x 12G-SDI input and 1 x 12G-SDI output
- 10G Ethernet connection for SMPTE-2110 IP video and audio
- 5-pin XLR talkback headset connection with volume control and push-to-talk
- Integrated tally, SDI lock and IP lock indicators
- Supports 16 channels of embedded SDI and SMPTE-2110 IP audio
- Supports PoE++ power through 10G Ethernet
- Includes 12V DC power supply
- 1,527.00 AED
- 1,527.00 AED
- Unit price
- per
Dimensions: 15 x 8 x 4 cm
Weight: 0.5 kg
Description
xThe Blackmagic 2110 IP Mini BiDirect 12G is a compact bidirectional converter designed to connect broadcast cameras with SDI outputs to SMPTE-2110 IP video systems. It handles both the camera's SDI feed and SDI program return in a single compact unit, making it suitable for modern broadcast and live production workflows.
With 12G-SDI support, the converter works with SD, HD, Ultra HD, and 4K standards up to 2160p60. It provides one SDI input, one SDI output, and a 10G Ethernet connection for SMPTE-2110 IP video and audio. It also supports 16 channels of embedded audio and includes SDI and IP reclocking for reliable signal handling.
For production communication, the converter features a 5-pin XLR talkback headset connection with volume controls and a push-to-talk button. An integrated tally indicator and dedicated IP and SDI lock LEDs provide useful status information during live productions. The unit can be powered through 10G Ethernet with PoE++ or the included 12V DC power supply.
The Blackmagic 2110 IP Mini BiDirect 12G is well suited for broadcast cameras, outside broadcasts, live events, studios, and other professional video environments where compact SDI-to-IP connectivity is required. For more professional video signal solutions, explore the Signal Processing, Converters & Distribution collection at Systec International.
FAQs
What does the Blackmagic 2110 IP Mini BiDirect 12G do?
It converts SDI camera signals to SMPTE-2110 IP while also handling an SDI program return signal.
What video formats does it support?
It supports SD, HD, Ultra HD, and 4K standards up to 2160p60.
Does it support talkback?
Yes. It has a 5-pin XLR talkback headset connection with volume control and push-to-talk functionality.
How is the converter powered?
It can be powered through 10G Ethernet using PoE++ or with the included 12V DC power supply.
How many audio channels does it support?
It supports up to 16 channels of embedded audio through SDI and SMPTE-2110 IP.
Specs
xSpecifications
| Product Type | Bidirectional 12G-SDI to SMPTE-2110 IP Converter |
|---|---|
| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| SMPTE ST-2110 IP Video | 1 x 10G Ethernet |
| SDI Audio | 16 channels embedded audio |
| SMPTE ST-2110 IP Audio | 16 channels embedded audio |
| Analog Audio | 1 x 5-pin XLR talkback input and output |
| Video Standards | SD, HD, Ultra HD and 4K up to 2160p60 |
| Reclocking | Yes |
| IP Video Compliance | SMPTE ST 2110-20, ST 2110-21, ST 2110-30 and ST 2110-40 |
| Codec | Blackmagic IP10 |
| Precision Time Protocol | IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2 |
| NMOS | IS-04 v1.3.2 and IS-05 v1.1.2 |
| Computer Interface | USB-C for configuration and firmware updates |
| Power Supply | 12V DC external power supply |
| Power over Ethernet | PoE++ via 10G Ethernet |
| Power Consumption | 18W |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
