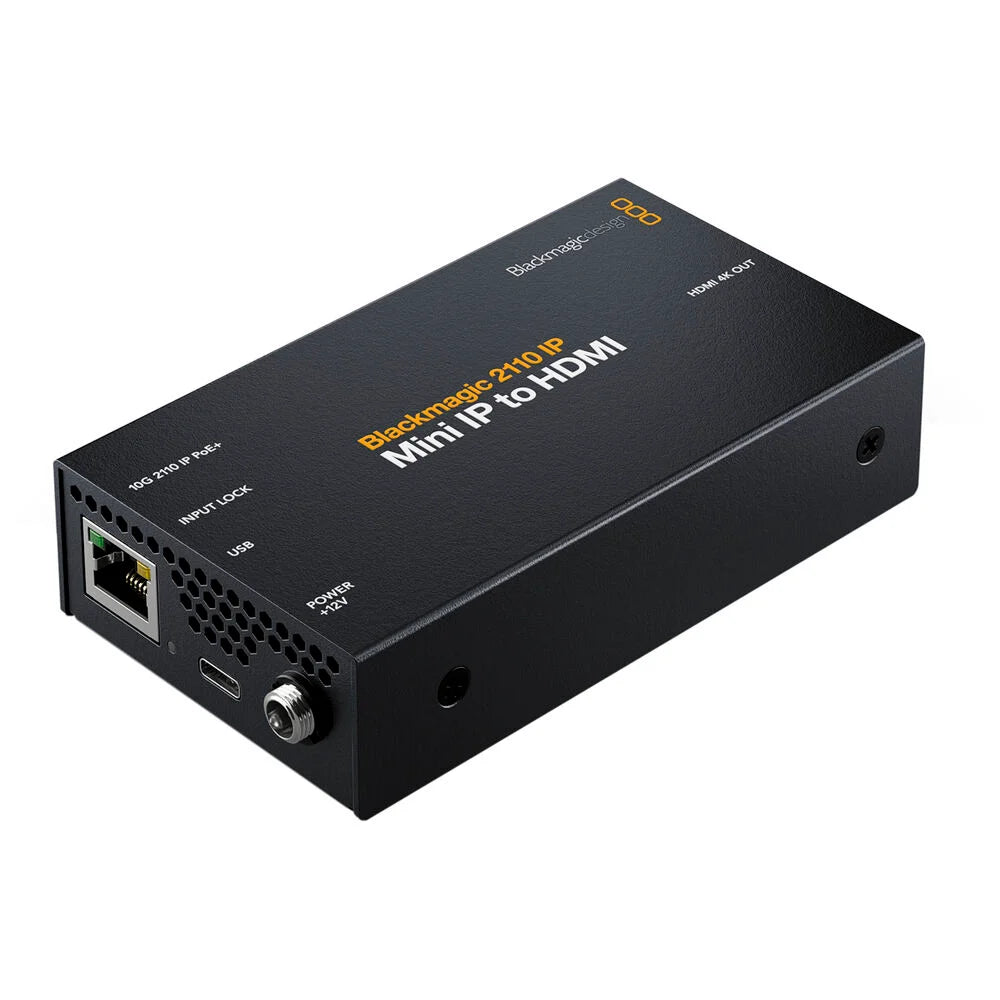

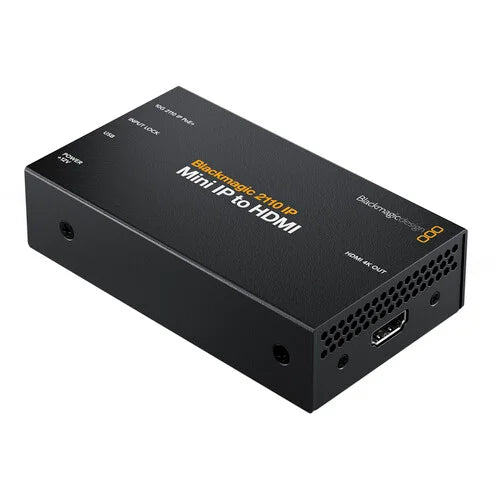

Blackmagic Design 2110 IP Mini IP to HDMI Converter
SKU: CONVNVIPE/IP/HDMI
Key Features
- 2110 IP to HDMI Converter
- Video Monitoring To/From Studio Cameras
- Supports UHD 4K Video via SMPTE 2110 IP
- Windows/macOS Software Utility
- PoE++ and 10G Ethernet Power
- 1,233.00 AED
- 1,233.00 AED
- Unit price
- per
Dimensions: 12 x 7 x 3 cm
Weight: 0.25 kg
Description
xThe Blackmagic Design 2110 IP Mini IP to HDMI Converter is a compact solution for monitoring SMPTE-2110 IP video and audio on an HDMI monitor or TV. It supports HD and Ultra HD video standards up to 2160p60, making it suitable for modern broadcast and professional IP video workflows.
The converter features a 10G Ethernet connection for SMPTE-2110 IP video and 16 channels of embedded IP audio. It also includes USB-C for configuration and firmware updates, while the IP Input Lock LED provides a quick indication of network signal status. The compact design makes it easy to position behind a display or in space-limited production environments.
Built-in support for IEEE 1588-2008 PTP v2, ST 2059-1 and ST 2059-2 helps provide accurate timing for professional IP video systems. NMOS IS-04 and IS-05 support also allows the converter to work with modern IP-based broadcast infrastructure. Power can be supplied through the included 12V DC adapter or a compatible PoE++ Ethernet connection.
For more professional video signal equipment, you can also explore Systec International's Signal Processing, Converters & Distribution collection.
FAQs
What does the Blackmagic 2110 IP Mini IP to HDMI do?
It converts SMPTE-2110 IP video and audio for monitoring on an HDMI display or TV.
What video resolution does it support?
It supports HD and Ultra HD formats up to 2160p60.
How does it connect to a SMPTE-2110 network?
It uses a 10Gb/s Ethernet RJ45 connection for SMPTE-2110 IP video, audio, configuration and firmware updates.
Does it support embedded IP audio?
Yes. It supports up to 16 channels of embedded audio on SMPTE-2110 IP video.
How is the converter powered?
It can use the included 12V DC power supply or power through a compatible PoE++ Ethernet connection.
Specs
xSpecifications
| Product Type | SMPTE-2110 IP to HDMI Converter |
|---|---|
| HDMI Video Outputs | 1 |
| HDMI Audio Outputs | 1 |
| SMPTE ST-2110 IP Video Input | 1 x 10Gb/s Ethernet |
| SMPTE ST-2110 IP Audio | 16 channels embedded audio |
| Ethernet | 10/100/1000/10G BASE-T RJ45 with PoE++ support |
| Computer Interface | USB-C 3.0 |
| Codec | Blackmagic IP10 |
| Precision Time Protocol | IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2 |
| NMOS IS-04 | Version 1.3.2 |
| NMOS IS-05 | Version 1.1.2 |
| Operating Systems | macOS 13 Ventura, macOS 14 Sonoma or later, Windows 10 and 11 |
| Power Supply | +12V DC external power supply or PoE++ |
| Operating Voltage | 12–16V |
| Power Usage | 18W |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
