Blackmagic Design 2110 IP MINI IP to HDMI SFP
SKU: CONVNVIPE/IP/HDMISFP
Key Features
- Supports optical fiber-based SMPTE-2110 IP systems
- Monitor 2110 IP video and audio on any HDMI monitor or TV
- Compact design connects using 10G Ethernet SFP optical module
- Supports HD and Ultra HD standards to 2160p60
- Includes DC power supply
- 1,233.00 AED
- 1,233.00 AED
- Unit price
- per
Description

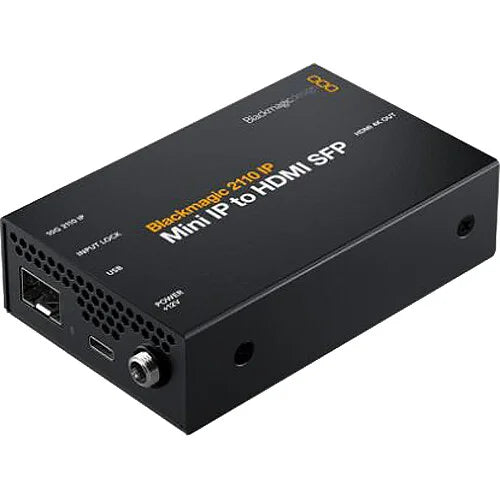

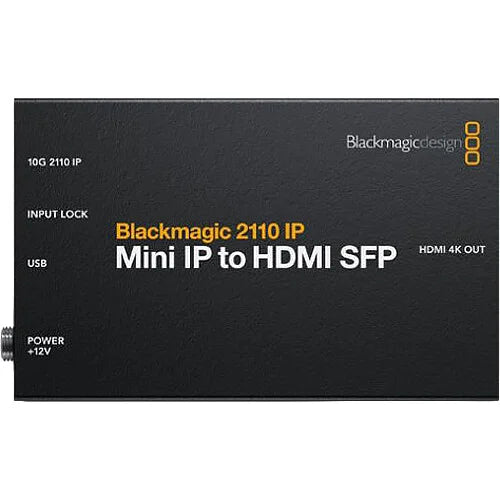

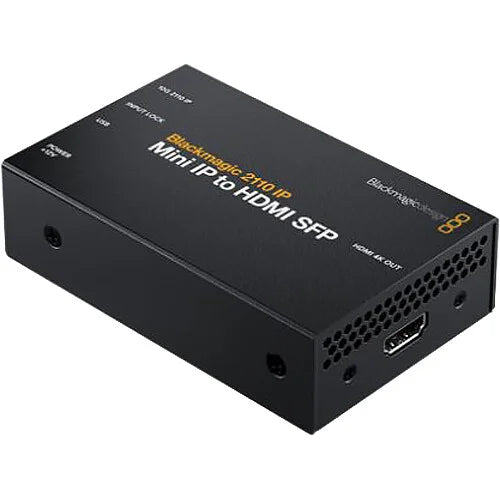

xThe Blackmagic Design 2110 IP Mini IP to HDMI SFP is a compact converter for monitoring SMPTE 2110 IP video and audio on HDMI monitors, TVs, and projectors. Its small design allows it to be placed discreetly behind a display, making it useful for professional broadcast and AV installations.
The converter uses a standard 10G SFP optical fiber connection for long-distance IP video transmission. It supports SMPTE ST-2110 video and up to 16 channels of embedded IP audio, providing a reliable way to monitor professional IP-based video systems.
It also supports 3G, 6G, and 12G optical fiber SDI modules, providing compatibility with conventional SDI video workflows. HDMI output supports HD, Ultra HD, and 4K formats up to 2160p60, while PTP and NMOS support help integrate the converter into modern broadcast IP networks.
For professional signal conversion and distribution equipment, explore Systec's Signal Processing, Converters & Distribution collection.
FAQs
What is the Blackmagic 2110 IP Mini IP to HDMI SFP used for?
It converts SMPTE 2110 IP video and audio for monitoring on HDMI displays over long-distance optical fiber connections.
Does it support 10G optical fiber?
Yes. It has a 10G SFP optical fiber socket for SMPTE 2110 IP video and long-distance connections.
What video resolutions does it support?
It supports HD, Ultra HD, and 4K video formats up to 2160p60.
Can it work with SDI systems?
Yes. It supports 3G, 6G, and 12G optical fiber SDI modules for standard SDI video compatibility.
Does it include a power supply?
Yes. A 12V DC external power supply is included.
Specs
xSpecifications
| Product Type | SMPTE 2110 IP to HDMI Converter |
|---|---|
| HDMI Video Output | 1 |
| HDMI Audio Output | 8 channels embedded audio on SDI loop output |
| SMPTE ST-2110 IP Video Input | 1 x 10G Ethernet |
| SMPTE ST-2110 IP Audio Input | 16 channels embedded audio via 10G Ethernet |
| Optical Ethernet | 1 x 10Gb/s SFP optical fiber socket, supporting 10/100/1000/10G BASE-T |
| Computer Interface | 1 x USB-C 3.0 |
| HDMI HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60 |
| HDMI Ultra HD Video Standards | 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60 |
| HDMI 4K Video Standards | 4K DCI up to 60fps |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| SMPTE Compliance | SMPTE ST 2110-20, ST 2110-21, ST 2110-30, ST 2110-40 |
| PTP | IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2 |
| NMOS IS-04 | v1.3.2, peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver Capabilities |
| Codec | Blackmagic IP10 |
| Display Indicator | IP Input Lock LED |
| Power Supply | +12V DC external universal power supply |
| Operating Voltage | 12–16V |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
