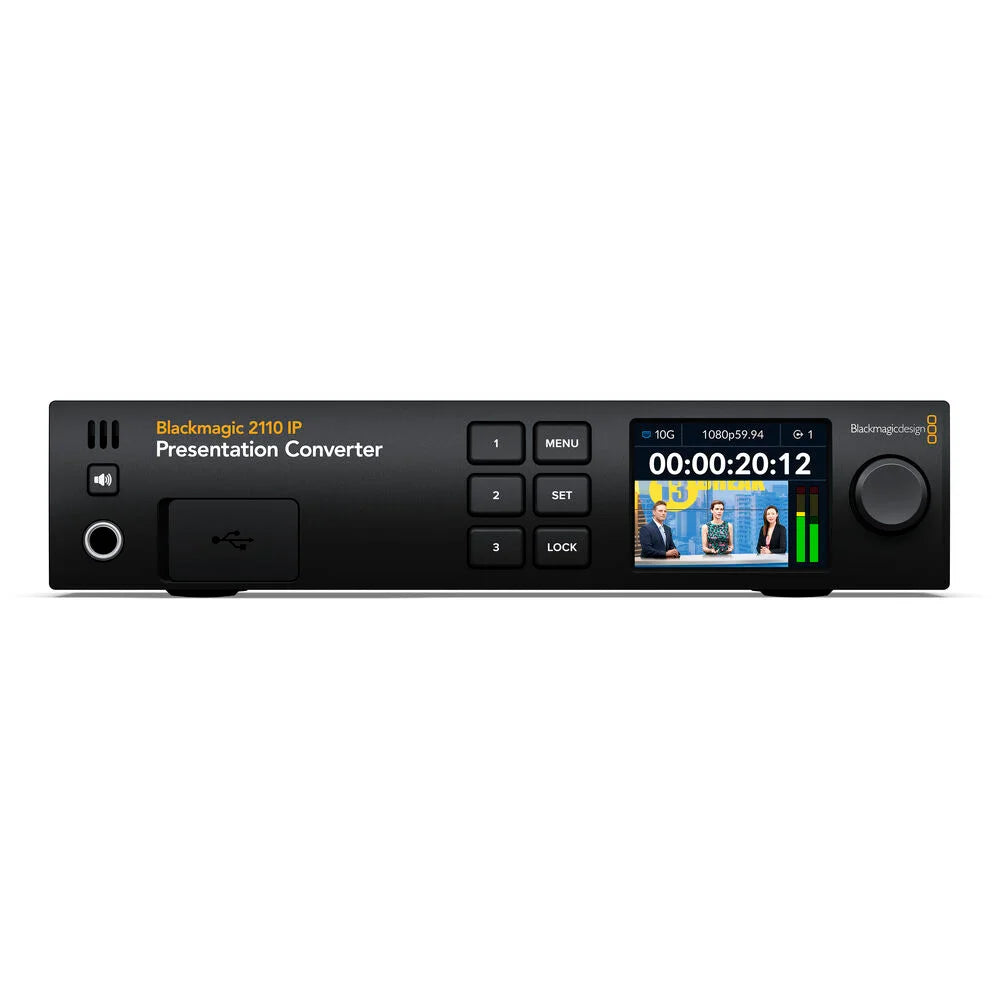

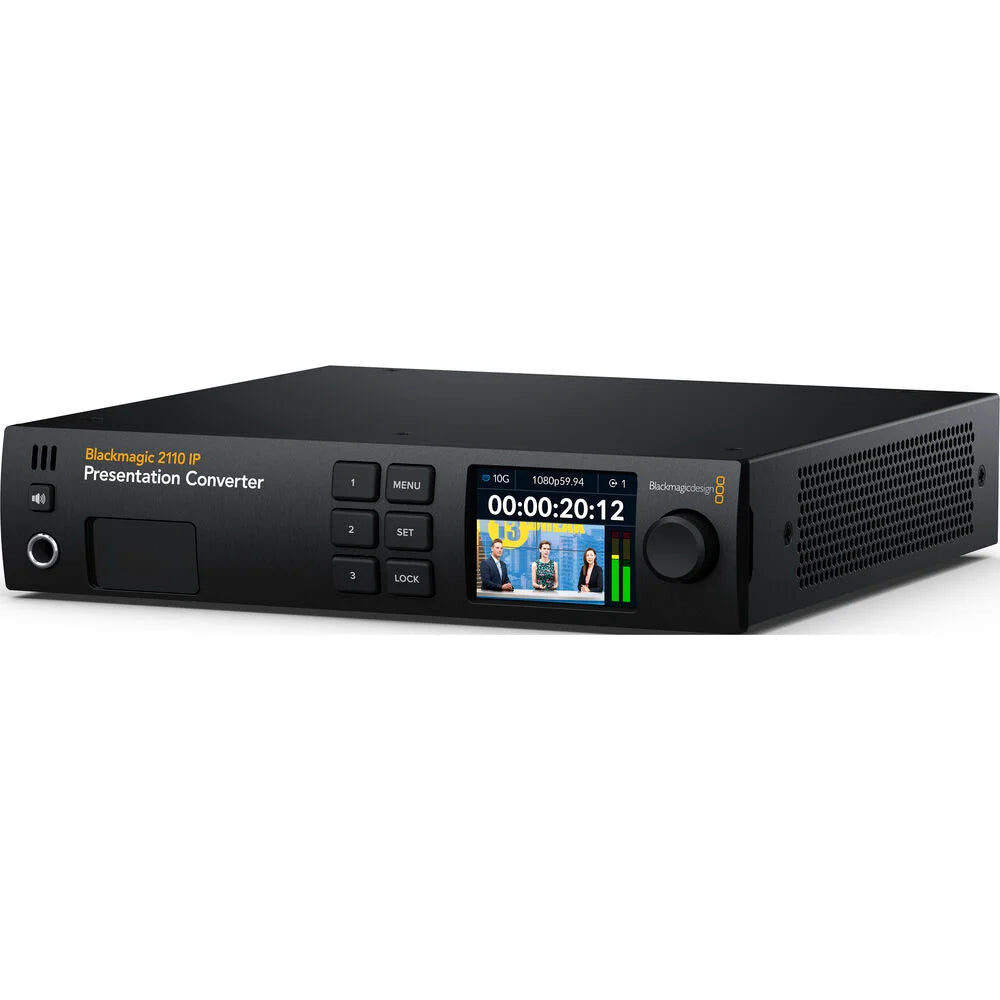

Blackmagic Design 2110 IP Presentation Converter
SKU: CONVNVIPH/PRESC
Key Features
- Convert 2110 IP Video for Presentations
- USB-C Vdeo and Power to Laptop
- HDMI I/O for Projectors, 12G-SDI Output
- 3-Pin XLR Mic/Line Input/Output
- Phantom Power in Mic Inputs
- PoE over 10G Ethernet
- 3,529.00 AED
- 3,529.00 AED
- Unit price
- per
Dimensions: 23 x 22 x 5 cm
Weight: 1.5 kg
Description
xThe Blackmagic Design 2110 IP Presentation Converter is designed for professional presentation and broadcast environments where laptops, projectors, microphones, and IP video need to work together. It combines USB-C, HDMI, SDI, audio, and 10G Ethernet connections in one compact converter.
Computers can connect through USB-C for video, while the rear USB-C port provides up to 45W charging. The HDMI 2.0 output can send the local video input or an SMPTE 2110 IP return feed to a projector or display. It also provides one SDI output with automatic format conversion.
For audio, the converter includes two XLR/TRS combination inputs with microphone and line-level support, +48V phantom power, balanced XLR outputs, and a headphone connection. Its 10G Ethernet connection supports SMPTE ST-2110 IP video and can power the converter, making it useful for modern IP-based presentation and broadcast workflows.
The built-in 2.2-inch color display and control panel make setup and monitoring simple. With PTP, NMOS, and SMPTE 2110 support, it fits professional AV systems, conference presentations, broadcast studios, corporate events, and IP video networks. For related equipment, explore Systec's Signal Processing, Converters & Distribution collection.
FAQs
What is the Blackmagic 2110 IP Presentation Converter used for?
It combines laptop, projector, microphone, audio, SDI, HDMI, and SMPTE 2110 IP connections for professional presentation and broadcast workflows.
Does it support SMPTE 2110?
Yes. It supports SMPTE ST-2110 IP video input and output through its 10G Ethernet connection.
Can it charge a laptop?
Yes. The rear USB-C connection provides up to 45W host charging.
What audio connections are included?
It has two XLR/TRS combination inputs, two balanced XLR outputs, and a 6.35mm headphone output.
Does it support 4K video?
Yes. HDMI supports Ultra HD and 4K formats up to 60fps, while SDI supports SD, HD, 2K, Ultra HD, and 4K formats.
Specs
xSpecifications

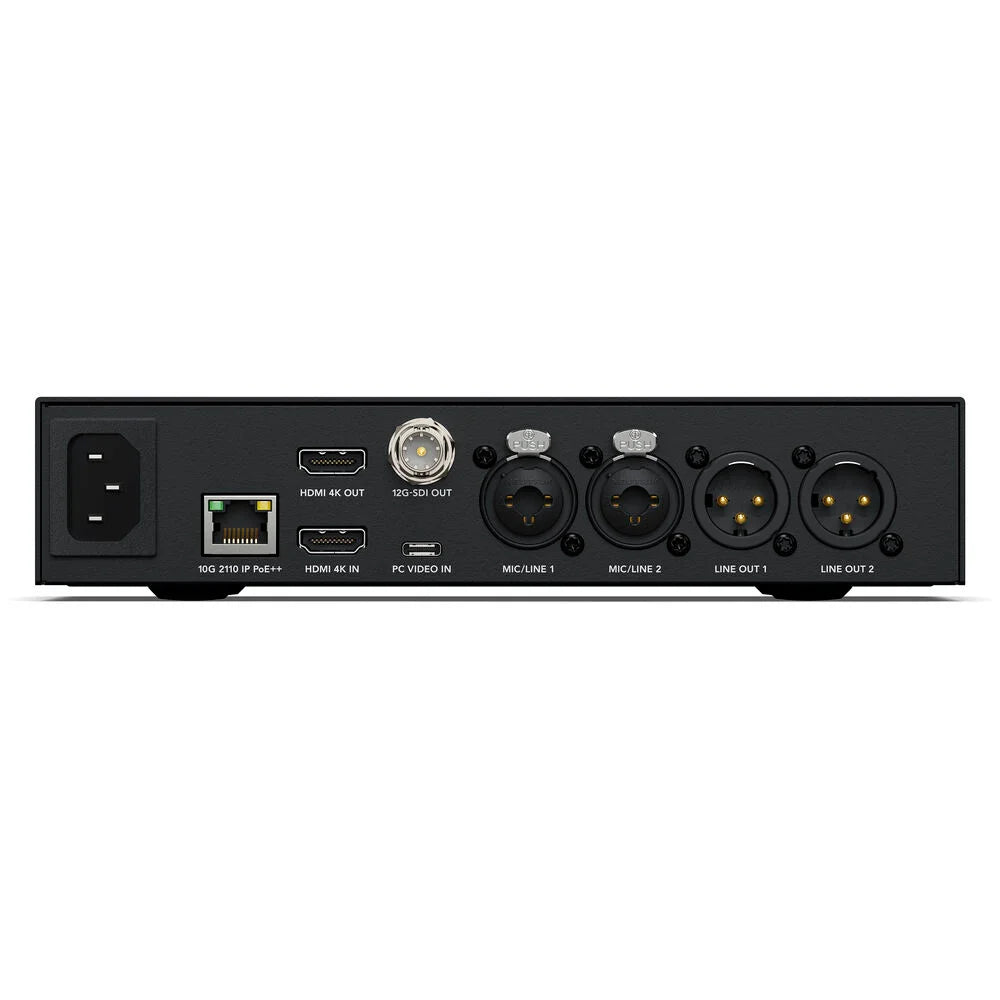

| PC Video Inputs | 1 x front USB-C, 1 x rear USB-C with 45W host charging |
|---|---|
| HDMI Video Input | 1 x HDMI 2.0 |
| HDMI Video Output | 1 x HDMI 2.0 |
| SDI Video Output | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| SMPTE ST-2110 IP Video Input | 1 x 10G Ethernet |
| SMPTE ST-2110 IP Video Output | 1 x 10G Ethernet |
| Analog Audio Inputs | 2 x 3-pin XLR/TRS 1/4-inch combination connectors |
| Analog Audio Outputs | 2 channels balanced audio via 3-pin XLR |
| Headphone Output | 1 x 6.35mm |
| SDI Audio Output | 16 channels embedded |
| HDMI Audio Input | 8 channels embedded |
| HDMI Audio Output | 8 channels embedded |
| USB | 2 x USB-C 3.1 Gen 1, up to 5Gb/s |
| IP Video Compliance | SMPTE 2110-20, 2110-21, 2110-30, 2110-40 |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2 |
| NMOS | IS-04 v1.3.2, IS-05 v1.1.2, BCP-002-01, BCP-004-01 |
| Control Panel | 3 buttons, spin knob and 2.2-inch color display |
| Power Supply | Internal 100–240V AC, 50/60Hz, IEC C14 |
| External Power | Locking 5.5mm barrel, +12V DC |
| Installation | One-third rack unit width, 1 rack unit height |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
