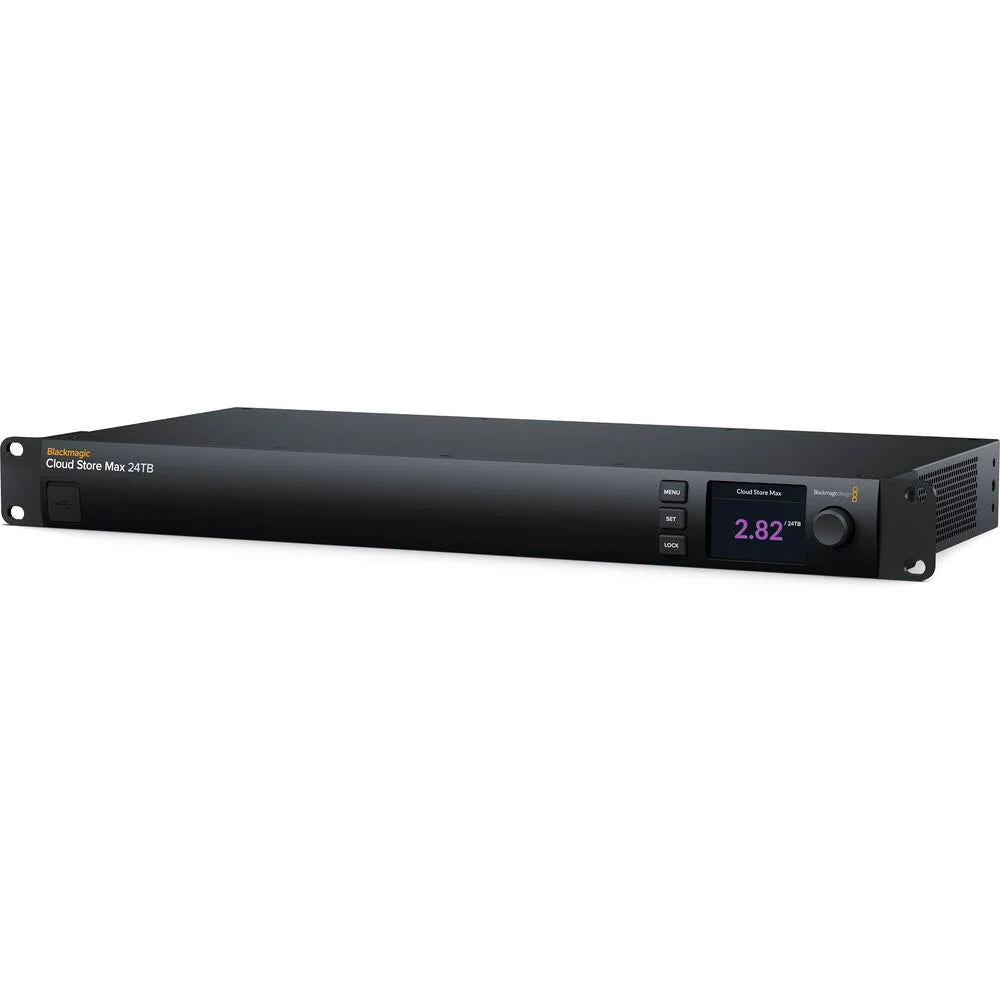

Blackmagic Design 24TB Cloud Store Max
SKU: DWCLDF/CLDMAX24
Key Features
- 24TB NVMe M.2 Storage
- Rackmount Design with Silent Cooling
- 12 Internal Flash Memory Cards
- 10GbE and 100GbE RJ45 Network Ports
- HDMI and SDI Monitoring Output
- USB-C-to-Ethernet Port
- Sync to Blackmagic Cloud/Dropbox/Drive
- 55,623.00 AED
- 55,623.00 AED
- Unit price
- per
Dimensions: 49 x 24 x 5 cm
Weight: 3 kg
Description
xThe Blackmagic Design Cloud Store Max 24TB is a high-performance network storage solution designed for professional media production, post-production, editing, color grading, audio, and VFX workflows. It provides 24TB of M.2 NVMe SSD storage with a 12-card RAID 0 flash memory core for fast access to large media files.

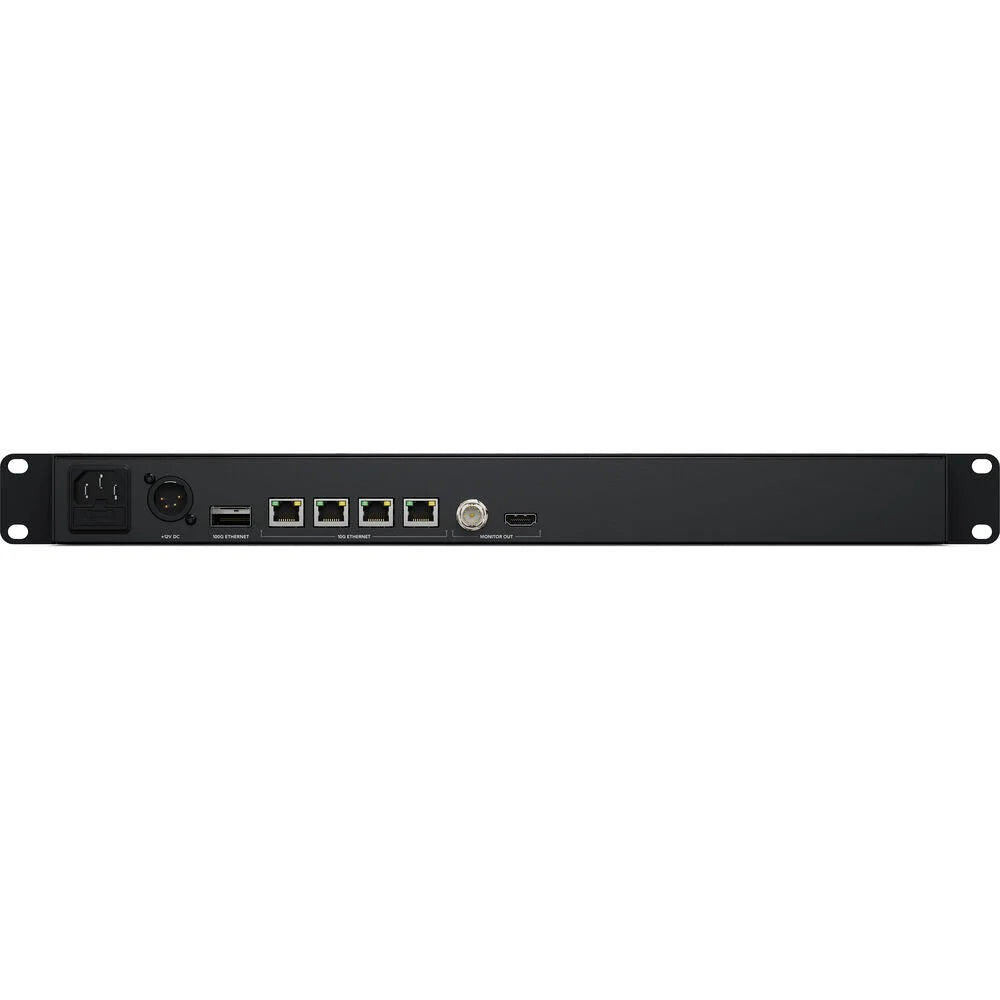

The Cloud Store Max features four 10G Ethernet ports and one 100G QSFP28 Ethernet connection, allowing multiple users to access and share files over a high-speed network. It supports NFS and SMB file sharing and can connect up to 200 computers, making it well suited for collaborative production environments.

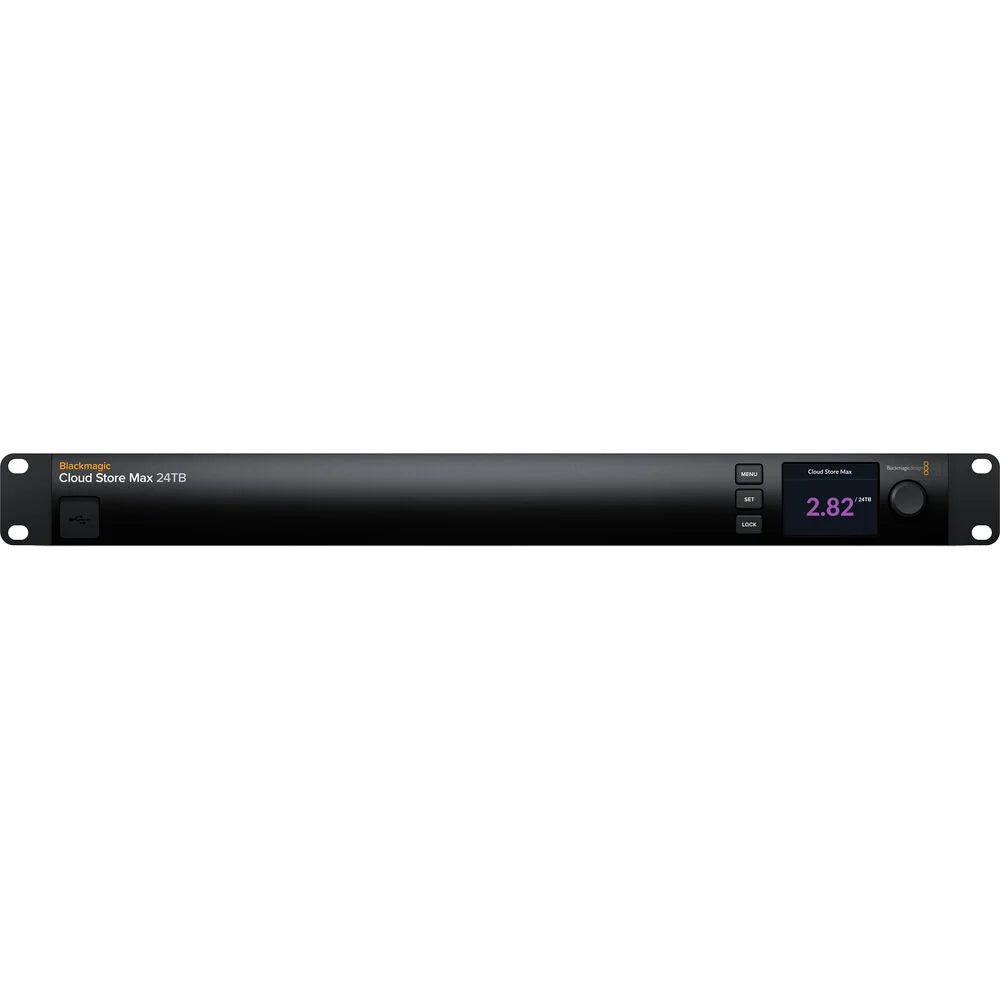

Blackmagic Cloud sync allows media files to be distributed globally, while the built-in SDI and HDMI monitor outputs provide storage, network, cloud-sync, and system status information. The front 2.2-inch LCD and control panel provide convenient access to settings, while USB-C or Ethernet can be used for configuration and software updates.
The compact 1RU design makes the Cloud Store Max 24TB suitable for professional rack-based installations. It also includes Blackmagic Cloud Setup Utility and Blackmagic Proxy Generator Lite for managing storage and proxy workflows. For more professional media storage solutions, explore Systec International's Media Storage collection.
FAQs
What is the storage capacity of the Blackmagic Cloud Store Max 24TB?
It provides 24TB of M.2 NVMe SSD storage with a 12-card RAID 0 flash memory core.
How many Ethernet connections does it have?
It features four 10G RJ45 Ethernet ports and one 100G QSFP28 Ethernet connection.
How many computers can connect to the Cloud Store Max?
It supports up to 200 computer connections through NFS and SMB file sharing.
Does the Cloud Store Max support Blackmagic Cloud sync?
Yes. It supports Amazon Web Services S3 synchronization for distributing files globally.
Is the Cloud Store Max suitable for rack installation?
Yes. The 24TB model uses a compact 1RU design for professional rack-based media workflows.
Specs
xSpecifications
| Product Type | High-Performance Network Storage |
|---|---|
| Total Storage Capacity | 24TB |
| Storage Type | M.2 NVMe SSD |
| Storage Configuration | 12-card RAID 0 flash memory core |
| 10G Ethernet Ports | 4 x RJ45 100/1000/10G BASE-T |
| 100G Ethernet Port | 1 x QSFP28 Ethernet 100G BASE-T |
| USB-C Port | 1 x USB 3.0, up to 5Gb/s, with Ethernet over USB |
| File Sharing Protocols | NFS, SMB |
| Maximum Computer Connections | 200 |
| Cloud Synchronization | Amazon Web Services S3 Sync |
| SDI Monitor Output | 1 |
| HDMI Monitor Output | 1 |
| SDI Monitor Standards | 1080p50, 1080p59.94, 1080p60 |
| HDMI Monitor Standards | 1080p50, 1080p59.94, 1080p60 |
| Front Panel Display | 2.2-inch LCD |
| Built-in Control Panel | 3 buttons, 2.2-inch color display and spin knob |
| Computer Interface | USB-C or Ethernet |
| Software Included | Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite |
| Operating Systems | macOS 15 Sequoia or later, macOS 26 Tahoe or later, Windows 10 64-bit, Windows 11 |
| Power Supply | Internal 100–240V AC 50/60Hz |
| Power Inputs | 1 x IEC C14 mains input, 1 x 4-pin XLR +12V DC input |
| Power Usage | 150W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
