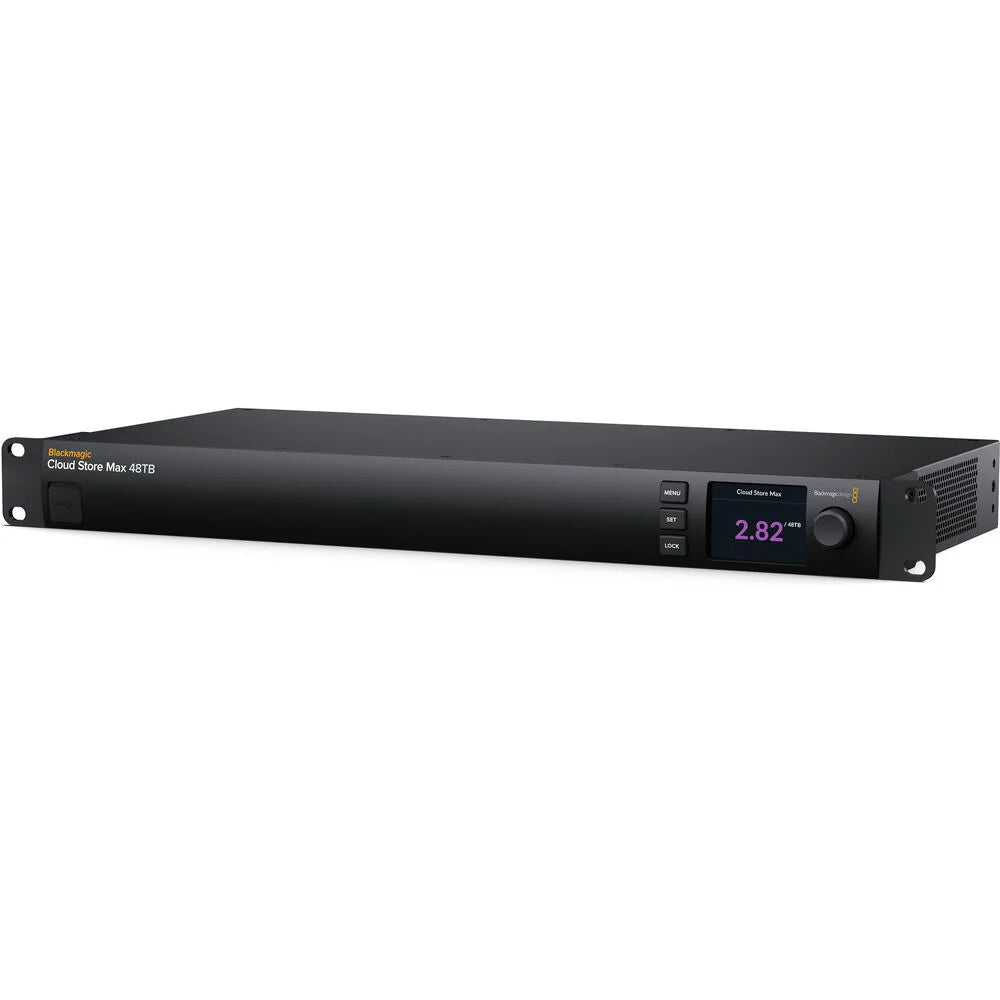

Blackmagic Design 48TB Cloud Store Max
SKU: DWCLDF/CLDMAX48
Key Features
- 24TB NVMe M.2 Storage
- Rackmount Design with Silent Cooling
- 12 Internal Flash Memory Cards
- 10GbE and 100GbE RJ45 Network Ports
- HDMI and SDI Monitoring Output
- USB-C-to-Ethernet Port
- Sync to Blackmagic Cloud/Dropbox/Drive
- 87,418.00 AED
- 87,418.00 AED
- Unit price
- per
Dimensions: 49 x 24 x 5 cm
Weight: 3 kg
Description
xThe Blackmagic Design Cloud Store Max 48TB is a high-performance network storage solution designed for professional film, television, post-production, and media workflows. It provides 48TB of M.2 NVMe SSD storage in a compact 1RU design, with a 12-card RAID 0 flash memory core for fast access to large media files.
With four 10G Ethernet ports and one 100G QSFP28 Ethernet connection, the Cloud Store Max is built for high-speed file sharing across professional networks. It supports NFS and SMB protocols and can connect up to 200 computers, making it suitable for production teams where multiple users need to work with large files at the same time.
The system also supports Amazon Web Services S3 cloud synchronization for distributing files globally. SDI and HDMI monitor outputs provide useful storage and network information, while the built-in 2.2-inch LCD and control panel make it easy to check storage status and configure settings. USB-C or Ethernet can be used for shared file access, configuration, and software updates.
For more professional media storage solutions, explore Systec International's Media Storage and SSDs collection.
FAQs
What is the storage capacity of the Cloud Store Max 48TB?
It provides 48TB of M.2 NVMe SSD storage with a 12-card RAID 0 flash memory core.
How many computers can connect to the Cloud Store Max?
The system supports up to 200 computer connections.
What network connections are available?
It has four 10G RJ45 Ethernet ports and one 100G QSFP28 Ethernet connection.
Does the Cloud Store Max support cloud synchronization?
Yes. It supports Amazon Web Services S3 synchronization for cloud-based file distribution.
Can the Cloud Store Max be rack mounted?
Yes. The Cloud Store Max uses a compact 1RU design for professional rack-based installations.
Specs
xSpecifications
| Product Type | High-Performance Network Storage |
|---|---|
| Total Storage Capacity | 48TB |
| Storage Type | M.2 NVMe SSD |
| Storage Configuration | 12-card RAID 0 flash memory core |
| 10G Ethernet Ports | 4 x RJ45 100/1000/10G BASE-T |
| 100G Ethernet | 1 x QSFP28 Ethernet 100G BASE-T |
| USB-C Port | 1 x USB 3.0, up to 5Gb/s, with Ethernet over USB |
| File Sharing Protocol | NFS, SMB |
| Maximum Computer Connections | 200 |
| Cloud Synchronization | Amazon Web Services S3 Sync |
| SDI Monitor Output | 1 |
| HDMI Monitor Output | 1 |
| SDI Monitor Standards | 1080p50, 1080p59.94, 1080p60 |
| HDMI Monitor Standards | 1080p50, 1080p59.94, 1080p60 |
| Front Panel Display | 2.2-inch LCD |
| Built-in Control Panel | 3 buttons, 2.2-inch color display and spin knob |
| Computer Interface | USB-C or Ethernet |
| Software Included | Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite |
| Power Supply | Internal 100–240V AC 50/60Hz with IEC C14 mains input; 4-pin XLR +12V DC input |
| Power Usage | 150W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
