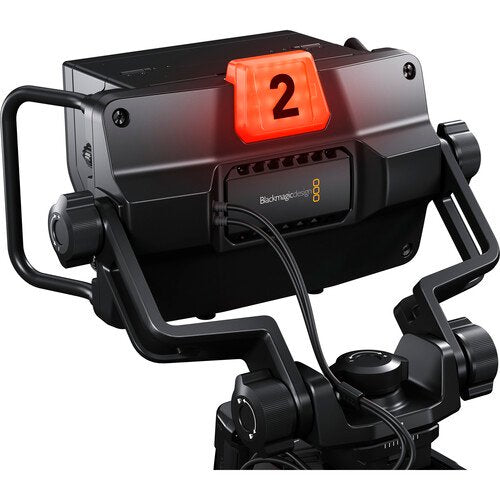

Blackmagic Design 7" URSA Studio Viewfinder G2
SKU: CINEURSANSVF2
- Designed for URSA G2/URSA Mini Cameras
- 7" 1920 x 1200 TFT LCD Screen
- 3G-SDI Connector to Camera
- 2000 cd/m² Brightness
- 4-Pin XLR Power, V-Lock Mount
- Rotary Dials, Customizable Buttons
- Detachable Sun Hood
- 6,274.00 AED
- 6,274.00 AED
- Unit price
- per
Dimensions: 36 x 31 x 20 cm
Weight: 3.7 kg
Description
xThe Blackmagic Design 7" URSA Studio Viewfinder G2 is a professional 7-inch monitor designed for URSA Broadcast G2, URSA Mini, and compatible Blackmagic cameras. Featuring a bright 1920 × 1200 TFT LCD display with 2000 nits brightness, it delivers excellent visibility for outdoor productions, live broadcasts, studio environments, and field shooting.
The viewfinder connects via 3G-SDI and displays essential camera information including frame guides, focus peaking, false color, tally, shutter speed, frame rate, battery level, white balance, and other metadata directly on screen. Its adjustable mounting system with integrated grab handles allows quick positioning for comfortable viewing during long production sessions.
Powered through a 4-pin XLR connection and supporting USB-C for firmware updates, the URSA Studio Viewfinder G2 is built for reliable professional workflows. It is an excellent upgrade for broadcasters, production companies, and filmmakers who require accurate monitoring during live and studio productions.
You can also explore Blackmagic Design cameras, broadcast equipment, and professional camera accessories from Systec International to complete your production setup.
Frequently Asked Questions
Which cameras are compatible with the URSA Studio Viewfinder G2?
The viewfinder is designed for Blackmagic URSA Broadcast G2, URSA Mini, and other compatible URSA camera systems.
Is the display suitable for outdoor use?
Yes. The 2000-nit LCD display provides excellent visibility in bright daylight and outdoor shooting conditions.
Does the viewfinder display camera information?
Yes. It supports camera metadata including focus peaking, frame guides, false color, tally, battery status, frame rate, shutter speed, and white balance through the SDI connection.
How is the viewfinder powered?
It is powered through a 4-pin XLR connection from a compatible camera or external power source.
Can the firmware be updated?
Yes. Firmware updates can be installed using the built-in USB-C port.
Specs
x| General | |
|---|---|
| Brand | Blackmagic Design |
| Model | URSA Studio Viewfinder |
| Display | |
| Panel Type | TFT LCD |
| Display Size | 7.0" (17.8 cm) |
| Screen Resolution | 1920 × 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | No |
| Maximum Brightness | 2000 nits |
| Pixel Density | 323 ppi |
| Image Controls | False Color, Focus Assist, Focus Peaking, Screen Markers |
| Inputs / Outputs | |
| Video Input | 1 × BNC (3G-SDI) |
| Power Input | 1 × 4-Pin XLR |
| Data Input | 1 × USB-C 2.0 |
| Supported Video Formats | |
| Video Format | 10-Bit 4:2:2 YUV over SDI |
| 1080p | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps |
| 1080i | 60, 59.94, 50 fps |
| 720p | 60, 59.94, 50 fps |
| Power | |
| Input Power | 12 VDC |
| Environmental | |
| Operating Conditions | 32°F to 72°F (0°C to 40°C), up to 90% humidity |
| Storage Conditions | -4°F to 140°F (-20°C to 60°C) |
| Mounting | |
| Accessory Mount | 1 × V-Lock (Rear) |
