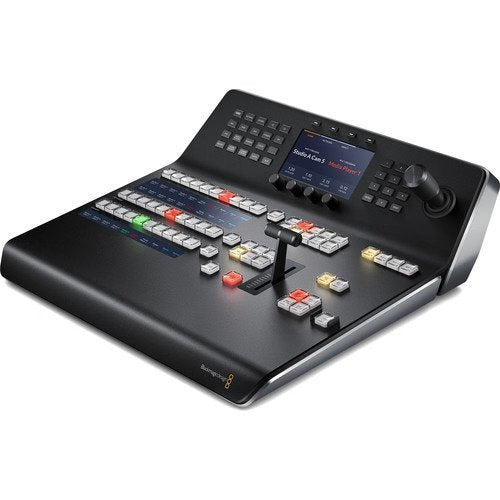

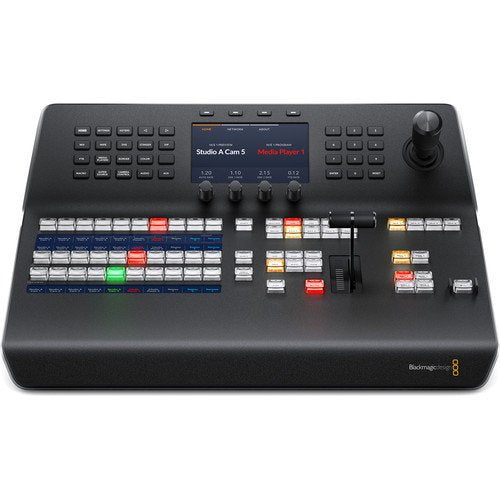

Blackmagic Design ATEM 1 M/E Advanced Panel 10
SKU: SWPANELADV1ME10
Key Features
- Control Panel for ATEM Switchers
- Large Info LCD with Rotary Encoders
- Soft-Touch Menu Buttons
- Programmable Color-Backlit Buttons
- LCD Scribble Strips for Buttons
- Weighted T-Bar
- Joystick for DVE and Camera Adjustment
- Control up to 20 Inputs
- 13,796.00 AED
- 13,796.00 AED
- Unit price
- per
Dimensions: 55.88 x 52.07 x 26.67 cm
Weight: 9.97 kg
Description
xThe Blackmagic Design ATEM 1 M/E Advanced Panel 10 is a professional hardware control panel designed to provide precise, tactile control over compatible Blackmagic Design ATEM production switchers. Built for broadcast studios, live events, television production, houses of worship, corporate AV, and streaming environments, it delivers faster operation and greater accuracy than software-based control.
Featuring 10 direct crosspoints, 20 shifted crosspoints, tri-color LED buttons, LCD scribble strips, a weighted T-bar fader, 3-axis joystick, and dedicated transition controls, the ATEM 1 M/E Advanced Panel enables operators to execute seamless live productions with confidence. The integrated LCD displays and programmable buttons provide quick access to switching functions, macros, and menu settings, improving workflow during demanding productions.
Dual Gigabit Ethernet ports ensure reliable network connectivity, while USB-C supports firmware updates. The panel can be powered via standard AC power or a 12V DC input, making it suitable for fixed installations, mobile production units, fly-away kits, and OB vans.
Whether you're managing live broadcasts, conferences, concerts, sports productions, educational events, or online streaming, the ATEM 1 M/E Advanced Panel 10 delivers professional-grade hardware control for fast and accurate live switching.
Browse our collection of Broadcast Lenses, PTZ Cameras, and Broadcast Accessories to build a complete live production workflow.
Frequently Asked Questions
What is the Blackmagic Design ATEM 1 M/E Advanced Panel 10 used for?
It is a professional hardware control panel designed to operate compatible Blackmagic Design ATEM production switchers during live broadcasts and productions.
Is this a video switcher?
No. The ATEM 1 M/E Advanced Panel 10 is a control surface and requires a compatible Blackmagic Design ATEM switcher.
Does it connect over Ethernet?
Yes. It features dual Gigabit Ethernet ports for reliable connection to compatible ATEM switchers.
Can it be used in broadcast studios?
Yes. It is designed for television studios, live production, corporate AV, houses of worship, educational facilities, and mobile production environments.
Does the panel include a T-bar and joystick?
Yes. It includes a weighted T-bar fader for manual transitions and a 3-axis joystick for PTZ camera and DVE control.
How is the panel powered?
It supports both 110–240V AC via an IEC power connection and 12V DC through a 4-pin XLR input for flexible installation options.
Specs
x| Specification | Details |
|---|---|
| Brand | Blackmagic Design |
| Model | ATEM 1 M/E Advanced Panel |
| Connections | |
| Ethernet | 2 × RJ45, 10/100/1000BASE-T |
| Firmware | 1 × USB-C |
| AC Power | 1 × IEC |
| DC Power | 1 × 4-Pin XLR, 12 VDC |
| Power | |
| Power Consumption | 45 W |
| Power Supply | 110-240 VAC Input |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | Up to 95% |
| Physical | |
| Weight | 12.7 lb / 5.7 kg |
| Packaging Information | |
| Package Weight | 22 lb |
| Box Dimensions (L × W × H) | 22 × 20.5 × 10.5" |
