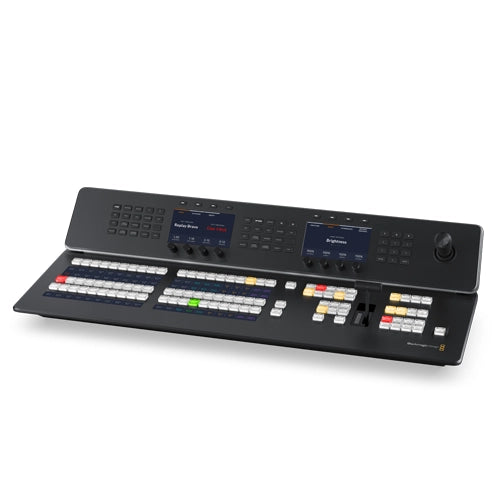

Blackmagic Design ATEM 1 M/E Advanced Panel 20
SKU: SWPANELADV1ME20
Key Features
- Control Panel for ATEM Switchers
- 20 Input Buttons
- 2 System Control LCDs
- 4 x Upstream & 4 x Downstream Keyers
- 1 x M/E Row
- Joystick for Precise DVE Control
- Ergonomically Designed T-Bar
- Single-Button Fade to Black
- Dedicated Preview Transition Button
- Color Backlit Buttons
- 16,284.00 AED
- 16,284.00 AED
- Unit price
- per
Dimensions: 73 x 32 x 15 cm
Weight: 9 kg
Description
xThe Blackmagic Design ATEM 1 M/E Advanced Panel 20 is a professional hardware control panel designed for fast and precise operation of compatible ATEM live production switchers. Its 1 M/E layout provides 20 direct crosspoint buttons and 40 shifted crosspoints, giving operators quick access to multiple sources during live productions.
The panel features tri-color LED crosspoint buttons with dynamic labels, dedicated source and destination buses, a preview transition button, and a weighted fader bar for smooth manual transitions. A 3-axis joystick provides hands-on control for DVE positioning and camera adjustments, while dedicated macro buttons make it easy to trigger frequently used commands.
Three independent system-control LCD displays with dedicated menu buttons provide quick access to switcher settings and functions. The panel also includes transport controls, a numeric keypad, and a built-in 4-port Gigabit Ethernet switch for connecting additional network devices and control equipment.
With USB-C firmware updates, Ethernet connectivity, and dual internal power supplies for redundancy, the ATEM 1 M/E Advanced Panel 20 is well suited to broadcast studios, live events, streaming productions, houses of worship, and other professional switching environments. For more professional live production control equipment, explore Systec International's Switchers & Controllers collection.
FAQs
What is the ATEM 1 M/E Advanced Panel 20 used for?
It is a professional hardware control panel for operating compatible ATEM live production switchers with physical controls for sources, transitions, macros, DVE and other switching functions.
How many crosspoints does the panel provide?
It provides 20 direct crosspoints and 40 shifted crosspoints, allowing operators to access up to 40 source selections.
Does the panel include a joystick?
Yes. It includes a professional 3-axis joystick for DVE and camera control.
How many LCD displays does it have?
The panel includes three independent system-control LCD displays with dedicated menu-control buttons.
Does it support redundant power?
Yes. It uses dual internal power supplies for redundant operation.
Specs
xSpecifications
| Product Type | Professional ATEM Hardware Control Panel |
|---|---|
| Mix Effects Rows | 1 |
| Direct Cross Points | 20 |
| Shifted Cross Points | 40 |
| Crosspoint Buttons | Tri-color LED |
| Source Select Bus | 1 |
| Destination Bus | 1 |
| Preview Transition | 1 |
| System Control LCD Displays | 3 |
| Menu Control Buttons | 3 x 20 |
| Macro Buttons | 30 |
| Transport Control Buttons | 8 |
| Fader Bar | 1 |
| 3-Axis Joystick | 1 |
| Numeric Keypad | 1 |
| Ethernet | 4 x 10/100/1000 BASE-T |
| Firmware Update | USB-C |
| Power Supply | 2 x Internal 100–240V AC |
| Redundant Power | Yes |
| Power Consumption | 80W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | Up to 95% |
| Warranty | 1 Year Limited Manufacturer's Warranty |
