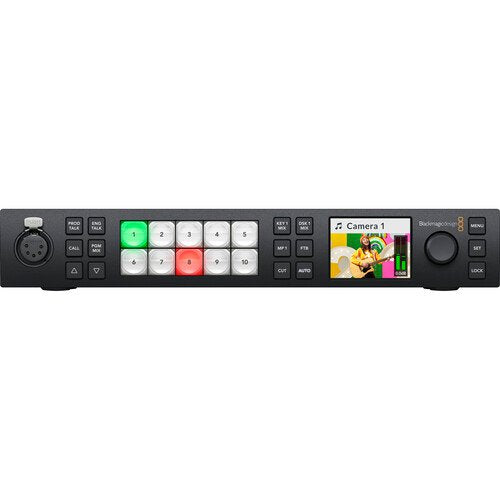

Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU)
SKU: SWATEMSCN2/1ME1/HD
Key Features
- Supports 3G/HD-SDI at 10-bit
- 10 x 3G-SDI inputs and 6 x 3G-SDI outputs
- Up to 16 multiview monitoring windows
- Webcam output via USB Type-C
- Frame rate and format converter per input
- 28-channel audio mixer
- 4 upstream keyers and 1 downstream keyer
- Chroma and luma keyers
- Color and pattern generators
- Hardware or software control for Mac and Windows
- 4,214.00 AED
- 4,214.00 AED
- Unit price
- per
Dimensions: 35 x 22 x 9 cm
Weight: 3 kg
Description
xThe Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher is a professional HD live production switcher built into a compact 1 RU chassis. It features 10 multi-rate 3G-SDI inputs and 6 independent 3G-SDI outputs, making it suitable for live events, broadcast studios, houses of worship, and other multi-camera productions.
Each input includes frame synchronization, frame rate conversion, and format conversion, allowing you to combine different HD sources without requiring genlock. The switcher also includes a built-in DVE, four upstream keyers, one downstream keyer, chroma and luma keying, and professional broadcast transitions.
The built-in multiview supports up to 16 monitoring windows, while the integrated Fairlight audio mixer provides 28 channels with EQ and dynamics processing. A USB-C connection provides webcam output at 720p or 1080p at the program frame rate.
The ATEM 1 M/E Constellation HD can be controlled through the front panel, Ethernet, or ATEM Software Control on compatible Mac and Windows computers. Its compact 1 RU design makes it a practical choice for professional live production systems where space and flexibility are important.
For more professional live production equipment, explore our Blackmagic Design collection and Switchers & Controllers range for additional broadcast and production solutions.
Frequently Asked Questions
What is the Blackmagic Design ATEM 1 M/E Constellation HD used for?
The ATEM 1 M/E Constellation HD is a professional live production switcher designed for multi-camera productions, live events, broadcast, streaming, and studio production.
How many SDI inputs does the ATEM 1 M/E Constellation HD have?
It features 10 multi-rate 3G-SDI inputs, supporting 720p, 1080i, and 1080p HD video standards.
How many SDI outputs does it provide?
The switcher provides 6 independent 3G-SDI outputs that can be configured for program, preview, auxiliary, or multiview output.
Does the ATEM 1 M/E Constellation HD support multiview?
Yes. It provides a configurable multiview with up to 16 monitoring windows for viewing sources, program, preview, media, keyers, and other production feeds.
Can the ATEM 1 M/E Constellation HD be controlled from a computer?
Yes. It can be controlled using ATEM Software Control on compatible Mac and Windows computers through an Ethernet connection.
Specs
x| Product Name | Blackmagic Design ATEM 1 M/E Constellation HD |
|---|---|
| Video Inputs | 10 x 3G-SDI |
| Video Outputs | 6 x 3G-SDI |
| SDI Rates | 1.5G, 3G |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video Input Re-Sync | All 10 inputs |
| Frame Rate and Format Converters | All 10 inputs |
| SDI Audio Input | 8 channels embedded on all SDI inputs |
| SDI Audio Output | 16 channels embedded on all SDI outputs |
| Multiview | Up to 16 windows via 3G-SDI |
| Webcam Output | USB-C, 720p or 1080p at program frame rate |
| Audio Mixer | 28-channel Fairlight audio mixer |
| Keyers | 4 upstream keyers and 1 downstream keyer |
| DVE | 1 independent DVE |
| Media Pool | Up to 20 stills and 200 frame animations |
| Reference Input | Tri-Sync or Black Burst |
| Talkback | 5-pin XLR and RJ45 |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | USB-C, USB 2.0 |
| Control | Ethernet and ATEM Software Control |
| Operating Systems | macOS and Windows |
| Power Supply | Internal 100-240V AC |
| Power Consumption | 36 W |
| Rack Installation | 2/3 rack width, 1 RU height |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90% non-condensing |
