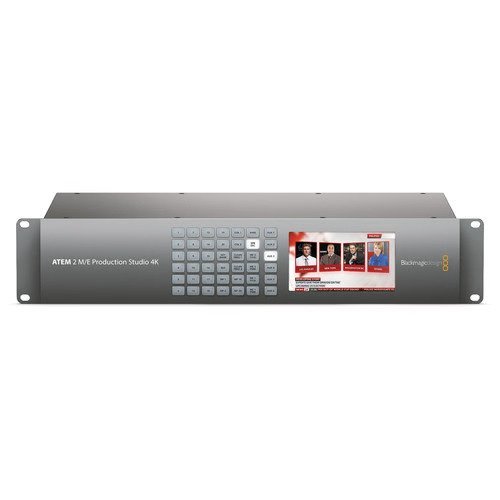

Blackmagic Design ATEM 2 M/E Production 4K Studio
SKU: SWATEMPSW2ME4K
Key Features
- Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
- Supports 4K Resolution Over SDI or HDMI
- 20 x 6G-SDI & 1 x HDMI Inputs
- Tri-Sync/Blackburst Ref. Sync Input
- 10 x Built-In Frame Synchronizers
- Two Independent Multi-View Outputs
- Program Outputs in SD/HD/4K HD
- 4 Upstream & 2 Downstream Keyers
- 22-Input Audio Mixer
- Hardware or Software Mac/PC Control
- 17,241.00 AED
- 17,241.00 AED
- Unit price
- per
Dimensions: 49.27 x 27.43 x 12.7 cm
Weight: 4.58 kg
Description
xThe Blackmagic Design ATEM 2 M/E Production Studio 4K is a professional live production switcher designed for multi-camera events, broadcast production, and live video workflows. It provides 20 active video inputs with built-in re-synchronizers, supporting SD, HD, and Ultra HD 4K formats for flexible source connectivity.

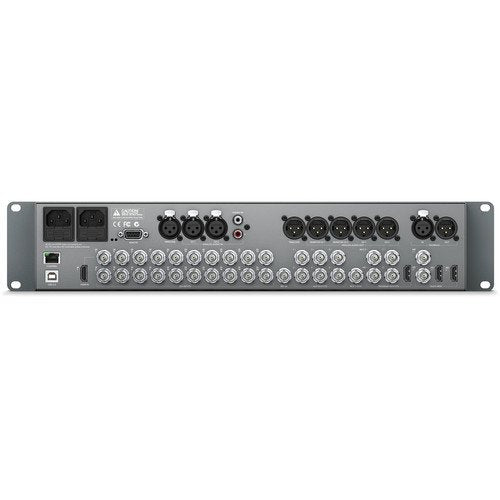

The switcher features 20 6G-SDI inputs plus an HDMI Type A input, along with program, preview, auxiliary, and multi-view outputs. It supports two multi-view systems, allowing operators to monitor multiple sources and production outputs during live switching.
For live production effects, the ATEM 2 M/E Production Studio 4K includes upstream and downstream keyers, chroma keying, DVE, SuperSource, customizable transitions, a media pool, and a built-in audio mixer. It also supports Ethernet control and can connect to compatible ATEM hardware control panels.
For more professional switchers and controllers, explore the Systec Switchers & Controllers collection.
FAQs
How many video inputs does the ATEM 2 M/E Production Studio 4K have?
It has 20 active video inputs, including 20 SDI inputs and an HDMI input that shares a channel with one SDI input.
Does it support 4K video?
Yes. It supports Ultra HD 4K up to 3840 × 2160, along with SD and HD formats. Its SDI connections support up to 6G-SDI.
Does it include built-in frame synchronizers?
Yes. All 20 inputs have built-in re-synchronization, allowing a wider range of video sources to be used.
What production effects are included?
It includes chroma and luma keying, upstream and downstream keyers, DVE, SuperSource, customizable transitions, and a media pool.
Can it be controlled over Ethernet?
Yes. The switcher supports 10/100/1000 Base-T Ethernet for direct or network-based control.
Specs
xSpecifications
| Product Type | Live production multi-camera switcher |
|---|---|
| Video Inputs | 20 active inputs |
| SDI Inputs | 20 x 10-bit SD/HD/Ultra HD 4K switchable |
| HDMI Input | 1 x HDMI Type A, 10-bit SD/HD/Ultra HD 4K switchable |
| SDI Rates | 270Mb, 1.5G, 3G, 6G-SDI |
| Video Input Re-Sync | Built-in re-synchronization on all 20 inputs |
| SDI Program Outputs | 3 x 10-bit SD/HD/Ultra HD 4K switchable |
| HDMI Program Output | 1 x HDMI Type A, 10-bit SD/HD/Ultra HD 4K switchable |
| Down-Converted SDI Output | 1 x 10-bit Ultra HD 4K to HD |
| SDI Preview Output | 1 x 10-bit SD/HD/Ultra HD 4K switchable |
| SDI Auxiliary Outputs | 6 x 10-bit SD/HD/Ultra HD 4K switchable |
| Multi-View Outputs | 2 x SDI and 2 x HDMI, usable concurrently |
| Audio Inputs | 2 x XLR and 2 x RCA |
| Audio Outputs | 2 x XLR program and 2 x XLR monitor |
| Timecode | 1 x XLR input and 1 x XLR output |
| Reference Input | Tri-Sync or Black Burst |
| Audio | 2-channel embedded SDI audio |
| Keyers | Upstream and downstream keyers with chroma/luma keying |
| DVE | Built-in DVE |
| SuperSource | Supported |
| Control Connection | 10/100/1000 Base-T Ethernet |
| Computer Interface | 1 x USB 2.0 |
| Power Supply | 2 x internal 110–240V AC power supplies |
| Power Consumption | 150W |
| Rack Installation | 2RU |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 12-month limited manufacturer warranty |
