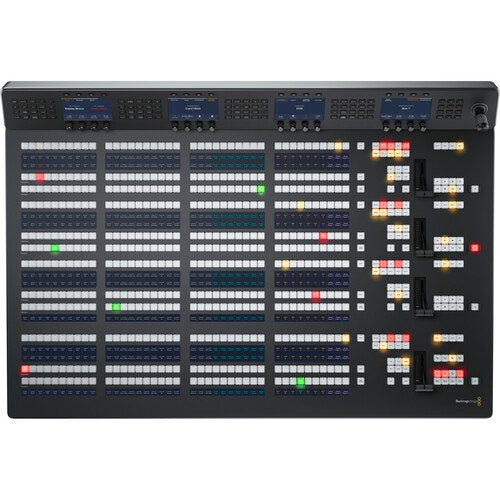

Blackmagic Design ATEM 4 M/E Advanced Panel 40
SKU: SWPANELADV4ME40
Key Features
- Panel for ATEM Constellation Switcher
- High-Quality Buttons / Knobs / Controls
- 4 M/E Rows, 40 Input Buttons Each Row
- 24 Independent, 4 System Control LCDs
- 4 x Gigabit Ethernet Loop Output
- Custom Labeling, Redundant Power Supply
- 20 On-Air Indicators, 40 Cross Points
- 3-Axis Joystick, Keypad, 4 Fader Bars
- USB Type-C Input for Firmware Updates
- 81,545.00 AED
- 81,545.00 AED
- Unit price
- per
Dimensions: 127.96 x 92.07 x 29.21 cm
Weight: 39.46 kg
Description
xThe Blackmagic Design ATEM 4 M/E Advanced Panel 40 is a professional hardware control panel designed for advanced live production with the ATEM 4 M/E Constellation switcher. It provides four M/E rows with 40 input buttons per row, giving operators extensive hands-on control over large multi-camera productions.
Each row includes a dedicated system control LCD, while 24 LCD displays provide customizable labels for input buttons. Tri-color LED crosspoints, dedicated macro buttons, source and destination buses, and on-air indicators make it easier to manage complex switching workflows.
The panel also includes four fader bars, a 3-axis joystick for DVE control, four preview transition controls, 24 transport control buttons, and a numeric keypad. Four independent Ethernet connections support control panel networking, while USB-C is provided for firmware updates.
The ATEM 4 M/E Advanced Panel 40 is designed for professional broadcast studios, live events, and demanding production environments. For more professional video switchers and control panels, explore Systec International’s Switchers & Controllers collection.
FAQs
What is the ATEM 4 M/E Advanced Panel 40 used for?
It provides hands-on control of compatible ATEM 4 M/E live production switchers, particularly the ATEM 4 M/E Constellation.
How many M/E rows does the panel have?
It has four M/E rows, with 40 input buttons available on each row.
How many LCD displays are included?
The panel has four system control LCDs and 24 LCDs for customizable button labels.
Does it have a DVE joystick?
Yes. It includes a 3-axis joystick for controlling DVE positioning.
How does the panel connect to the switcher?
It uses 10/100/1000 BaseT Ethernet, with four Ethernet connections and loop outputs for additional control panels or computers.
Specs
xSpecifications
| Product Type | Professional live production hardware control panel |
|---|---|
| Compatible Switcher | ATEM 4 M/E Constellation |
| M/E Rows | 4 |
| Direct Crosspoints | 40 |
| Shifted Crosspoints | 80 |
| Crosspoint Buttons | Tri-color LED |
| Crosspoint Labels | 10 rows with 24-character LCD |
| On-Air Indicators | 20 |
| System Control LCDs | 4 |
| Menu Control | 4 x 20 buttons |
| Dedicated Macro Buttons | 4 x 40 |
| Transport Control Buttons | 24 |
| Source Select Bus | 4 |
| Destination Bus | 4 |
| Fader Bars | 4 |
| DVE Joystick | 1 x 3-axis joystick |
| Preview Transition | 4 |
| DSK Transition Selectors | 4 x Auto, Cut, Tie/Preview |
| Numeric Keypad | 1 |
| Ethernet | 4 x 10/100/1000 BaseT with loop output |
| USB | 1 x USB-C for firmware updates |
| Power Supply | 2 x internal 100–240V AC |
| Redundant Power | Yes |
| Power Usage | 250W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | Up to 95% |
| Supported Operating Systems | macOS 14.0 Sonoma, macOS 15.0 Sequoia or later, Windows 10 and 11 |
| Software | ATEM Software Control Panel |
| Warranty | 1 Year Limited Manufacturer’s Warranty |
