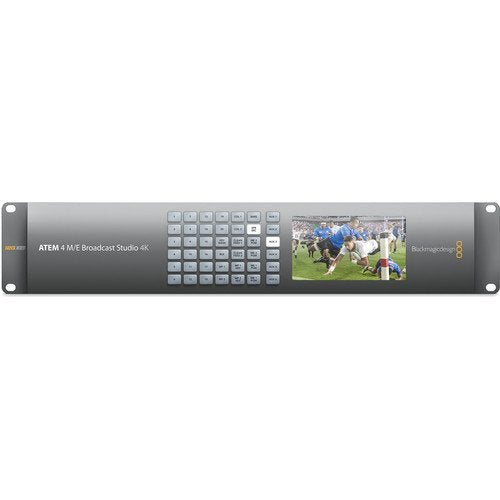

Blackmagic Design ATEM 4 M/E Broadcast Studio 4K
SKU: SWATEMRRW4ME4K
Key Features
- Supports HD/UltraHD 4K @ 10-bit
- 20 x 12G-SDI Inputs
- Tri-Sync/Blackburst Ref. Sync Input
- Built-In Frame Synchronizers
- Two Independent Multi-View Outputs
- Program Outputs in HD/4K HD
- 16 Upstream & 2 Downstream Keyers
- 24-Input x 2-Channel Audio Mixer
- Hardware or Software Mac/Windows Control
- 23,828.00 AED
- 23,828.00 AED
- Unit price
- per
Dimensions: 49.27 x 27.43 x 13.2 cm
Weight: 5.78 kg
Description
xThe Blackmagic Design ATEM 4 M/E Broadcast Studio 4K is a professional live production switcher designed for demanding HD and Ultra HD broadcast workflows. It provides 20 12G-SDI inputs with support for HD and Ultra HD formats up to 2160p59.94, making it suitable for large multi-camera productions.
The switcher features four independent M/E rows, advanced chroma keyers, a built-in 2D DVE, and a SuperSource compositing engine with four DVEs for picture-in-picture layouts. All 20 inputs include re-synchronization, helping simplify switching between different video sources.
For monitoring and routing, it provides two independent multi-view outputs, three 12G-SDI program outputs, six auxiliary outputs, and a down-converted HD program output. It also includes an integrated audio mixer, XLR and RCA audio connections, talkback, timecode, reference input, and Ethernet control.
The ATEM 4 M/E Broadcast Studio 4K is designed for broadcast studios, live events, concerts, streaming productions, and other complex multi-camera workflows. For more professional live production switchers and control equipment, explore Systec International’s Switchers & Controllers collection.
FAQs
How many video inputs does the ATEM 4 M/E Broadcast Studio 4K have?
It has 20 12G-SDI inputs supporting HD and Ultra HD 4K video formats.
How many M/E rows does it provide?
The switcher has four independent M/E rows for handling complex live production workflows.
Does it support 4K video?
Yes. It supports Ultra HD formats up to 2160p59.94 through its multi-rate 12G-SDI connections.
Does it include a DVE and SuperSource?
Yes. It includes a 2D DVE and a built-in SuperSource compositing engine with four picture-in-picture DVEs.
Does it have built-in multi-view outputs?
Yes. It provides two independent SDI multi-view outputs for production monitoring.
Specs
xSpecifications
| Product Type | Professional 4 M/E live production switcher |
|---|---|
| Video Inputs | 20 x 10-bit HD/Ultra HD 4K 12G-SDI |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| Video Outputs | 13 total |
| Auxiliary Outputs | 6 SDI outputs |
| Program Outputs | 3 x 10-bit HD/Ultra HD 4K switchable |
| Down-Converted Output | 1 x 10-bit HD program output from Ultra HD 4K |
| Preview Output | 1 x 10-bit HD/Ultra HD 4K switchable |
| Multi-View Outputs | 2 x SDI |
| Video Re-Synchronization | All 20 inputs |
| Video Standards | 720p, 1080p, 1080i, and Ultra HD 2160p |
| Maximum Ultra HD Format | 2160p59.94 |
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 2082 |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| Audio Inputs | 2 x XLR and 2 x RCA |
| Audio Outputs | 2 x XLR Program and 2 x XLR Monitor |
| Embedded Audio | 2-channel embedded audio on SDI outputs |
| Timecode | 1 x XLR input and 1 x XLR output |
| Reference Input | Tri-Sync or Black Burst |
| Talkback | 1 x XLR input and 1 x XLR output |
| Control Panel Connection | 10/100/1000 BaseT Ethernet |
| Computer Interface | 1 x USB 2.0 |
| Keying | 16 Advanced Chroma Keyers |
| DVE | Built-in 2D DVE |
| Compositing | SuperSource with 4 picture-in-picture DVEs |
| Audio Mixer | 24-input mixer with 2 channels per input |
| Power Supply | 100–240V AC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Warranty | 1 Year Limited Manufacturer's Warranty |
