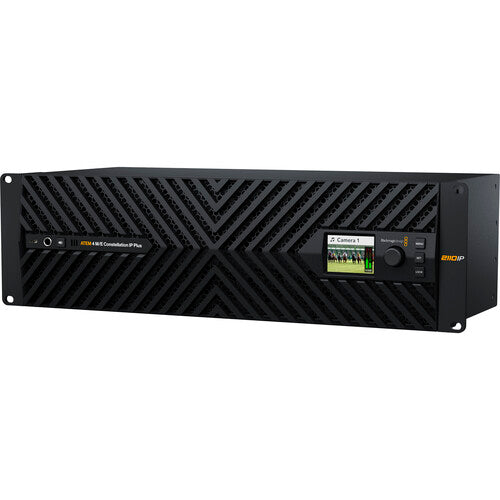

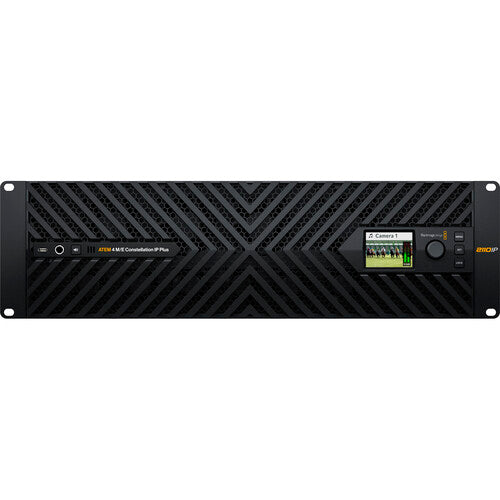

Blackmagic Design ATEM 4 M/E Constellation IP Plus Switcher
SKU: SWATEMSCN2/3ME4/IP/P
Key Features
- 64 IP Inputs, 52 Outputs with Multiview
- Standards Converter per Input
- Redundant 100G Fiber Ethernet Ports
- SMPTE 2110 Reference Ports
- Redundant Power, 4 Cooling Fans
- 16 Total Keyers, 12 Total DVEs
- 2 SuperSource Processors
- 53,562.00 AED
- 53,562.00 AED
- Unit price
- per
Description
xThe Blackmagic Design ATEM 4 M/E Constellation IP Plus Switcher is a professional broadcast switcher designed for large-scale live production, studio, and IP-based workflows. With 4 M/E layers, 64 IP video inputs and 52 outputs, it provides the connectivity and processing power needed for complex multi-camera productions.
The switcher supports UHD 4K processing at up to 60 fps with 10-bit 4:2:2 color processing. Its IP architecture uses QSFP28 fiber connections, making it suitable for high-bandwidth broadcast environments and modern IP production systems.
The ATEM 4 M/E Constellation IP Plus features 20 luma keyers, 4 DVEs, 4 transitions and 4 stingers, along with 4 downstream keyers and 21 pattern generators. It also provides 64-image graphics memory and 132-channel audio mixing for handling demanding live productions.
For monitoring, the switcher supports a 64-way multiview output, allowing operators to monitor multiple sources and outputs from a single system. It also includes SMPTE ST-2110 compliance, making it suitable for professional IP-based broadcast infrastructure.
Redundant 100G fiber connectivity and dual power inputs add reliability for critical live production environments. The 3 RU design makes it suitable for rack-mounted broadcast and production setups.
Whether you are building a broadcast studio, live production facility, OB setup, or IP-based video workflow, the Blackmagic Design ATEM 4 M/E Constellation IP Plus provides powerful switching, routing and production capabilities in a professional broadcast platform.
Looking for more professional video production equipment? Explore our Blackmagic Design products or browse our camera accessories for more solutions.
Frequently Asked Questions
What is the Blackmagic Design ATEM 4 M/E Constellation IP Plus?
It is a professional IP-based live production switcher designed for broadcast, studio and large-scale video production workflows.
How many video inputs does the ATEM 4 M/E Constellation IP Plus support?
It supports up to 64 IP video input sources through 16 QSFP28 connections.
How many outputs does it provide?
The switcher provides 52 video output channels through 16 QSFP28 connections.
Does the ATEM 4 M/E Constellation IP Plus support 4K?
Yes. It supports UHD 4K processing at up to 60 fps with 10-bit 4:2:2 color processing.
Does it support SMPTE ST-2110?
Yes. The ATEM 4 M/E Constellation IP Plus supports SMPTE ST-2110 for professional IP-based broadcast workflows.
How many M/E layers does it have?
The switcher features 4 M/E layers for advanced live production and compositing.
How many sources can be monitored?
It supports a 64-way multiview output for monitoring multiple video sources and outputs.
In the Box
x- Blackmagic Design ATEM 4 M/E Constellation IP Plus Switcher
- Limited 1-Year Manufacturer Warranty
Specs
x| Category | Specification |
|---|---|
| Available M/E Layers | 4 M/E |
| Effect Types | 20x Luma Key, 4x DVE, 4x Transition, 4x Stinger |
| Graphics Memory | 64 Images |
| Downstream Keys | 4x DVE |
| Generators | 21x Pattern |
| Audio Mixing | 132-Channel Mixing |
| Switching Type | Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 10-Bit 4:2:2 |
| Number of Video Input Sources | 64 |
| Video Inputs | 16x QSFP28 Female |
| Input Video Format | Fiber (10-Bit 4:2:2) |
| Video Output Channels | 52 |
| Video Outputs | 16x QSFP28 Female |
| Output Video Format | Fiber (10-Bit 4:2:2) |
| Multiview Output | 64-Way Multiview |

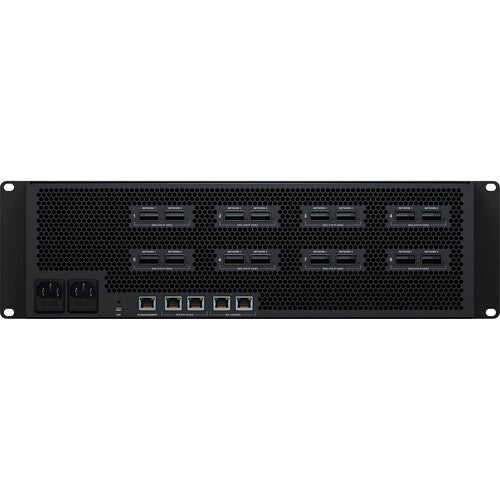

| Other I/O | 2x RJ45 Control Input/Output, 2x RJ45 Reference Input/Output, 1x RJ45 LAN Input/Output |
| Video Standard Compliance | SMPTE ST-2110 |
| OS Compatibility | macOS 15 or Later / Windows 11 or Later |
| Wireless | No |
| Power I/O | 2x IEC C14 Input |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Rack Form Factor | 3 RU |
| Dimensions | 19 x 8.66 x 5.22" / 48.3 x 22 x 13.26 cm |
